YH81L-MDP (1987)
Toyota Dyna100

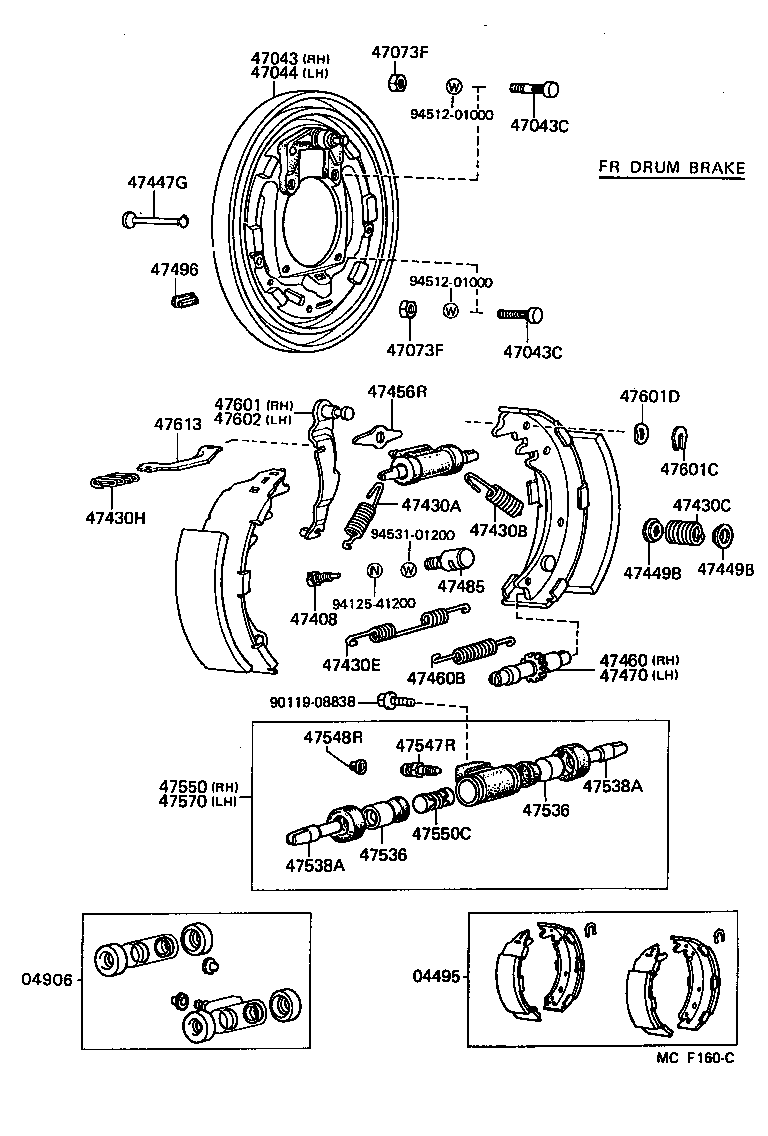

(8708- )GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-26020 |
LH80,YH81..GEN |
1 | ||
| 04495-35051 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35080 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 04906-31010 |
LH80,YH81 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35042 |
LH80,YH81..GEN |
1 | ||
| 47043-35051 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH80,YH81 *10-1.25PX37-18.5 |
4 | ||
| 90114-10016 |
LH80,YH81 *10-1.25PX41-18 |
4 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH80,YH81 *10-1.25PX37-18.5 |
4 | ||
| 90114-10016 |
LH80,YH81 *10-1.25PX41-18 |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35032 |
LH80,YH81..GEN |
1 | ||
| 47044-35041 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47073F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH80,YH81 |
8 | ||
| 47073F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH80,YH81 |
8 | ||
| 47408 - BOLT SUB-ASSY, RETRACTING SPRING CLAMP | ||||
| 47408-30020 |
LH80,YH81..GEN |
2 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
LH80,YH81..GEN |
2 | ||
| 90506-26331 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26394 |
LH80,YH81..GEN |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 90501-20225 |
LH80,YH81..GEN |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26002 |
LH80,YH81..GEN |
2 | ||
| 90506-16343 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
2 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-18012 |
LH80,YH81 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LH80,YH81 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
LH80,YH81..GEN |
8 | ||
| 47449-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
LH80,YH81..GEN |
8 | ||
| 47449-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
8 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-20010 |
LH80,YH81 |
2 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30011 |
LH80,YH81..GEN |
1 | ||
| 47405-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47460B - SPRING, TENSION(FOR REAR BRAKE ADJUSTER) | ||||
| 90506-23344 |
LH80,YH81..GEN |
2 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30011 |
LH80,YH81..GEN |
1 | ||
| 47406-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47485 - SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP | ||||
| 47485-35010 |
LH80,YH81..GEN |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
LH80,YH81 |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26080 |
LH80,YH81 |
4 | ||
| 47531-26070 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26080 |
LH80,YH81 |
4 | ||
| 47531-26070 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 47538A - LINK, WHEEL CYLINDER CONNECTING | ||||
| 47538-35010 |
LH80,YH81 |
4 | ||
| 47538A - LINK, WHEEL CYLINDER CONNECTING | ||||
| 47538-35010 |
LH80,YH81 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
LH80,YH81 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LH80,YH81 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-26090 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47550-26100 |
LH80,YH81 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
LH80,YH81 |
2 | ||
| 47509-20010 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-26100 |
LH80,YH81 |
1 | ||
| 47550-26090 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-35011 |
LH80,YH81 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LH80,YH81 T=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
LH80,YH81 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-35011 |
LH80,YH81 |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-35011 |
LH80,YH81 RH |
1 | ||
| 47614-35011 |
LH80,YH81 LH |
1 | ||
| Common parts | ||||
| 90119-08838 | ||||
| 94125-41200 | ||||
| 94512-01000 | ||||
| 94531-01200 | ||||

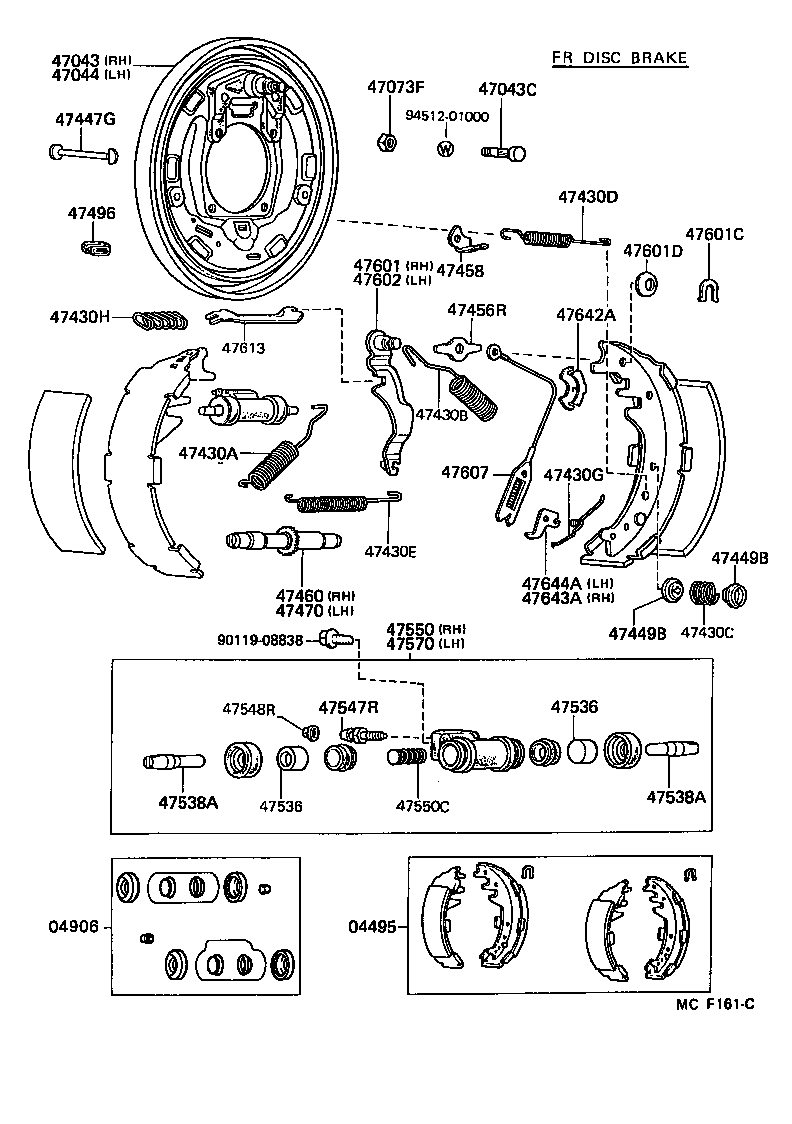

(8708- )ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-26020 |
LH80,YH81..GEN |
1 | ||
| 04495-35051 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35080 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 04906-31010 |
LH80,YH81 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35042 |
LH80,YH81..GEN |
1 | ||
| 47043-35051 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH80,YH81 *10-1.25PX37-18.5 |
4 | ||
| 90114-10016 |
LH80,YH81 *10-1.25PX41-18 |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35032 |
LH80,YH81..GEN |
1 | ||
| 47044-35041 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47073F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH80,YH81 |
8 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
LH80,YH81..GEN |
2 | ||
| 90506-26331 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26394 |
LH80,YH81..GEN |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 90501-20225 |
LH80,YH81..GEN |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12412 |
YH81;LH80..IV;LH80..EUR..CBU |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26002 |
LH80,YH81..GEN |
2 | ||
| 90506-16343 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90508-20261 |
YH81;LH80..IV;LH80..EUR..CBU RH |
1 | ||
| 90508-20262 |
YH81;LH80..IV;LH80..EUR..CBU LH |
1 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-18012 |
LH80,YH81 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LH80,YH81 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
LH80,YH81..GEN |
8 | ||
| 47449-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
LH80,YH81..GEN |
8 | ||
| 47449-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
8 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-20010 |
LH80,YH81 |
2 | ||
| 47458 - BRACKET, REAR BRAKE SHOE RETURN SPRING | ||||
| 47458-35020 |
YH81;LH80..IV;LH80..EUR..CBU LH |
1 | ||
| 47457-35020 |
YH81;LH80..IV;LH80..EUR..CBU RH |
1 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30011 |
LH80,YH81..GEN |
1 | ||
| 47405-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30011 |
LH80,YH81..GEN |
1 | ||
| 47406-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
LH80,YH81 |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26080 |
LH80,YH81 |
4 | ||
| 47531-26070 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26080 |
LH80,YH81 |
4 | ||
| 47531-26070 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 47538A - LINK, WHEEL CYLINDER CONNECTING | ||||
| 47538-35010 |
LH80,YH81 |
4 | ||
| 47538A - LINK, WHEEL CYLINDER CONNECTING | ||||
| 47538-35010 |
LH80,YH81 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
LH80,YH81 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LH80,YH81 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-26090 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47550-26100 |
LH80,YH81 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
LH80,YH81 |
2 | ||
| 47509-20010 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-26100 |
LH80,YH81 |
1 | ||
| 47550-26090 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-35011 |
LH80,YH81 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LH80,YH81 T=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
LH80,YH81 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-35011 |
LH80,YH81 |
1 | ||
| 47607 - CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST | ||||
| 47607-30010 |
YH81;LH80..IV;LH80..EUR..CBU |
2 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-35011 |
LH80,YH81 RH |
1 | ||
| 47614-35011 |
LH80,YH81 LH |
1 | ||
| 47642A - GUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE | ||||
| 47642-20010 |
YH81;LH80..IV;LH80..EUR..CBU |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-20011 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47643-20011 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| Common parts | ||||
| 90119-08838 | ||||
| 94512-01000 | ||||

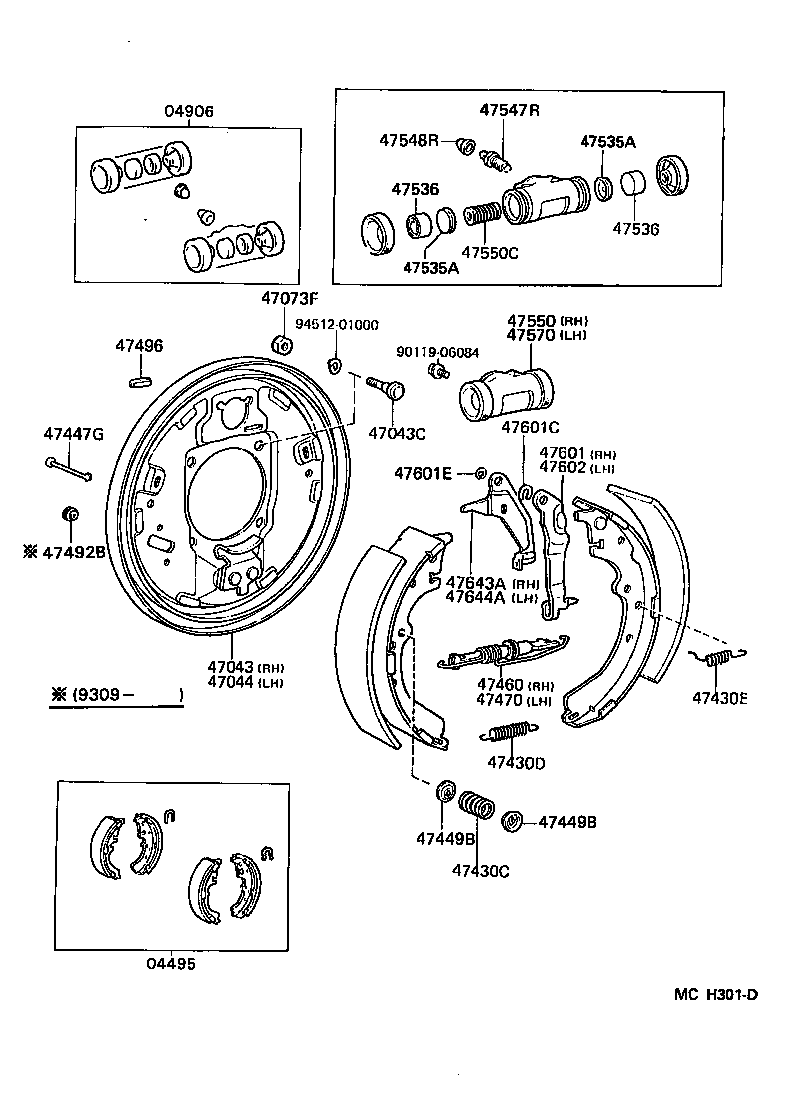

(8708- ) ; (8808- )EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-26020 |
LH80,YH81..GEN |
1 | ||
| 04495-35051 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35080 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 04906-31010 |
LH80,YH81 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35042 |
LH80,YH81..GEN |
1 | ||
| 47043-35051 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH80,YH81 *10-1.25PX37-18.5 |
4 | ||
| 90114-10016 |
LH80,YH81 *10-1.25PX41-18 |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35032 |
LH80,YH81..GEN |
1 | ||
| 47044-35041 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47073F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH80,YH81 |
8 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 90501-20225 |
LH80,YH81..GEN |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12412 |
YH81;LH80..IV;LH80..EUR..CBU |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26002 |
LH80,YH81..GEN |
2 | ||
| 90506-16343 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LH80,YH81 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
LH80,YH81..GEN |
8 | ||
| 47449-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
LH80,YH81..GEN |
8 | ||
| 47449-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30011 |
LH80,YH81..GEN |
1 | ||
| 47405-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30011 |
LH80,YH81..GEN |
1 | ||
| 47406-30020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
LH80,YH81 |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26080 |
LH80,YH81 |
4 | ||
| 47531-26070 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-26080 |
LH80,YH81 |
4 | ||
| 47531-26070 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
LH80,YH81 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LH80,YH81 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-26090 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47550-26100 |
LH80,YH81 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
LH80,YH81 |
2 | ||
| 47509-20010 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-26100 |
LH80,YH81 |
1 | ||
| 47550-26090 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-35011 |
LH80,YH81 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LH80,YH81 T=1.6 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-35011 |
LH80,YH81 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-20011 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47643-20011 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
