YH81L-MDBW3 (1987)
Toyota Dyna100
Production
Aug 1987
-
May 1995
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

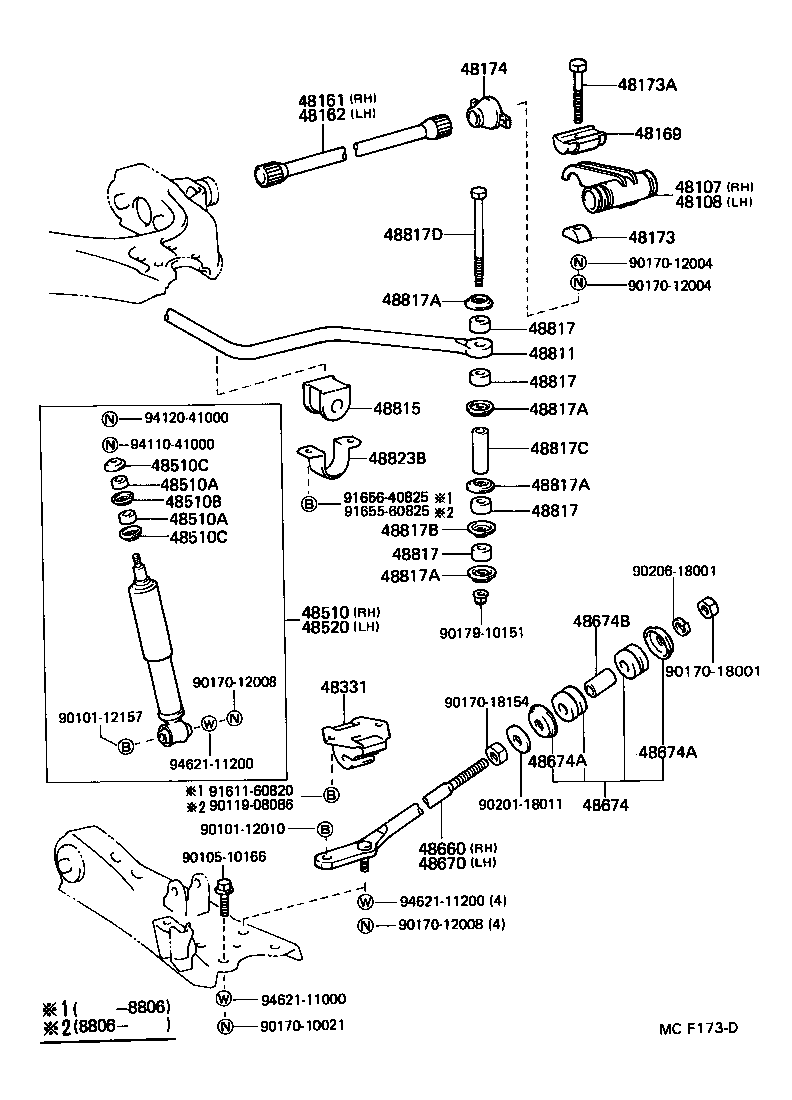

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-26020 |
LH80,YH81 |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-26020 |
LH80,YH81 |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-26060 |
LH80,YH81..EUR |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-26060 |
LH80,YH81..EUR |
1 | ||
| 48169 - SWIVEL, ANCHOR ARM | ||||
| 48169-26020 |
LH80,YH81 |
2 | ||
| 48173 - SEAT, ANCHOR ARM ADJUSTER | ||||
| 48173-27010 |
LH80,YH81 |
2 | ||
| 48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) | ||||
| 90101-12104 |
LH80,YH81 |
2 | ||
| 90101-12138 |
LH80,YH81 |
2 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48174-26010 |
LH80,YH81 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-26030 |
LH80,YH81..EUR |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29365 |
LH80,YH81..EUR MARK 48511-26090 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LH80,YH81 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LH80,YH81 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
LH80,YH81 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LH80,YH81 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LH80,YH81 |
4 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29365 |
LH80,YH81..EUR MARK 48511-26090 |
1 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-26011 |
LH80,YH81 |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-26011 |
LH80,YH81 |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-26010 |
LH80,YH81 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02062 |
LH80,YH81 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02062 |
LH80,YH81 |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-18005 |
LH80,YH81 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-26050 |
LH80,YH81..EUR |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-26040 |
LH80,YH81..EUR |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LH80,YH81 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LH80,YH81 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LH80,YH81 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LH80,YH81 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LH80,YH81 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LH80,YH81 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LH80,YH81 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LH80,YH81 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02005 |
LH80,YH81 |
2 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90440-14004 |
LH80,YH81 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 90101-10090 |
LH80,YH81 |
2 | ||
| 48823B - COVER, FRONT STABILIZER BRACKET | ||||
| 48823-26050 |
LH80,YH81 |
2 | ||
| Common parts | ||||
| 90101-12010 | ||||
| 90101-12157 | ||||
| 90105-10166 | ||||
| 90119-08086 | ||||
| 90170-10021 | ||||
| 90170-12004 | ||||
| 90170-12008 | ||||
| 90170-18001 | ||||
| 90170-18154 | ||||
| 90179-10151 | ||||
| 90201-18011 | ||||
| 90206-18001 | ||||
| 91611-60820 | ||||
| 91655-60825 | ||||
| 91656-40825 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94621-11000 | ||||
| 94621-11200 | ||||
