YH81L-MDBW3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )T3

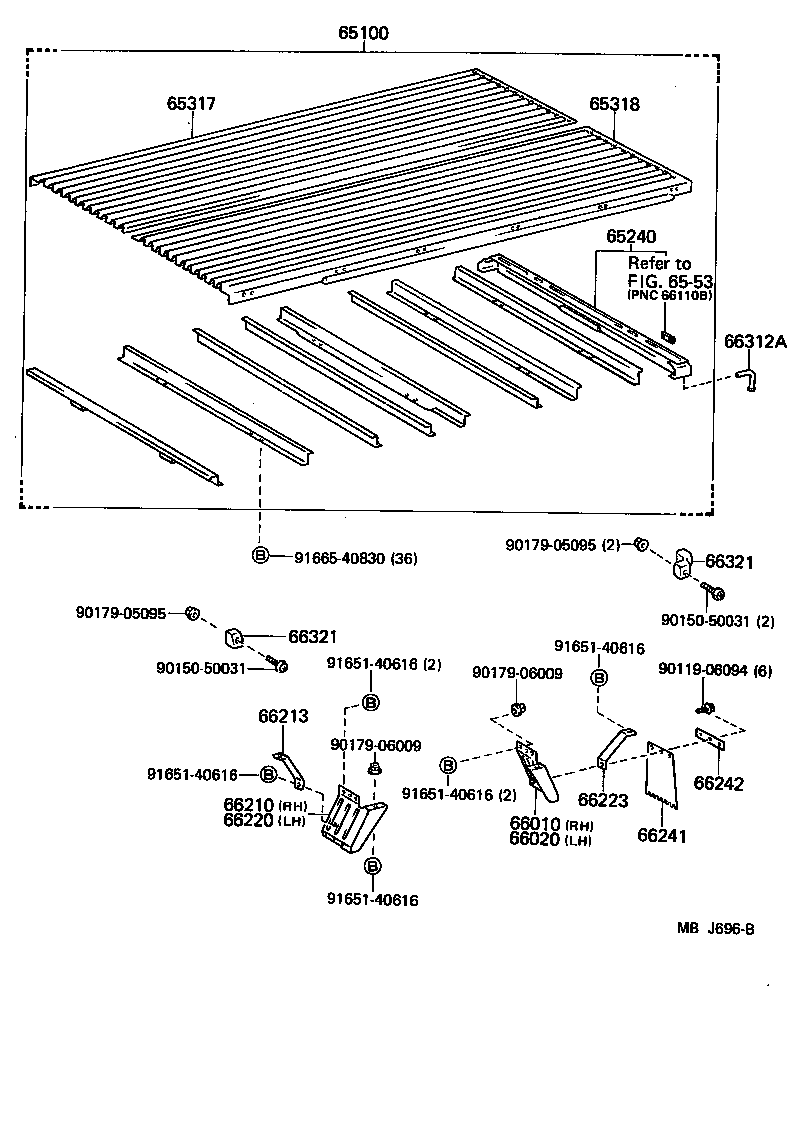

Click highlighted areas on diagram

diagram 65100 65240 65317 65318 6553 6553 66010 66020 66210 66213 66220 66223 66241 66242 66312A 66321 66321 9011906094 9015050031 9015050031 9017905095 9017905095 9017906009 9017906009 9165140616 9165140616 9165140616 9165140616 9165140616 9166540830
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-95A16

LH80,YH8#..T3..(EUR,GEN)

 1
65100-95A14

LH80,YH8#..T3..(EUR,GEN)

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95A06

LH80,YH8#..T3..(EUR,GEN)

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95041

LH80,YH8#..T3..(EUR,GEN)

 1
65317-95A02

LH80,YH8#..T3..(EUR,GEN)

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95039

LH80,YH8#..T3..(EUR,GEN)

 1
65318-95A02

LH80,YH8#..T3..(EUR,GEN)

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66210-95A02

LH80,YH8#..T3..(EUR,GEN)

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66220-95A02

LH80,YH8#..T3..(EUR,GEN)

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66010-95A02

LH80,YH8#..T3..(EUR,GEN)

 1
66213 - STAY, REAR FENDER FRONT PLATE
66235-95A00

LH80,YH8#..T3..(EUR,GEN)

 2
66220 - FENDER ASSY, REAR BODY, FRONT LH
66020-95A02

LH80,YH8#..T3..(EUR,GEN)

 1
66223 - STAY, REAR FENDER REAR PLATE
66236-95A00

LH80,YH8#..T3..(EUR,GEN)

 2
66241 - MUDGUARD, REAR
66241-95600

LH80,YH8#

 2
66242 - PLATE, REAR MUDGUARD SET RETAINER
66242-95012

LH80,YH8#

 2
66312A - HOOK, ROPE, NO.2
66312-95A00

LH80,YH8#..T3..(EUR,GEN)

 1
66321 - BUMPER, GATE RUBBER
66321-95017

LH80,YH8#..T3..(EUR,GEN)

RR

 2
66331-95010

LH80,YH8#..T3..(EUR,GEN)

FR

 2
66321 - BUMPER, GATE RUBBER
66321-95017

LH80,YH8#..T3..(EUR,GEN)

RR

 2
66331-95010

LH80,YH8#..T3..(EUR,GEN)

FR

 2
Common parts
90119-06094
90150-50031
90179-05095
90179-06009
91651-40616
91665-40830
Linked diagrams
6553
