YH81L-MDBW (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )T3

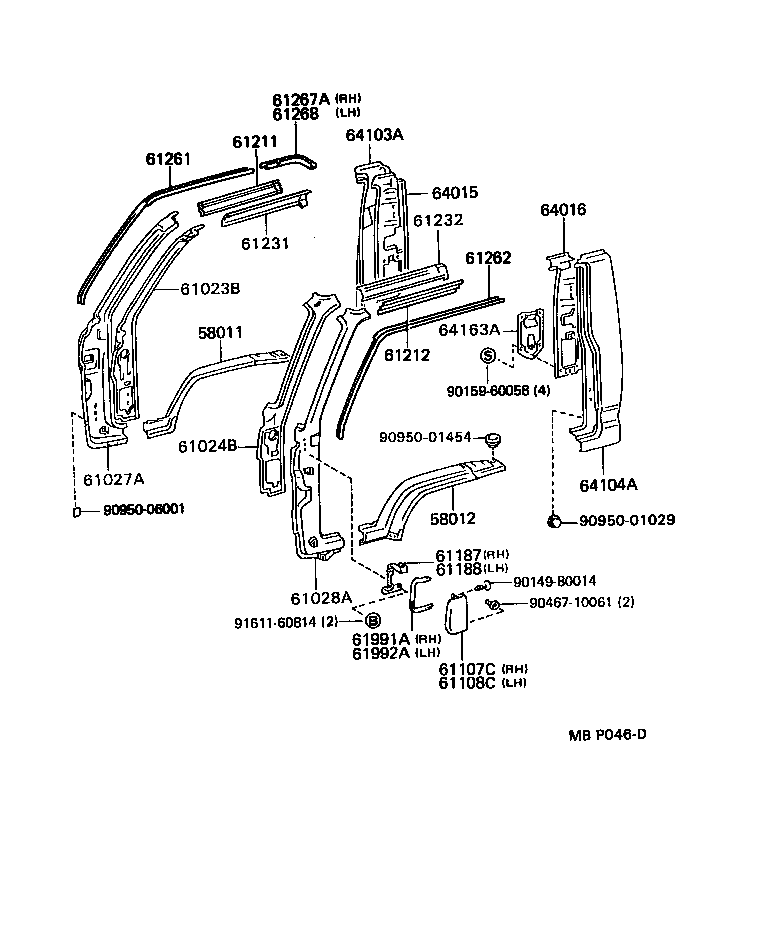

Click highlighted areas on diagram

diagram 58011 58012 61023B 61024B 61027A 61028A 61107C 61108C 61187 61188 61211 61212 61231 61232 61261 61262 61267A 61268 61991A 61992A 64015 64016 64103A 64104A 64163A 9014980014 9015960058 9046710061 9095001029 9095001454 9095006001 9161160814
Part # Description Qty Price
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58011-95011

LH80,YH81..T3

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58012-95012

LH80,YH81..T3

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95401

LH80,YH81..LHD

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95401

LH80,YH81..LHD

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95401

LH80,YH81

 1
61027-37020

LH80,YH81

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95401

LH80,YH81..EUR

 1
61028-37040

LH80,YH81..EUR

 1
61107C - COVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH
61107-95415

YH81..T3

 1
61108C - COVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH
61108-95416

LH80..ARL,EUR;YH81..LHD..TW;YH81..LHD..T3..GEN;YH81..T3..(ARL,EUR)

 1
61187 - BRACKET, FRONT PILLAR DOOR HINGE COVER, RH
61187-95400

YH81..T3

 1
61188 - BRACKET, FRONT PILLAR DOOR HINGE COVER, LH
61188-95400

LH80..ARL,EUR;YH81..LHD..TW;YH81..LHD..T3..GEN;YH81..T3..(ARL,EUR)

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95403

LH80,YH81..T3

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95403

LH80,YH81..T3

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95406

LH80,YH81..LHD..T3

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95405

LH80,YH81..LHD..T3

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95407

LH80,YH81

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95407

LH80,YH81

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-95400

LH80,YH81..T3

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-95400

LH80,YH81..T3

 1
61991A - PROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH
61991-95400

YH81..T3

 1
61991-37010

LH80;YH81..RHD;YH81..EUR

 1
61992A - PROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH
61992-95400

LH80..ARL,EUR;YH81..LHD..TW;YH81..LHD..T3..GEN;YH81..T3..(ARL,EUR)

 1
61992-37010

YH81..LHD..GEN;LH80,YH81..ARL,EUR

 1
64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH
64015-95401

LH80,YH81..T3..(ARL,EUR)

 1
64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH
64016-95401

LH80,YH81..T3..(ARL,EUR)

 1
64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH
64103-95408

LH80,YH81..T3..(ARL,EUR)

 1
64103-95403

LH80,YH81..T3..(ARL,EUR)

 1
64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH
64104-95410

LH80,YH81..T3..(ARL,EUR)

 1
64104-95403

LH80,YH81..T3..(ARL,EUR)

 1
64163A - COVER, BACK CORNER, INNER
64163-95404

LH80,YH81..ARL,EUR

 2
64163-9541106

YH81..EUR;LH80..TW..IV

W/O(FRONT SEAT BELT),BROWN,TRIM4#

 2
64163-95403

LH80,YH81..EUR

W/O(FRONT SEAT BELT)

 2
64163-9541006

LH80,YH81..ARL,EUR

BROWN,TRIM4#

 2
64163-95411B0

YH81..EUR;LH80..TW..IV

W/O(FRONT SEAT BELT),GRAY,TRIM1#

 2
64163-9541013

LH80,YH81..ARL,EUR

GRAY,TRIM1#

 2
Common parts
90149-80014
90159-60058
90467-10061
90950-01029
90950-01454
90950-06001
91611-60814
