YH81L-MDBW (1987)
Toyota Dyna100
ILLUST NO. 1 OF 2(8708- )2Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-71120 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17700-71120 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17700-71080 |
2Y..YH81..EUR |
1 | ||
| 17700-71080 |
2Y..YH81..EUR |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2Y..YH81 |
1 | ||
| 90175-08008 |
2Y..YH81 |
1 | ||
| 90175-08008 |
2Y..YH81 NO.2 |
1 | ||
| 90175-08008 |
2Y..YH81 NO.2 |
1 | ||
| 90175-06003 |
2Y..YH81 NO.1 |
1 | ||
| 90175-06003 |
2Y..YH81 NO.1 |
1 | ||
| 90175-08008 |
2Y..YH81 |
1 | ||
| 90175-08008 |
2Y..YH81 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-54200 |
2Y..YH81 |
1 | ||
| 17701-54200 |
2Y..YH81 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-71070 |
2Y..YH81..EUR |
1 | ||
| 17705-71070 |
2Y..YH81..EUR |
1 | ||
| 17705-71050 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17705-71050 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2Y..YH81 |
1 | ||
| 90175-06003 |
2Y..YH81 |
1 | ||
| 90175-06003 |
2Y..YH81 |
1 | ||
| 90175-06003 |
2Y..YH81 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31060 |
2Y..YH81..EUR |
1 | ||
| 17801-31060 |
2Y..YH81..EUR |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-54010 |
2Y..YH81 |
1 | ||
| 17807-54010 |
2Y..YH81 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
2Y..YH81 |
2 | ||
| 17841-54010 |
2Y..YH81 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
2Y..YH81 |
2 | ||
| 17841-54010 |
2Y..YH81 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
2Y..YH81 |
1 | ||
| 17845-54010 |
2Y..YH81 |
1 | ||
| Common parts | ||||
| 91651-60820 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

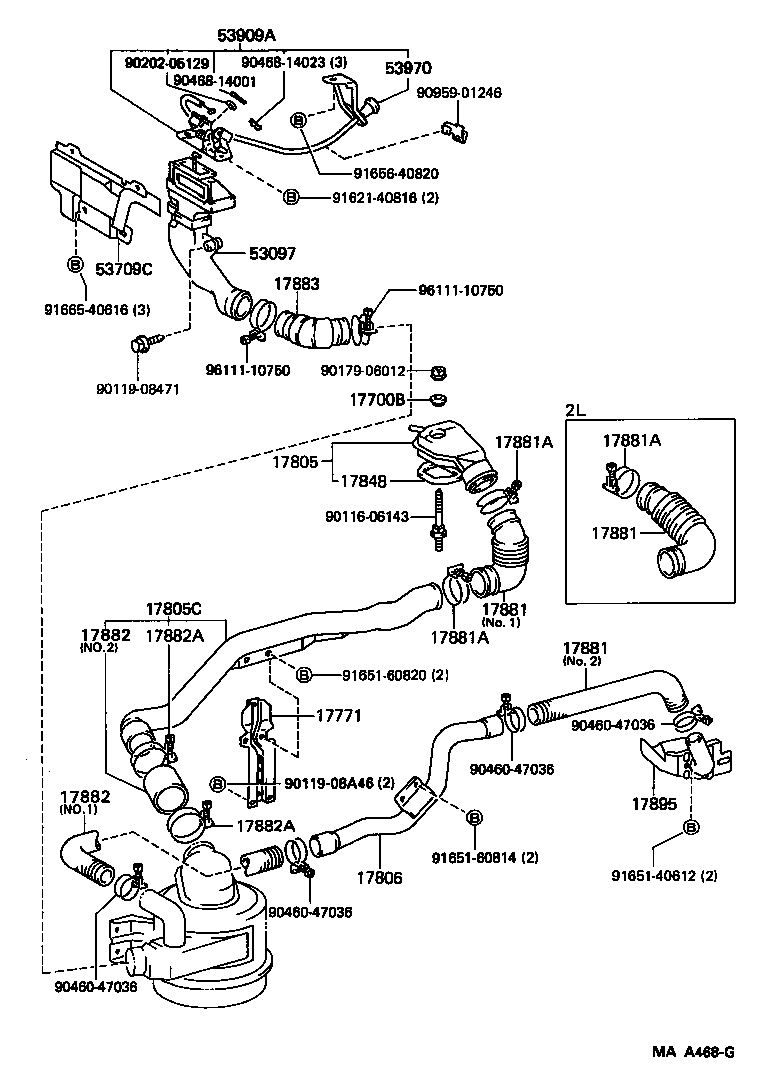

ILLUST NO. 2 OF 2(8708- )2Y..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09026 |
2Y..YH81 |
1 | ||
| 90210-09026 |
2Y..YH81 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-54020 |
2Y..YH81 |
1 | ||
| 17771-54020 |
2Y..YH81 |
1 | ||
| 17771-54020 |
2Y..YH81 |
1 | ||
| 17771-54020 |
2Y..YH81 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-72030 |
2Y..YH81 |
1 | ||
| 17805-72030 |
2Y..YH81 |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17805-54061 |
2Y..YH81 |
1 | ||
| 17805-54061 |
2Y..YH81 |
1 | ||
| 17805-54061 |
2Y..YH81 |
1 | ||
| 17805-54061 |
2Y..YH81 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-71010 |
2Y..YH81..EUR |
1 | ||
| 17806-71010 |
2Y..YH81..EUR |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
2Y..YH81 |
1 | ||
| 17848-35010 |
2Y..YH81 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-71070 |
2Y..YH81 |
1 | ||
| 17881-71070 |
2Y..YH81 |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-71070 |
2Y..YH81 |
1 | ||
| 17881-71070 |
2Y..YH81 |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-71070 |
2Y..YH81 |
1 | ||
| 17881-71070 |
2Y..YH81 |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-25013 |
2Y..YH81..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y..YH81 CARBURETOR SIDE |
1 | ||
| 96111-10750 |
2Y..YH81 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y..YH81 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2Y..YH81 AIR CLEANER SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y..YH81 CARBURETOR SIDE |
1 | ||
| 96111-10750 |
2Y..YH81 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y..YH81 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2Y..YH81 AIR CLEANER SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
2Y..YH81 CARBURETOR SIDE |
1 | ||
| 96111-10750 |
2Y..YH81 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
2Y..YH81 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2Y..YH81 AIR CLEANER SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
2Y..YH81 |
1 | ||
| 17882-54220 |
2Y..YH81 |
1 | ||
| 17882-54220 |
2Y..YH81 |
1 | ||
| 17882-54220 |
2Y..YH81 |
1 | ||
| 17882-71040 |
2Y..YH81..EUR W(HOT AIR INTAKE),NO.1 |
1 | ||
| 17882-71040 |
2Y..YH81..EUR W(HOT AIR INTAKE),NO.1 |
1 | ||
| 17882-71041 |
2Y..YH81..EUR W(HOT AIR INTAKE),NO.1 |
1 | ||
| 17882-71041 |
2Y..YH81..EUR W(HOT AIR INTAKE),NO.1 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
2Y..YH81 |
1 | ||
| 17882-54220 |
2Y..YH81 |
1 | ||
| 17882-54220 |
2Y..YH81 |
1 | ||
| 17882-54220 |
2Y..YH81 |
1 | ||
| 17882-71040 |
2Y..YH81..EUR W(HOT AIR INTAKE),NO.1 |
1 | ||
| 17882-71040 |
2Y..YH81..EUR W(HOT AIR INTAKE),NO.1 |
1 | ||
| 17882-71041 |
2Y..YH81..EUR W(HOT AIR INTAKE),NO.1 |
1 | ||
| 17882-71041 |
2Y..YH81..EUR W(HOT AIR INTAKE),NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y..YH81 |
2 | ||
| 96111-10750 |
2Y..YH81 |
2 | ||
| 96111-10750 |
2Y..YH81 |
2 | ||
| 96111-10750 |
2Y..YH81 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2Y..YH81 |
2 | ||
| 96111-10750 |
2Y..YH81 |
2 | ||
| 96111-10750 |
2Y..YH81 |
2 | ||
| 96111-10750 |
2Y..YH81 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95A00 |
2Y..YH81 |
1 | ||
| 17883-95A00 |
2Y..YH81 |
1 | ||
| 17883-95A00 |
2Y..YH81 |
1 | ||
| 17883-95A00 |
2Y..YH81 |
1 | ||
| 17895 - SHROUD, HOT AIR | ||||
| 17895-71030 |
2Y..YH81..EUR |
1 | ||
| 17895-71030 |
2Y..YH81..EUR |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95A01 |
YH81 |
1 | ||
| 53097-95A01 |
YH81 |
1 | ||
| 53097-95A01 |
YH81 |
1 | ||
| 53097-95A01 |
YH81 |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95A04 |
YH81 |
1 | ||
| 53767-95A04 |
YH81 |
1 | ||
| 53709-95A04 |
YH81 |
1 | ||
| 53709-95A04 |
YH81 |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95A02 |
YH81..LHD |
1 | ||
| 53909-95A02 |
YH81..LHD |
1 | ||
| 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL | ||||
| 53970-95A02 |
YH81..LHD |
1 | ||
| 53970-95A02 |
YH81..LHD |
1 | ||
| Common parts | ||||
| 90116-06143 | ||||
| 90119-08471 | ||||
| 90119-08A46 | ||||
| 90179-06012 | ||||
| 90202-05129 | ||||
| 90460-47036 | ||||
| 90468-14001 | ||||
| 90468-14023 | ||||
| 90959-01246 | ||||
| 91621-40816 | ||||
| 91651-40612 | ||||
| 91651-60814 | ||||
| 91651-60820 | ||||
| 91656-40820 | ||||
| 91665-40616 | ||||
| 96111-10750 | ||||
