YH81L-MDB (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

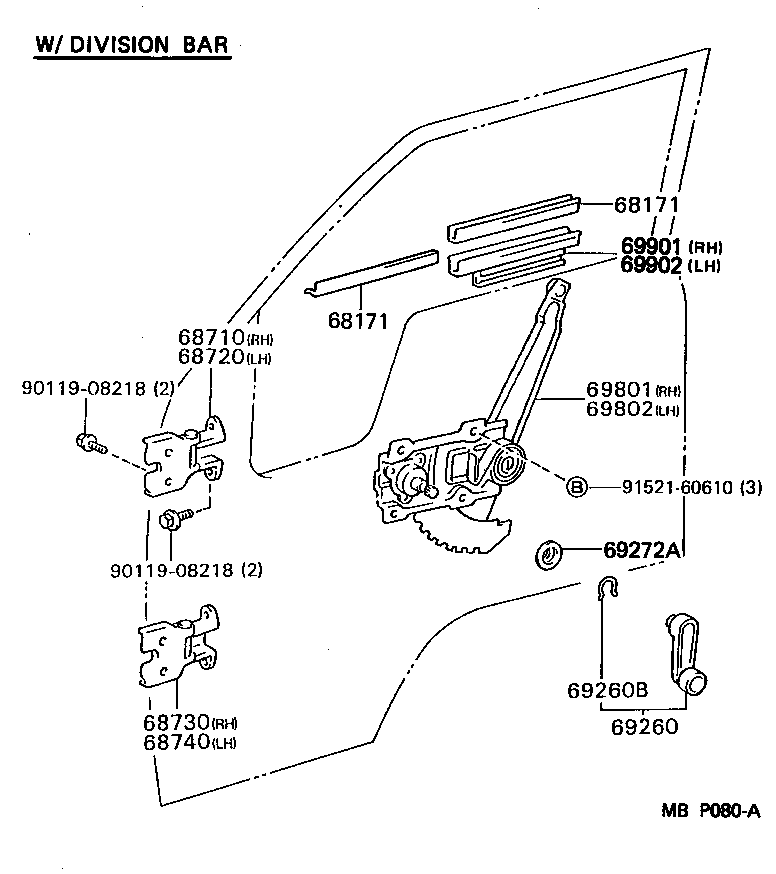

Click highlighted areas on diagram

diagram 68171 68171 68710 68720 68730 68740 69260 69260B 69272A 69801 69802 69901 69902 9011908218 9011908218 9152160610
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-22010

LH80,YH81

 2
68219-95400

LH80,YH81..GEN

W(DIVISION BAR),RR

 2
68219-95400

LH80,YH81

RR

 2
68221-95401

LH80,YH81..GEN

W(DIVISION BAR),FR

 2
68221-95401

LH80,YH81

FR

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-22010

LH80,YH81

 2
68219-95400

LH80,YH81..GEN

W(DIVISION BAR),RR

 2
68219-95400

LH80,YH81

RR

 2
68221-95401

LH80,YH81..GEN

W(DIVISION BAR),FR

 2
68221-95401

LH80,YH81

FR

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95702

LH80,YH81

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95702

LH80,YH81

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-95702

LH80,YH81

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95702

LH80,YH81

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-10040B1

LH80,YH81

BLUISH GRAY,TRIM1#

 2
69260-1004006

LH80,YH81

BROWN,TRIM4#

 2
69260-10040B1

LH80,YH81

BLUISH GRAY,TRIM1#

 4
69260-1004008

LH80,YH81

BLUISH GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LH80,YH81

 2
69272A - PLATE, DOOR WINDOW REGULATOR HANDLE
69272-3001008

LH80,YH81

NATURAL WHITE,TRIM4#

 2
69272-3001008

LH80,YH81

NATURAL WHITE,TRIM1#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95404

LH80,YH81..GEN

 1
69810-95407

LH80,YH81

 1
69810-95404

LH80,YH81..GEN

W(DIVISION BAR)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95406

LH80,YH81..GEN

W(DIVISION BAR)

 1
69820-95409

LH80,YH81

 1
69820-95406

LH80,YH81..GEN

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-95403

LH80,YH81

 1
69901-95403

LH80,YH81..GEN

W(DIVISION BAR)

 1
69901-95404

LH80,YH81

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-95404

LH80,YH81

 1
69901-95403

LH80,YH81

 1
69901-95403

LH80,YH81..GEN

W(DIVISION BAR)

 1
Common parts
90119-08218
91521-60610

(8808- )

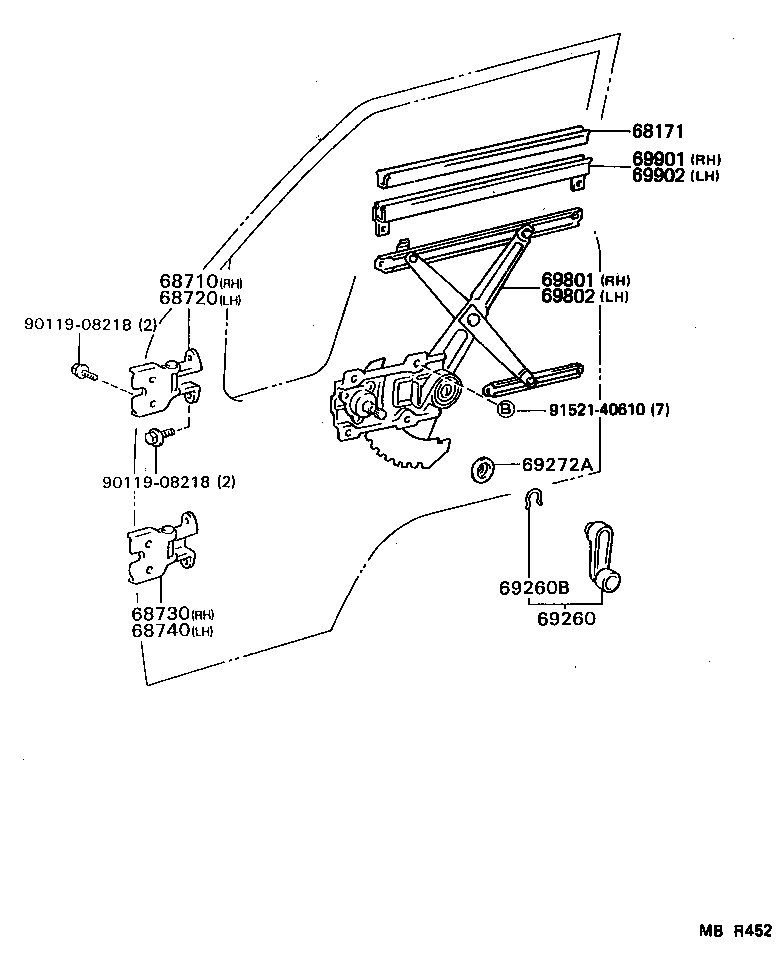

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69272A 69801 69802 69901 69902 9011908218 9011908218 9152140610
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-22010

LH80,YH81

 2
68219-95400

LH80,YH81..GEN

W(DIVISION BAR),RR

 2
68219-95400

LH80,YH81

RR

 2
68221-95401

LH80,YH81..GEN

W(DIVISION BAR),FR

 2
68221-95401

LH80,YH81

FR

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95702

LH80,YH81

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95702

LH80,YH81

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-95702

LH80,YH81

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95702

LH80,YH81

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-10040B1

LH80,YH81

BLUISH GRAY,TRIM1#

 2
69260-1004006

LH80,YH81

BROWN,TRIM4#

 2
69260-10040B1

LH80,YH81

BLUISH GRAY,TRIM1#

 4
69260-1004008

LH80,YH81

BLUISH GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LH80,YH81

 2
69272A - PLATE, DOOR WINDOW REGULATOR HANDLE
69272-3001008

LH80,YH81

NATURAL WHITE,TRIM4#

 2
69272-3001008

LH80,YH81

NATURAL WHITE,TRIM1#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95404

LH80,YH81..GEN

 1
69810-95407

LH80,YH81

 1
69810-95404

LH80,YH81..GEN

W(DIVISION BAR)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95406

LH80,YH81..GEN

W(DIVISION BAR)

 1
69820-95409

LH80,YH81

 1
69820-95406

LH80,YH81..GEN

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-95403

LH80,YH81

 1
69901-95403

LH80,YH81..GEN

W(DIVISION BAR)

 1
69901-95404

LH80,YH81

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-95404

LH80,YH81

 1
69901-95403

LH80,YH81

 1
69901-95403

LH80,YH81..GEN

W(DIVISION BAR)

 1
Common parts
90119-08218
91521-40610
