YH81L-MDB (1987)
Toyota Dyna100
(8708- )T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

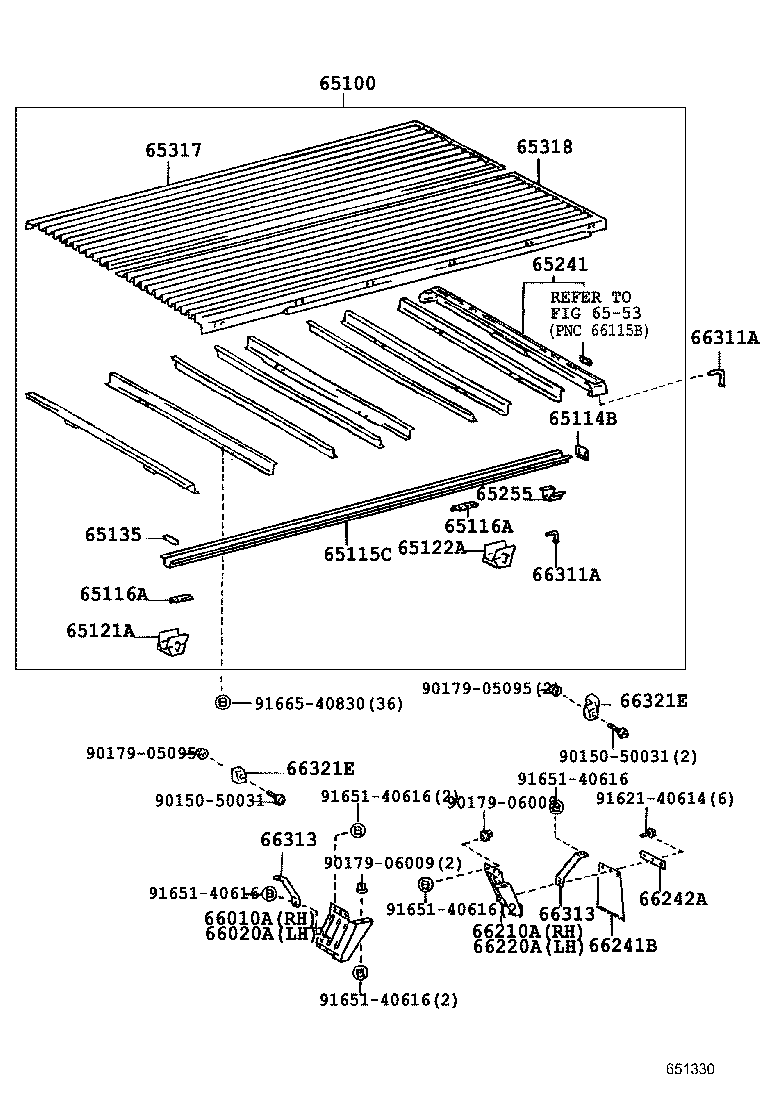

| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-95A16 |
LH80,YH81..T3..CBU |
1 | ||
| 65100-95A26 |
LH80,YH81..T3..CBU |
1 | ||
| 65114B - COVER, MAIN SILL, REAR | ||||
| 65114-95A00 |
LH80,YH81..T3..CBU |
2 | ||
| 65115C - SILL, MAIN | ||||
| 65115-95A04 |
LH80,YH81..T3..CBU |
2 | ||
| 65116A - PLATE, MAIN SILL | ||||
| 65116-26010 |
LH80,YH81..T3..CBU RR |
2 | ||
| 65116-95A02 |
LH80,YH81..T3..CBU FR |
2 | ||
| 65116A - PLATE, MAIN SILL | ||||
| 65116-26010 |
LH80,YH81..T3..CBU RR |
2 | ||
| 65116-95A02 |
LH80,YH81..T3..CBU FR |
2 | ||
| 65121A - BRACKET, MAIN SILL MOUNTING, NO.1 | ||||
| 65121-95A03 |
LH80,YH81..T3..CBU |
8 | ||
| 65122A - BRACKET, MAIN SILL MOUNTING, NO.2 | ||||
| 65122-95A01 |
LH80,YH81..T3..CBU |
2 | ||
| 65135 - PATCH, MAIN SILL | ||||
| 65135-95A00 |
LH80,YH81..T3..CBU |
2 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65240-95A09 |
LH80,YH81..T3..CBU |
1 | ||
| 65240-95A06 |
LH80,YH81..T3..CBU |
1 | ||
| 65255 - GUSSET, MAIN SILL | ||||
| 65255-95A01 |
LH80,YH81..T3..CBU |
2 | ||
| 65317 - PANEL, FLOOR SIDE, RH | ||||
| 65317-95045 |
LH80,YH81..T3..CBU |
1 | ||
| 65317-95041 |
LH80,YH81..T3..CBU |
1 | ||
| 65318 - PANEL, FLOOR SIDE, LH | ||||
| 65318-95041 |
LH80,YH81..T3..CBU |
1 | ||
| 65318-95039 |
LH80,YH81..T3..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-95A02 |
LH80,YH81..T3..CBU |
1 | ||
| 66010-26010 |
LH80,YH81..T3..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-95A02 |
LH80,YH81..T3..CBU |
1 | ||
| 66020-26010 |
LH80,YH81..T3..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-95A02 |
LH80,YH81..T3..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-95A02 |
LH80,YH81..T3..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-95600 |
LH80,YH81..CBU |
2 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95012 |
LH80,YH81..CBU |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66312-95A00 |
LH80,YH81..T3..CBU |
2 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66312-95A00 |
LH80,YH81..T3..CBU |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-95A02 |
LH80,YH81..T3..CBU FR |
2 | ||
| 66236-26020 |
LH80,YH81..T3..CBU RR |
2 | ||
| 66236-95A02 |
LH80,YH81..T3..CBU RR |
2 | ||
| 66235-26010 |
LH80,YH81..T3..CBU FR |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-95A02 |
LH80,YH81..T3..CBU FR |
2 | ||
| 66236-26020 |
LH80,YH81..T3..CBU RR |
2 | ||
| 66236-95A02 |
LH80,YH81..T3..CBU RR |
2 | ||
| 66235-26010 |
LH80,YH81..T3..CBU FR |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-25010 |
LH80,YH81..T3..CBU RR |
2 | ||
| 66331-95010 |
LH80,YH81..T3..CBU FR |
2 | ||
| 66321-95017 |
LH80,YH81..T3..CBU RR |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-25010 |
LH80,YH81..T3..CBU RR |
2 | ||
| 66331-95010 |
LH80,YH81..T3..CBU FR |
2 | ||
| 66321-95017 |
LH80,YH81..T3..CBU RR |
2 | ||
| Common parts | ||||
| 90150-50031 | ||||
| 90179-05095 | ||||
| 90179-06009 | ||||
| 91621-40614 | ||||
| 91651-40616 | ||||
| 91665-40830 | ||||
| Linked diagrams | ||||
| 6553 | ||||
