YH80R-MDP (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

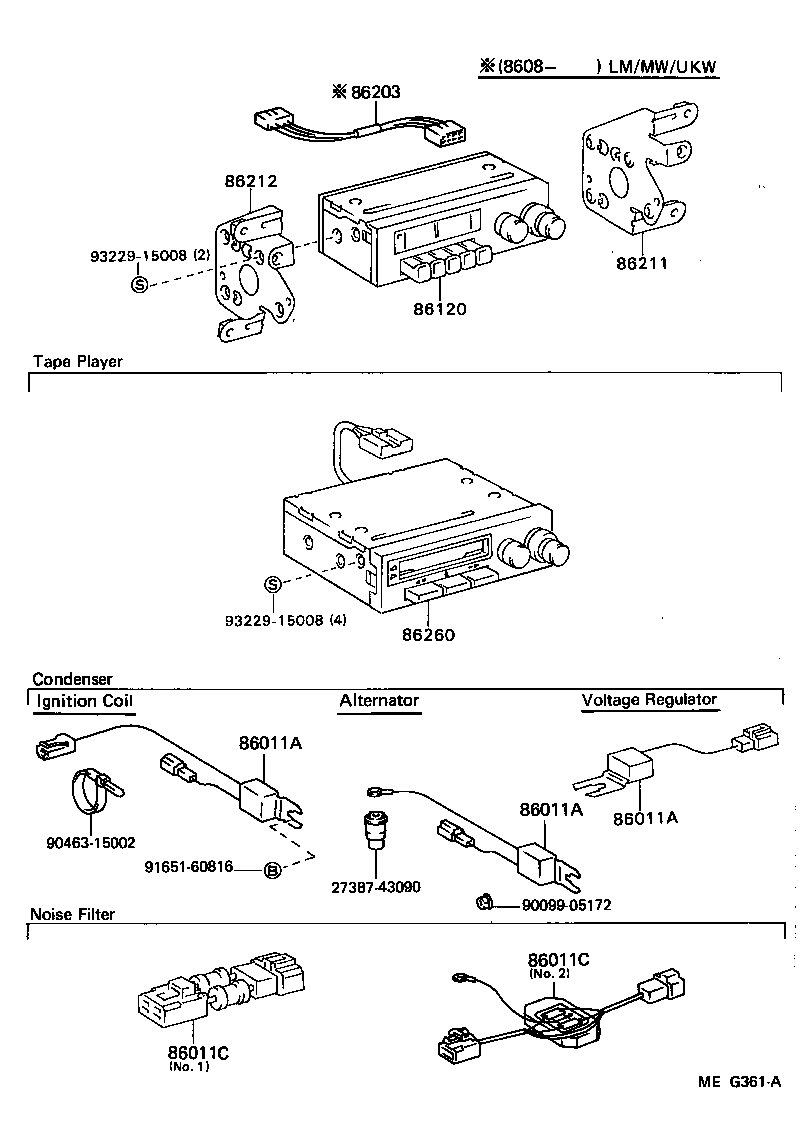

Click highlighted areas on diagram

diagram 2738743090 86011A 86011A 86011A 86011C 86011C 86120 86203 86211 86212 86260 9009905172 9046315002 9165160816 9322915008 9322915008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04059

YH8#

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04059

YH8#

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04059

YH8#

IGNITION COIL

 1
86011C - FILTER, NOISE
90980-05049

LH80,YH8#

NO.1,AM/FM MPX OR LW/MW/UKW

 1
86011C - FILTER, NOISE
90980-05049

LH80,YH8#

NO.1,AM/FM MPX OR LW/MW/UKW

 1
86120 - RECEIVER ASSY, RADIO
86120-32280

LH80,YH8#..ARL,GEN

MATSUSHITA,AM/FM MPX

 1
86120-16460

LH80,YH80..GEN

MATSUSHITA,ID=5108,MW/SW

 1
86120-16530

LH80,YH8#

MATSUSHITA,ID=5010,AM

 1
86120-22600

LH80,YH80..GEN

MW/SW

 1
86120-20470

LH80,YH8#..ARL,GEN

AM/FM MPX

 1
86120-17010

LH80,YH8#

AM

 1
86211 - BRACKET, RADIO, NO.1
86211-95406

LH80,YH8#

 1
86212 - BRACKET, RADIO, NO.2
86212-95406

LH80,YH8#

 1
86260 - TAPE PLAYER ASSY
86260-19055

LH80,YH8#..ARL,GEN

 1
86260-17011

LH80,YH8#..ARL,GEN

 1
86260-17010

LH80,YH8#..ARL,GEN

 1
Common parts
27387-43090
90099-05172
90463-15002
91651-60816
93229-15008
