YH80R-MDP (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

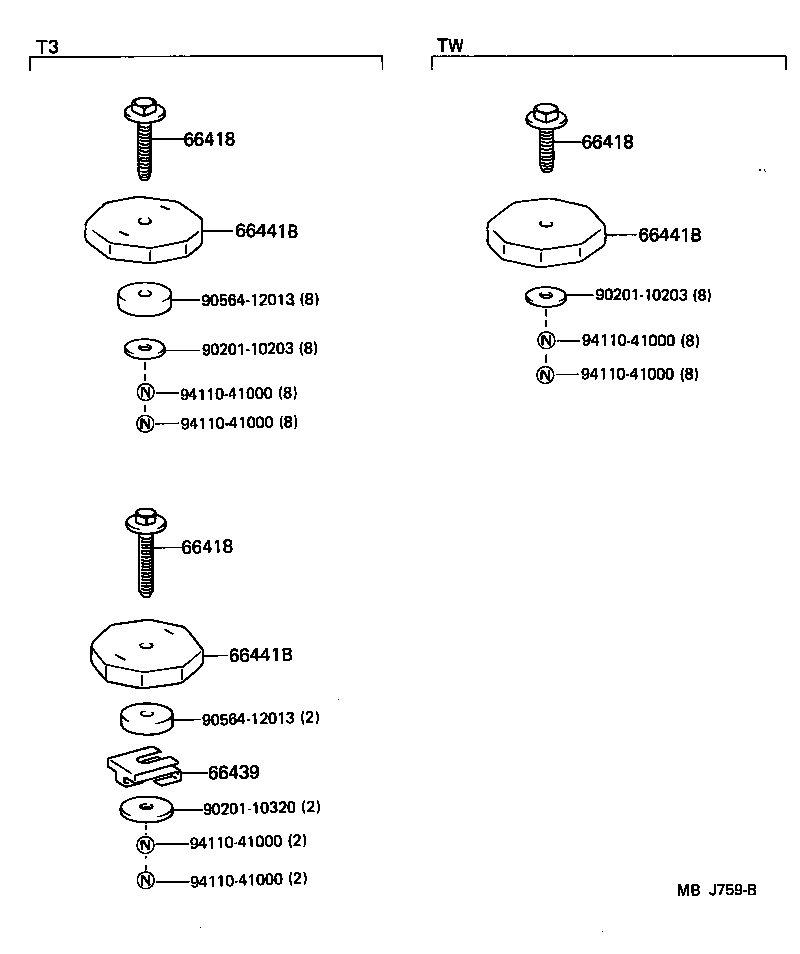

diagram 66418 66418 66418 66439 66441B 66441B 66441B 9020110203 9020110203 9020110320 9056412013 9056412013 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000
Part # Description Qty Price
66418 - BOLT, MOUNTING
90119-10102

LH80,YH8#..TW

 8
66418 - BOLT, MOUNTING
90119-10102

LH80,YH8#..TW

 8
66418 - BOLT, MOUNTING
90119-10102

LH80,YH8#..TW

 8
66441B - SHIM, MOUNTING, NO.1
66441-95A01

LH80,YH8#..TW

 8
66441B - SHIM, MOUNTING, NO.1
66441-95A01

LH80,YH8#..TW

 8
66441B - SHIM, MOUNTING, NO.1
66441-95A01

LH80,YH8#..TW

 8
Common parts
90201-10203
90201-10320
90564-12013
94110-41000
