YH80R-MDP (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1Y,2Y

Click highlighted areas on diagram

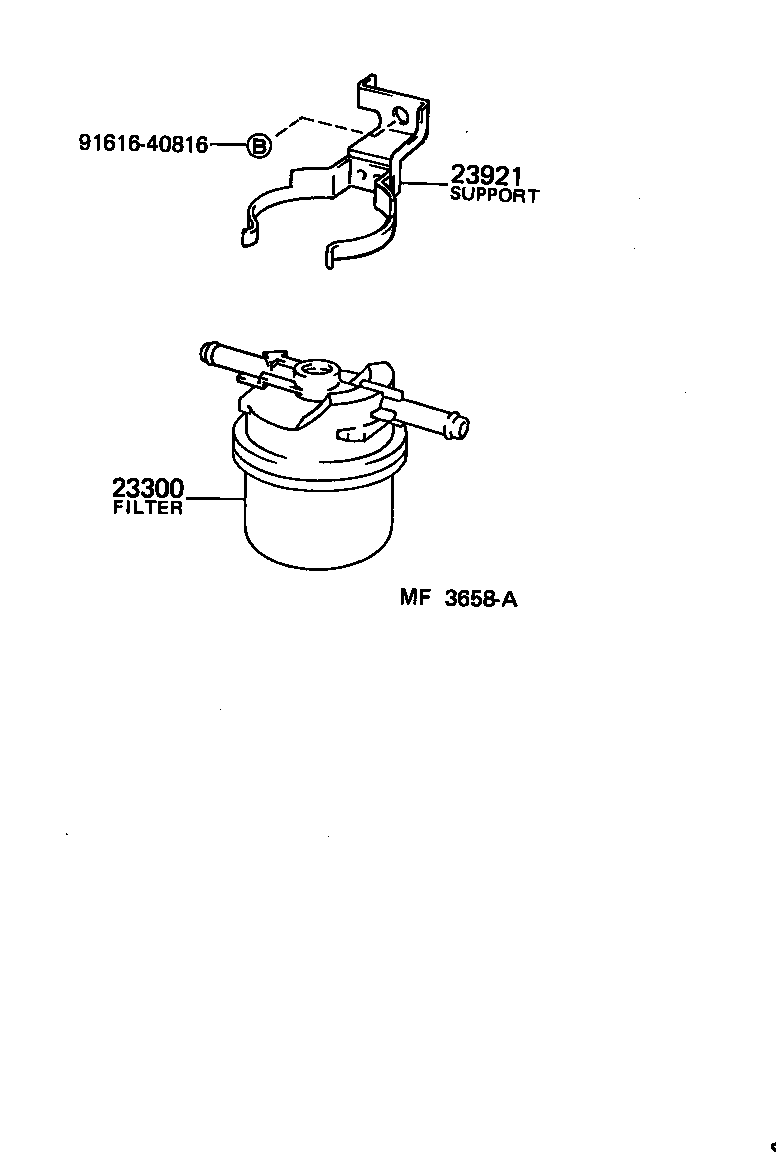

diagram 23300 23921 9161640816
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-25020

1Y,2Y..YH8#

 1
23921 - SUPPORT, FUEL FILTER
90929-01123

1Y,2Y..YH8#

 1
Common parts
91616-40816
