YH80R-MDB3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

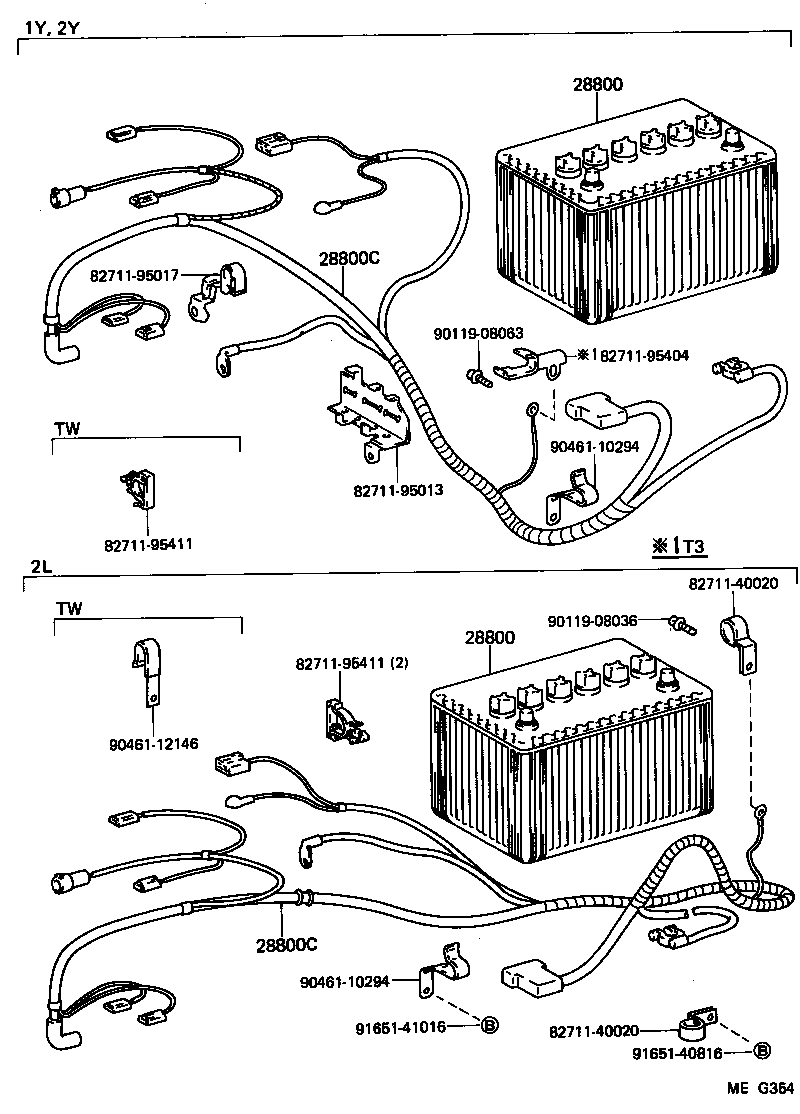

Click highlighted areas on diagram

diagram 28800 28800 28800C 28800C 8271140020 8271140020 8271195013 8271195017 8271195404 8271195411 8271195411 9011908036 9011908063 9046110294 9046110294 9046112146 9165140816 9165141016
Part # Description Qty Price
28800 - BATTERY
28800-12060

1Y,2Y..YH8#

50D20R,50D20R

 1
28800-72010

1Y..YH80

34B19L(S),34B19L(NS40ZAL)

 1
28800 - BATTERY
28800-12060

1Y,2Y..YH8#

50D20R,50D20R

 1
28800-72010

1Y..YH80

34B19L(S),34B19L(NS40ZAL)

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95A27

1Y..YH80..T3

34B19L(NS40ZAL)

 1
82021-95A28

1Y,2Y..YH8#..T3

50D20R

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95A27

1Y..YH80..T3

34B19L(NS40ZAL)

 1
82021-95A28

1Y,2Y..YH8#..T3

50D20R

 1
Common parts
82711-40020
82711-95013
82711-95017
82711-95404
82711-95411
90119-08036
90119-08063
90461-10294
90461-12146
91651-40816
91651-41016
