YH80R-MDB3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

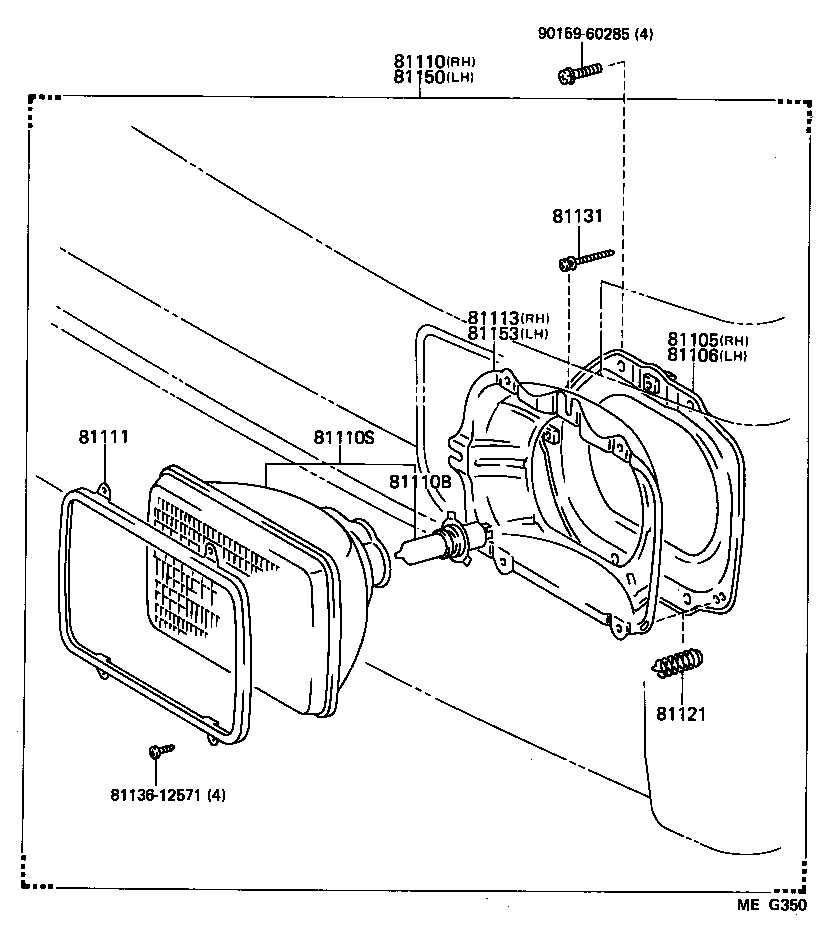

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81111 81113 81121 81131 8113612571 81150 81153 9015960285
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95A25

LH80,YH8#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95A25

LH80,YH8#

 1
81110 - HEADLAMP ASSY, RH
81110-95A25

LH80,YH8#..RHD

 1
81110-95A26

LH80,YH80..RHD..GEN

*SSB,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

LH80,YH8#..EUR,GEN

12V 45/40W,WHITE,12V 45/40W,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04033

LH80,YH80..RHD..GEN

12V 45/40W,*WSB,*SSB,WHITE

 2
90981-04029

LH80,YH8#..RHD

12V 65/55W,*WB

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

LH80,YH8#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-16220

LH80,YH8#

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

LH80,YH8#

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LH80,YH8#

 2
81150 - HEADLAMP ASSY, LH
81150-95A25

LH80,YH8#..RHD

 1
81150-95A26

LH80,YH80..RHD..GEN

*SSB,WHITE

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-16220

LH80,YH8#

 1
Common parts
81136-12571
90159-60285
