YH80R-MDB (1985)
Toyota Dyna100
(8508- )

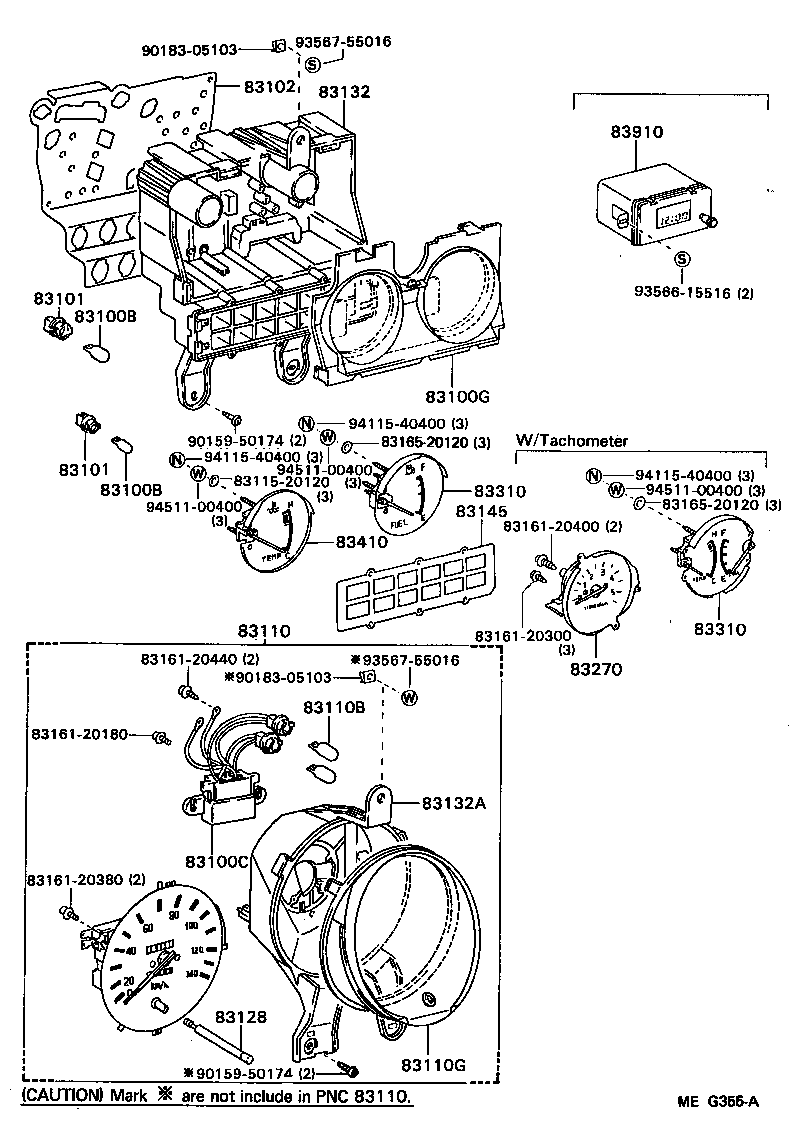

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LH80,YH8# 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LH80,YH8# 12V 3.4W,12V 3.4W |
10 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 83101-95409 |
YH8# |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-95405 |
LH80,YH8# |
1 | ||
| 83134-92600 |
YH8# W/TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH80,YH8# 12V 3.4W |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH80,YH8# 12V 3.4W |
10 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95K01 |
YH8# W/TACHOMETER |
1 | ||
| 83247-95K00 |
YH8# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95442 |
YH80 KM & MILE,W/TRIP METER |
1 | ||
| 83110-95441 |
YH8#..EUR,GEN KM,W/TRIP METER |
1 | ||
| 83110-95443 |
YH8#..EUR,GEN KM |
1 | ||
| 83110-95A19 |
YH80 KM & MILE |
1 | ||
| 83110B - BULB, SPEEDOMETER | ||||
| 99132-12034 |
LH80,YH8# 12V 3.4W |
1 | ||
| 83110G - GLASS, SPEEDOMETER | ||||
| 83134-95406 |
LH80,YH8# W/TRIP COUNTER |
1 | ||
| 83134-95407 |
LH80,YH8#..EUR,GEN |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89300 |
LH80,YH8# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95402 |
LH80,YH8# |
1 | ||
| 83132-92602 |
YH8# W/TACHOMETER |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-95403 |
LH80,YH8# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95K03 |
YH80 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-95404 |
YH8# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95407 |
LH80,YH80..GEN *ME,W/TACHOMETER |
1 | ||
| 83243-95407 |
YH80 *ME,W/TACHOMETER |
1 | ||
| 83243-95406 |
YH8#..EUR,GEN W/TACHOMETER |
1 | ||
| 83243-95405 |
LH80,YH8#..EUR,GEN |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95407 |
LH80,YH80..GEN *ME,W/TACHOMETER |
1 | ||
| 83243-95407 |
YH80 *ME,W/TACHOMETER |
1 | ||
| 83243-95406 |
YH8#..EUR,GEN W/TACHOMETER |
1 | ||
| 83243-95405 |
LH80,YH8#..EUR,GEN |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95404 |
YH8#..EUR,GEN |
1 | ||
| 83244-95405 |
LH80,YH80..GEN *ME |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95403 |
LH80,YH8# |
1 | ||
| Common parts | ||||
| 83115-20120 | ||||
| 83161-20180 | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20440 | ||||
| 83165-20120 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93566-15516 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

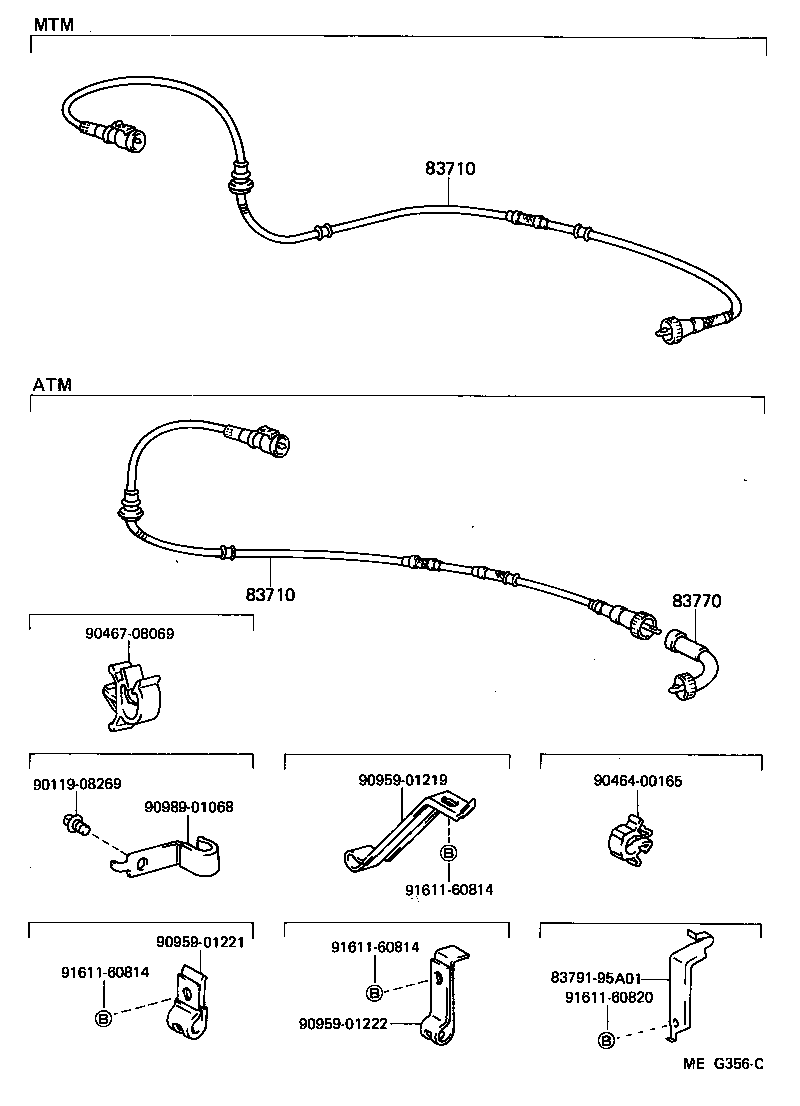

| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95A26 |
YH8#..RHD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95A26 |
YH8#..RHD |
1 | ||
| Common parts | ||||
| 83791-95A01 | ||||
| 90119-08269 | ||||
| 90464-00165 | ||||
| 90467-08069 | ||||
| 90959-01219 | ||||
| 90959-01221 | ||||
| 90959-01222 | ||||
| 90989-01068 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 2203 | ||||
