YH80R-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

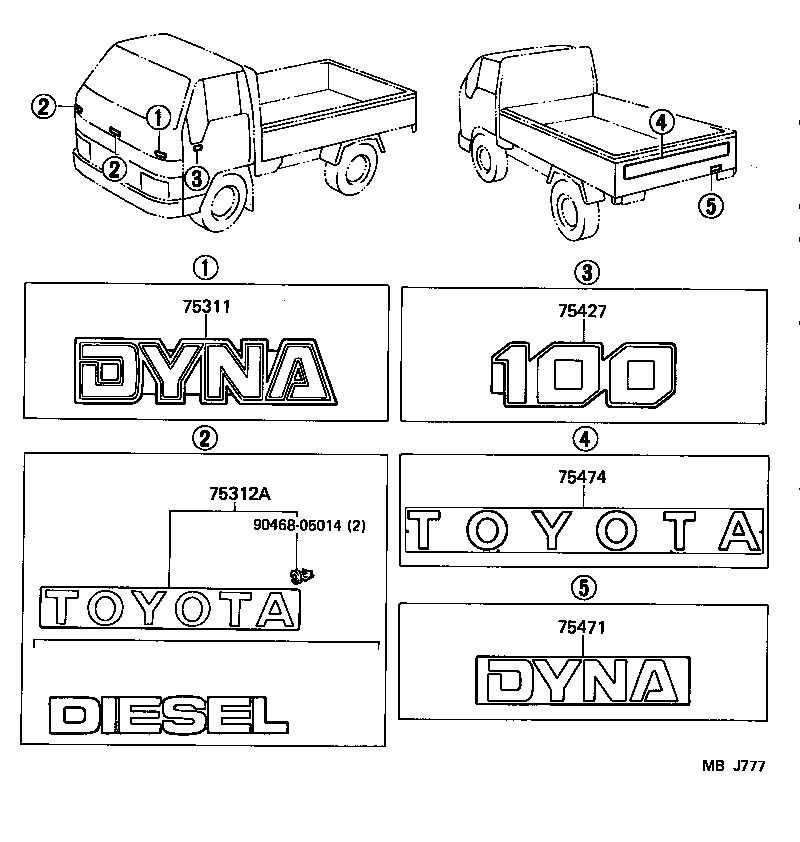

Click highlighted areas on diagram

diagram 75311 75312A 75427 75471 75474 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-95413

LH80,YH8#

 1
75312A - PLATE, FRONT NAME, NO.2
75312-95A07

LH80,YH8#

TOYOTA,TOYOTA

 1
75427 - PLATE, FRONT DOOR NAME
75427-95A00

LH80,YH8#

100

 2
75471 - PLATE, REAR BODY NAME, NO.1(MODEL MARK)
75471-95414

LH80,YH8#

DYNA

 1
75474 - PLATE, REAR BODY NAME, NO.4
75995-9501001

LH80,YH8#..T3..CBU

BLACK(033,541,557),BLACK

 1
75995-9501008

LH80,YH8#..T3..CBU

WHITE(391,6A9,857),WHITE

 1
Common parts
90468-05014
