YH80R-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

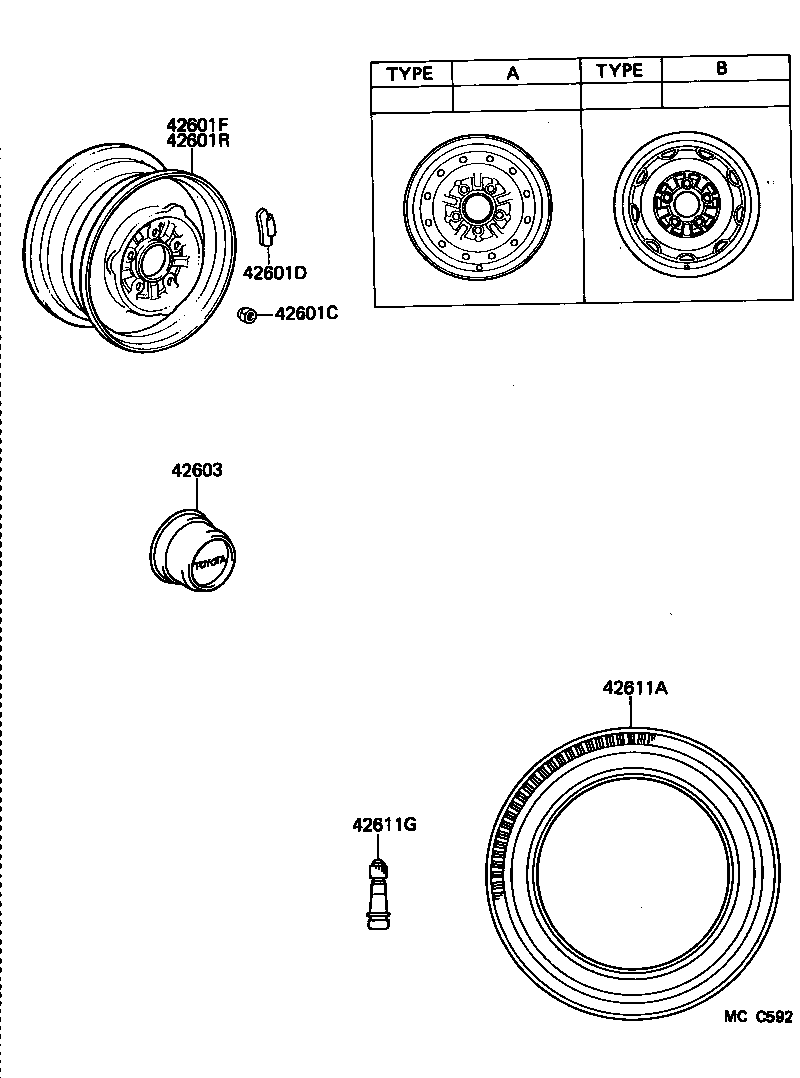

Click highlighted areas on diagram

diagram 42601C 42601D 42601F 42601R 42603 42611A 42611G
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01054

LH80,YH8#

 20
90942-01061

LH80,YH8#

 20
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03017

LH80,YH8#

20G,T=8,20G

 1
90942-03031

LH80,YH8#

80G,T=9.5,80G

 1
90942-03025

LH80,YH8#

50G,T=9.5,50G

 1
90942-03020

LH80,YH8#

30G,T=10,30G

 1
90942-03041

LH80,YH8#

10G,T=7.5,10G

 1
90942-03022

LH80,YH8#

40G,T=9.5,40G

 1
90942-03027

LH80,YH8#

60G,T=9.5,60G

 1
90942-03029

LH80,YH8#

70G,T=9.5,70G

 1
42601F - WHEEL, DISC (FOR FRONT)
42601-26171

LH80,YH80..GEN

14X4.5J,4.5J-14,TYPE A

 2
42601-26250

LH80,YH8#

5.5J-14, #,5.5J-14,TYPE B

 2
42601R - WHEEL, DISC (FOR REAR)
42601-26171

LH80,YH80..GEN

14X4.5J,4.5J-14,TYPE A

 3
42601-26250

LH80,YH8#

5.5J-14, #,5.5J-14,TYPE B

 3
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-26070

LH80,YH8#

*STE

 4
42611A - TIRE TUBE SET OR TUBELESS TIRE
42605-26110

YH8#..ARL,GEN;LH80..T3..(ARL,GEN)

185R14-8,W/TUBE,*(D),*(T),*(Y)

 5
42605-26150

LH80,YH80..GEN

6.00-14-8,RR,W/TUBE

 3
42605-26080

YH80;LH80..T3..GEN

185R14-6,W/TUBE,*(D),*(T),*(Y)

 5
42605-26150

LH80,YH80..GEN

6.00-14-8,W/TUBE

 5
42605-26170

YH80;LH80..T3..GEN

185R14-6,W/TUBE,*(B)

 5
42605-26180

YH8#..ARL,GEN;LH80..T3..(ARL,GEN)

185R14-8,W/TUBE,*(B)

 5
42605-26140

LH80,YH80..GEN

6.00-14-6,FR,W/TUBE

 2
