YH80L-MDP (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

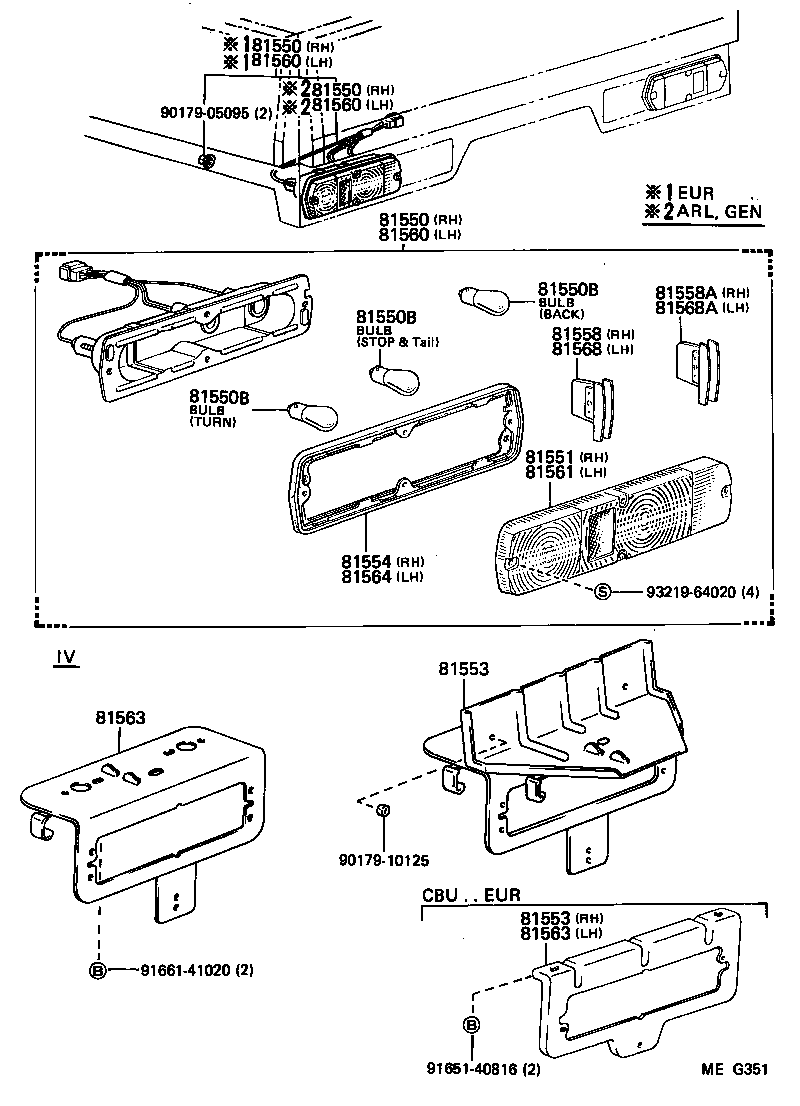

Click highlighted areas on diagram

diagram 81550 81550 81550 81550B 81550B 81550B 81551 81553 81553 81554 81558 81558A 81560 81560 81560 81561 81563 81563 81564 81568 81568A 9017905095 9017910125 9165140816 9166141020 9321964020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95012

LH80,YH8#..ARL,GEN

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95012

LH80,YH8#..ARL,GEN

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95012

LH80,YH8#..ARL,GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH80,YH8#..ARL,GEN

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

LH80,YH8#

12V 21/5W,12V 21/5W(STOP & TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH80,YH8#..ARL,GEN

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

LH80,YH8#

12V 21/5W,12V 21/5W(STOP & TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

LH80,YH8#..ARL,GEN

12V 23W,12V 23W(TURN,BACK)

 4
99132-21210

LH80,YH8#

12V 21/5W,12V 21/5W(STOP & TAIL)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060

LH80,YH8#..ARL,GEN

 1
81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH
75103-25011

LH80,YH8#..ARL,GEN

 1
81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH
75103-25011

LH80,YH8#..ARL,GEN

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-25060

LH80,YH8#..ARL,GEN

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060

LH80,YH8#..ARL,GEN

 1
81558A - SHADE, REAR COMBINATION LAMP, NO.2 RH
81557-25060

LH80,YH8#..ARL,GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95012

LH80,YH8#..ARL,GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95012

LH80,YH8#..ARL,GEN

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95012

LH80,YH8#..ARL,GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040

LH80,YH8#..ARL,GEN

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-25040

LH80,YH8#..ARL,GEN

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060

LH80,YH8#..ARL,GEN

 1
81568A - SHADE, REAR COMBINATION LAMP, NO.2 LH
81557-25060

LH80,YH8#..ARL,GEN

 1
Common parts
90179-05095
90179-10125
91651-40816
91661-41020
93219-64020
