YH80L-MDP (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LHD

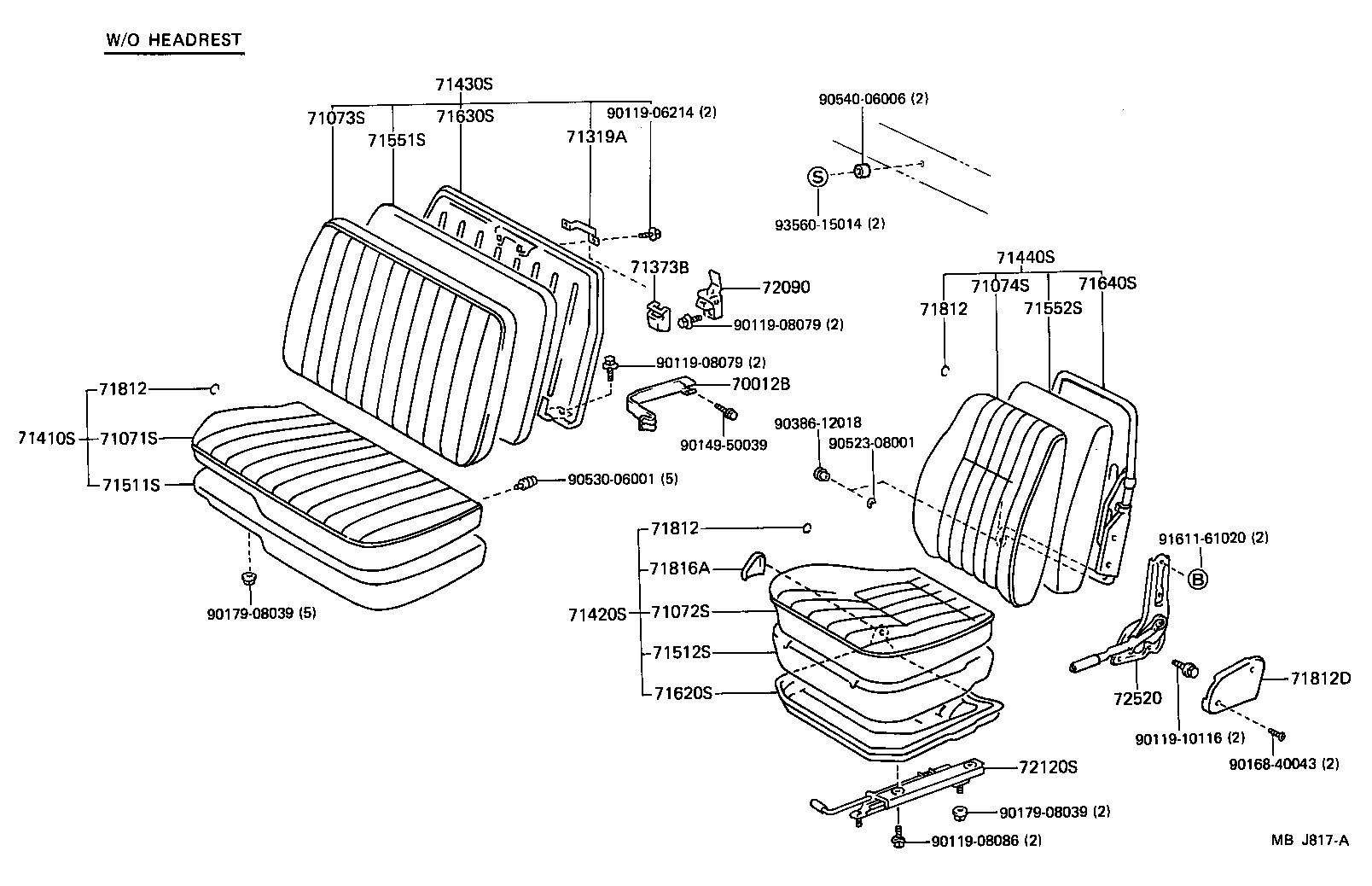

Click highlighted areas on diagram

diagram 70012B 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71620S 71630S 71640S 71812 71812 71812 71812D 71816A 71950 71950 72090 72120S 72520 9011906214 9011908079 9011908079 9011908079 9011908086 9011908469 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9052308001 9053006001 9054006006 9161161020 9356015014
Part # Description Qty Price
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570003

LH80,YH8#

GRAY,SHADOW GRAY

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95A0304

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71071-9545703

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71071-9548903

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9545903

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072-9547104

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71072-95B1503

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9547204

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71074-95B0803

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-95A0603

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71074-95A2003

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71073-95A0703

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71074-95A1903

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71074-95A1204

LH80,YH80..LHD..TW..GEN

FB,BLUE,BLUE

 1
71074-95A3403

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71074-95A3303

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95400

LH80,YH8#

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540003

LH80,YH8#

GRAY,SHADOW GRAY

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9544303

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71410-95A5404

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71410-9548003

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95A1303

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71420-9545404

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71420-95A2303

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440-9547403

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71430-9545404

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95A2203

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71440-95A2303

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71440-95A2404

LH80,YH80..LHD..TW..GEN

FB,BLUE,BLUE

 1
71440-95A4403

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71440-95A4303

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-95400

LH80,YH8#..LHD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-95400

LH80,YH80..LHD..GEN

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552-95403

LH80,YH8#..LHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95404

LH80,YH8#..LHD

W/HEADREST

 1
71551-95405

LH80,YH8#..LHD

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71012-95412

LH80,YH8#..LHD

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71014-95411

LH80,YH8#..LHD

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71160-95J06

LH80,YH8#..LHD

 1
71014-95412

LH80,YH8#..LHD

W/HEADREST

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-95J0003

LH80,YH8#..LHD

GRAY,SHADOW GRAY

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J0003

LH80,YH8#..LHD

GRAY,SHADOW GRAY

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-9260303

LH80,YH8#..TW

GRAY,GRAY

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-9260303

LH80,YH8#..TW

GRAY,GRAY

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540003

LH80,YH8#

GRAY,SHADOW GRAY

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-95A00

LH80,YH8#..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-95A0503

LH80,YH8#..LHD

GRAY,SHADOW GRAY

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90523-08001
90530-06001
90540-06006
91611-61020
93560-15014

(8508- )

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71466 71467 71468A 71469 71480B 71486 71491A 71611 71621A 71647 71647 71650 71651B 71670 71697 71697 71697 71812 71812 9166160820
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-95A0404

LH80,YH80..LHD..TW..GEN

FB,BLUE,BLUE

 1
71065-95A0203

LH80,YH80..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-95A0203

LH80,YH80..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71077-95A0304

LH80,YH80..LHD..TW..GEN

FB,BLUE,BLUE

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-95A0504

LH80,YH80..LHD..TW..GEN

FB,BLUE,BLUE

 1
71460-95A0203

LH80,YH80..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71466 - PAD, REAR SEAT CUSHION UNDER
71466-95400

LH80,YH8#..TW

 1
71467 - PAD, CORNER
71467-95400

LH80,YH8#..TW

 2
71468A - PROTECTOR, REAR SEAT, NO.1 (FOR SEAT BACK)
71468-95400

LH80,YH8#..TW

 2
71469 - PROTECTOR, REAR SEAT, NO.2
71469-95401

LH80,YH8#..TW

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-95A0203

LH80,YH8#..TW..(EUR,GEN)

VL,GRAY,SHADOW GRAY

 1
71480-95A0304

LH80,YH80..LHD..TW..GEN

FB,BLUE,BLUE

 1
71486 - PROTECTOR, REAR SEAT, NO.3
71486-95401

LH80,YH8#..TW

 1
71491A - CUSHION, REAR SEAT SET
71491-95A00

LH80,YH8#..TW

 2
71611 - PAD, REAR SEAT CUSHION
71611-92600

LH80,YH8#..TW

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-95400

LH80,YH8#..TW

 1
71647 - PROTECTOR, REAR SEAT CUSHION EDGE
71647-95A00

LH80,YH8#..TW

L=570

 2
71647-95A01

LH80,YH8#..TW

L=790

 1
71647 - PROTECTOR, REAR SEAT CUSHION EDGE
71647-95A00

LH80,YH8#..TW

L=570

 2
71647-95A01

LH80,YH8#..TW

L=790

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-95012

LH80,YH80..TW..GEN

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-92600

LH80,YH8#..TW

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-95A01

LH80,YH8#..TW

 1
71697 - PROTECTOR, REAR SEAT BACK EDGE
71697-95A00

LH80,YH8#..TW

65X1270

 1
71697-95A01

LH80,YH8#..TW

65X420

 2
71697 - PROTECTOR, REAR SEAT BACK EDGE
71697-95A00

LH80,YH8#..TW

65X1270

 1
71697-95A01

LH80,YH8#..TW

65X420

 2
71697 - PROTECTOR, REAR SEAT BACK EDGE
71697-95A00

LH80,YH8#..TW

65X1270

 1
71697-95A01

LH80,YH8#..TW

65X420

 2
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
Common parts
91661-60820

(8508- )LHD

Click highlighted areas on diagram

diagram 70012B 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71620S 71630S 71640S 71812 71812 71812 71812D 71816A 72090 72120S 72520 9011906214 9011908079 9011908079 9011908086 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9052308001 9053006001 9054006006 9161161020 9356015014
Part # Description Qty Price
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570003

LH80,YH8#

GRAY,SHADOW GRAY

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95A0304

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71071-9545703

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71071-9548903

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9545903

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072-9547104

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71072-95B1503

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9547204

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71074-95B0803

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-95A0603

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71074-95A2003

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71073-95A0703

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71074-95A1903

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71074-95A1204

LH80,YH80..LHD..TW..GEN

FB,BLUE,BLUE

 1
71074-95A3403

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71074-95A3303

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95400

LH80,YH8#

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540003

LH80,YH8#

GRAY,SHADOW GRAY

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9544303

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71410-95A5404

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71410-9548003

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95A1303

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71420-9545404

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71420-95A2303

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440-9547403

LH80,YH80..LHD..GEN

VL,GRAY,SHADOW GRAY

 1
71430-9545404

LH80,YH80..LHD..GEN

FB,BLUE,BLUE

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95A2203

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71440-95A2303

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71440-95A2404

LH80,YH80..LHD..TW..GEN

FB,BLUE,BLUE

 1
71440-95A4403

LH80,YH80..LHD..TW..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71440-95A4303

LH80,YH80..LHD..TW..GEN

VL,GRAY,SHADOW GRAY

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-95400

LH80,YH8#..LHD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-95400

LH80,YH80..LHD..GEN

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552-95403

LH80,YH8#..LHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95404

LH80,YH8#..LHD

W/HEADREST

 1
71551-95405

LH80,YH8#..LHD

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71012-95412

LH80,YH8#..LHD

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71014-95411

LH80,YH8#..LHD

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71160-95J06

LH80,YH8#..LHD

 1
71014-95412

LH80,YH8#..LHD

W/HEADREST

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-95J0003

LH80,YH8#..LHD

GRAY,SHADOW GRAY

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J0003

LH80,YH8#..LHD

GRAY,SHADOW GRAY

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540003

LH80,YH8#

GRAY,SHADOW GRAY

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-95A00

LH80,YH8#..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-95A0503

LH80,YH8#..LHD

GRAY,SHADOW GRAY

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90523-08001
90530-06001
90540-06006
91611-61020
93560-15014
