YH80L-MDP (1985)
Toyota Dyna100
Production
Aug 1985
-
Aug 1987
Engine
1Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

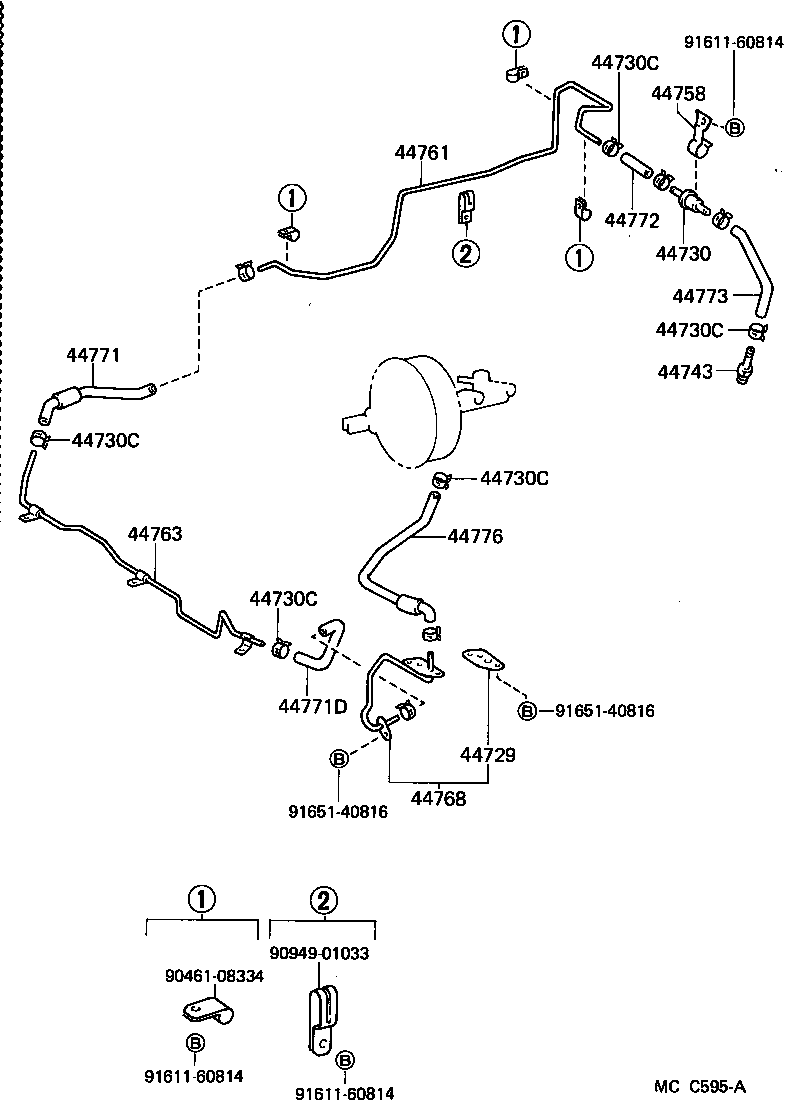

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-26280 |
YH80 FR DRUM BRAKE |
1 | ||
| 04443-26260 |
YH8# FR DISC BRAKE |
1 | ||
| 04443-26310 |
YH80 FR DRUM BRAKE,W/LSPV |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
LH80,YH8# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26290 |
LH80,YH8#..LHD 9INCH |
1 | ||
| 44610-26340 |
LH80,YH80..LHD..GEN 9INCH,W/LSPV |
1 | ||
| 44610-26310 |
LH80,YH80..LHD..GEN 8INCH |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
LH80,YH8# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
LH80,YH8# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
LH80,YH8# 9INCH |
1 | ||
| 44642-16050 |
LH80,YH80..GEN 9INCH,W/LSPV |
1 | ||
| 44642-27150 |
LH80,YH80..GEN 8INCH |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
LH80,YH8# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8508- )YH8#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
LH80,YH8# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
YH8# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH80,YH8# |
10 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH80,YH8# |
10 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH80,YH8# |
10 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH80,YH8# |
10 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH80,YH8# |
10 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90404-51031 |
YH8# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-26030 |
YH8# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-25080 |
YH8# |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-26010 |
LH80,YH8#..LHD |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-26020 |
LH80,YH8#..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-26030 |
YH8#..LHD |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-26050 |
LH80,YH8#..LHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 90445-17039 |
YH8# |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-25010 |
YH8# |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36040 |
LH80,YH8#..LHD |
1 | ||
| Common parts | ||||
| 90461-08334 | ||||
| 90949-01033 | ||||
| 91611-60814 | ||||
| 91651-40816 | ||||
