LH80R-PDBQ3 (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

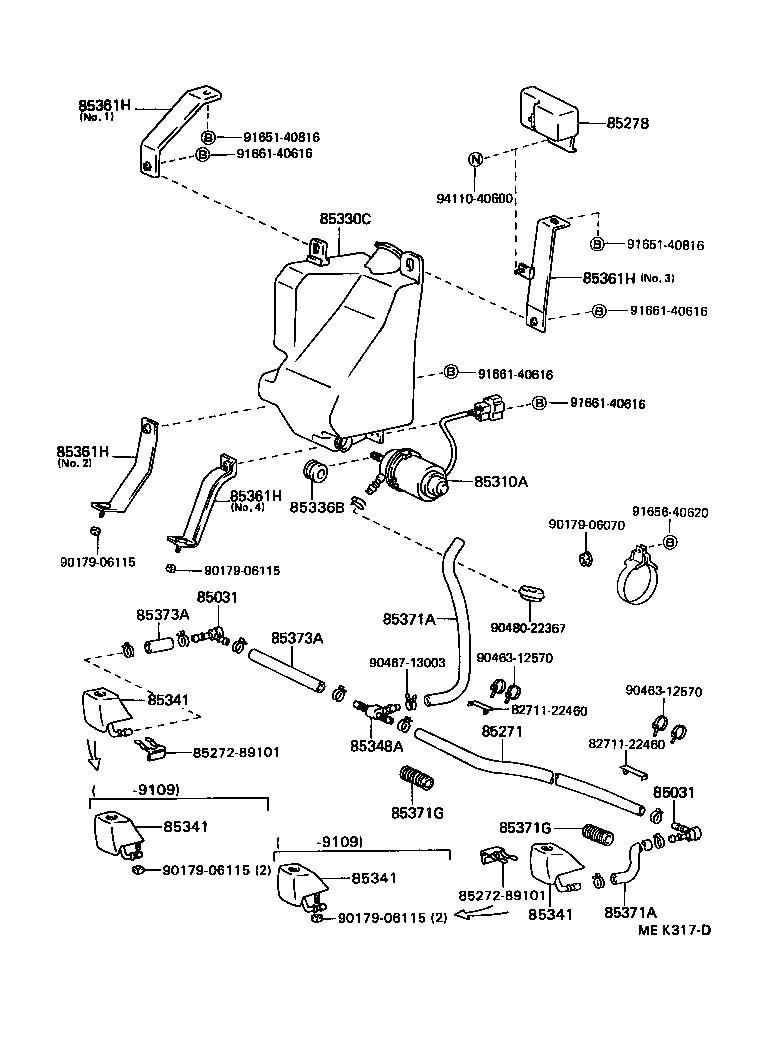

Click highlighted areas on diagram

diagram 8271122460 8271122460 85031 85031 85271 8527289101 8527289101 85278 85310A 85330C 85336B 85341 85341 85341 85341 85348A 85361H 85361H 85361H 85361H 85371A 85371A 85371G 85371G 85373A 85373A 9017906070 9017906115 9017906115 9017906115 9017906115 9046312570 9046312570 9046713003 9048022367 9165140816 9165140816 9165640620 9166140616 9166140616 9166140616 9166140616 9411040600
Part # Description Qty Price
Common parts
82711-22460
85272-89101
90179-06070
90179-06115
90463-12570
90467-13003
90480-22367
91651-40816
91656-40620
91661-40616
94110-40600
