LH80R-PDBQ3 (1987)
Toyota Dyna100
Production
Aug 1987
-
Mar 1992
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

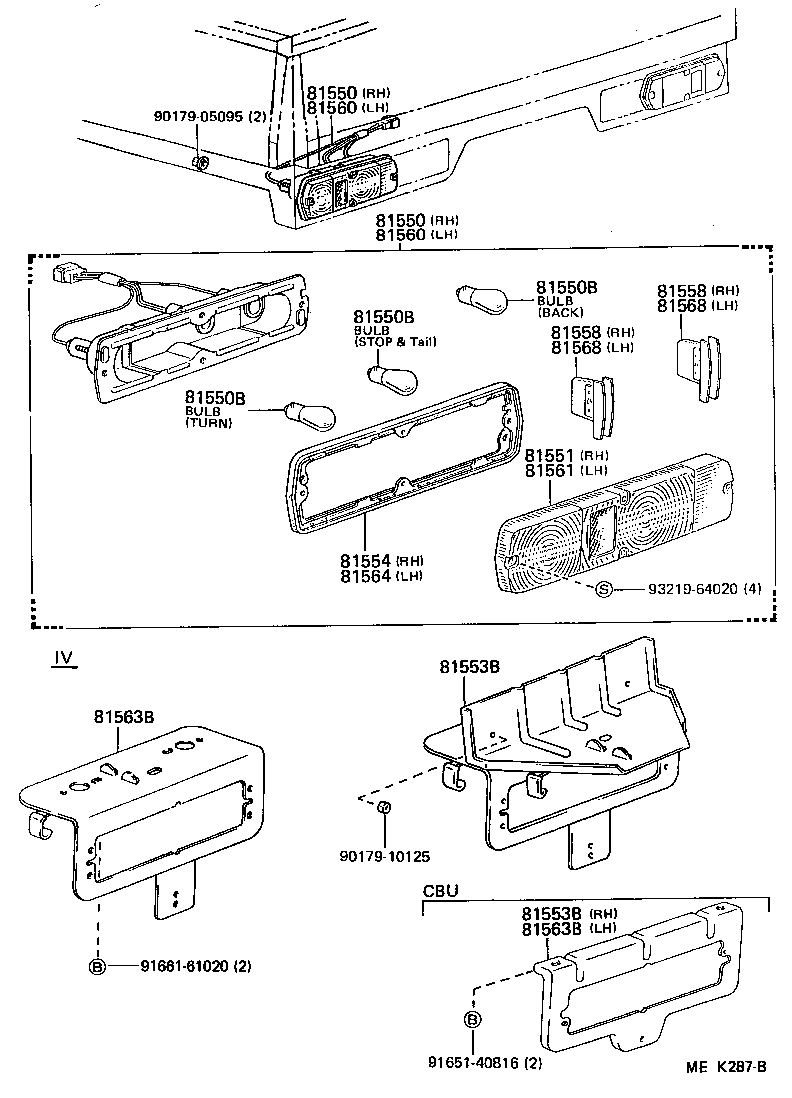

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-95A10 |
LH80,YH81..ARL,GEN |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-95A10 |
LH80,YH81..ARL,GEN |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LH80,YH81 12V 21W,TURN,BACK |
4 | ||
| 99132-21210 |
LH80,YH81 12V 21/5W,STOP & TAIL |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LH80,YH81 12V 21W,TURN,BACK |
4 | ||
| 99132-21210 |
LH80,YH81 12V 21/5W,STOP & TAIL |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
LH80,YH81 12V 21W,TURN,BACK |
4 | ||
| 99132-21210 |
LH80,YH81 12V 21/5W,STOP & TAIL |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-25060 |
LH80,YH81..ARL,GEN |
1 | ||
| 81553B - BRACKET SUB-ASSY, RR COMB LAMP, RH | ||||
| 75103-25011 |
LH80,YH81..IV |
1 | ||
| 81553B - BRACKET SUB-ASSY, RR COMB LAMP, RH | ||||
| 75103-25011 |
LH80,YH81..IV |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-25060 |
LH80,YH81..ARL,GEN |
1 | ||
| 81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH | ||||
| 81557-25060 |
LH80,YH81..ARL,GEN |
2 | ||
| 81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH | ||||
| 81557-25060 |
LH80,YH81..ARL,GEN |
2 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-95A10 |
LH80,YH81..ARL,GEN |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-95A10 |
LH80,YH81..ARL,GEN |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-25040 |
LH80,YH81..ARL,GEN |
1 | ||
| 81563B - BRACKET SUB-ASSY, RR COMB LAMP, LH | ||||
| 75104-25011 |
LH80,YH81..IV |
1 | ||
| 81563B - BRACKET SUB-ASSY, RR COMB LAMP, LH | ||||
| 75104-25011 |
LH80,YH81..IV |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-25040 |
LH80,YH81..ARL,GEN |
1 | ||
| 81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH | ||||
| 81557-25060 |
LH80,YH81..ARL,GEN |
2 | ||
| 81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH | ||||
| 81557-25060 |
LH80,YH81..ARL,GEN |
2 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 90179-10125 | ||||
| 91651-40816 | ||||
| 91661-61020 | ||||
| 93219-64020 | ||||
