LH80R-PDBQ3 (1985)
Toyota Dyna100
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

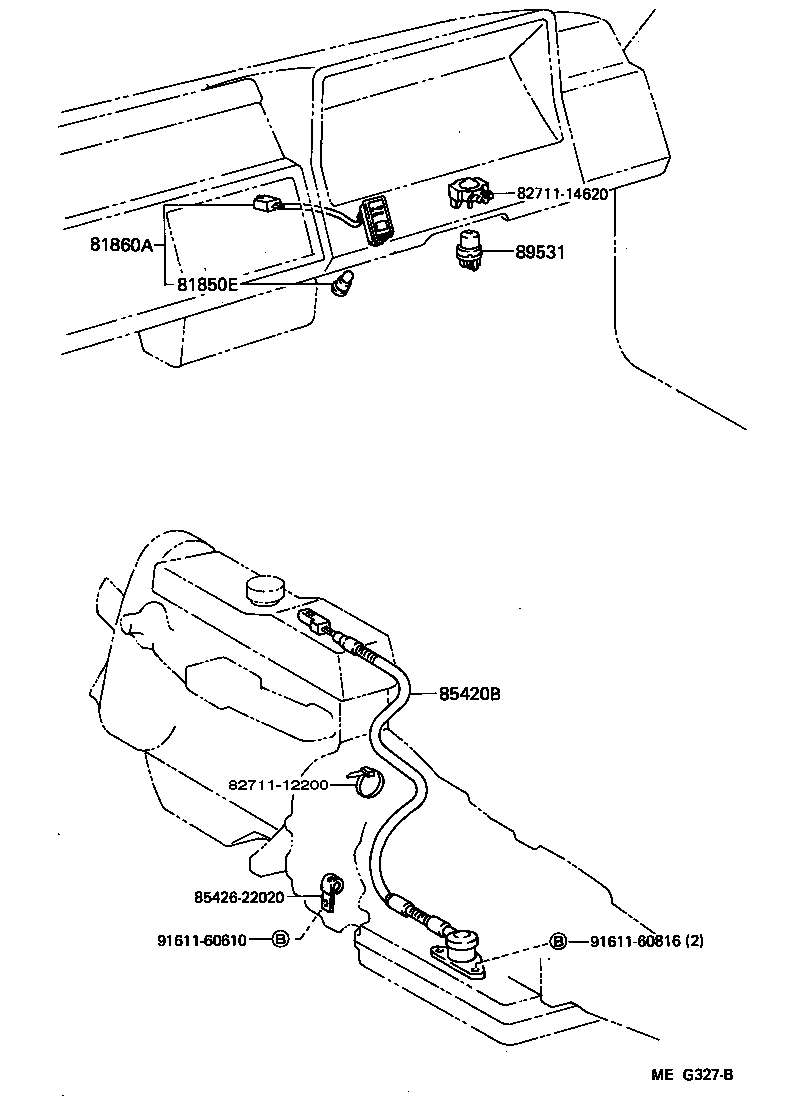

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850E - BULB, INDICATOR LAMP | ||||
| 84999-10110 |
LH80..4FC 12V 1.12W |
2 | ||
| 81860A - LAMP ASSY, TRANSMISSION INDICATOR | ||||
| 81860-20050 |
LH80..4FC |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12050 |
LH80..4FC |
1 | ||
| 89531 - RELAY, TRANSMISSION CONTROL | ||||
| 90987-03001 |
LH80..4FC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14620 | ||||
| 85426-22020 | ||||
| 91611-60610 | ||||
| 91611-60816 | ||||
