LH80R-MDBQ3 (1987)
Toyota Dyna100
Production
Aug 1987
-
Mar 1992
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

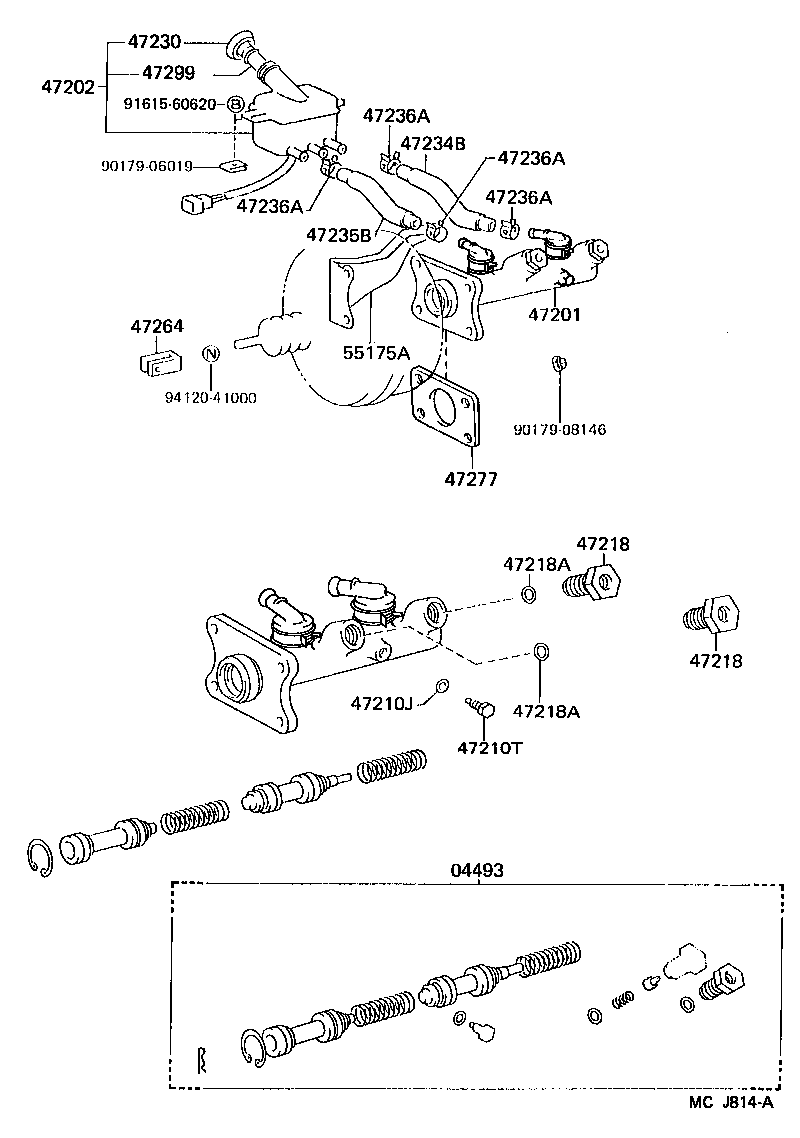

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-26150 |
LH80,YH81..ARL,EUR |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-26470 |
LH80,YH81..ARL |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36040 |
LH80,YH81..5F |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LH80,YH81 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LH80,YH81 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26050 |
LH80,YH81..ARL,EUR |
2 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26050 |
LH80,YH81..ARL,EUR |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-05014 |
LH80,YH81..ARL,EUR |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-05014 |
LH80,YH81..ARL,EUR |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
LH80,YH81 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-26100 |
LH80,YH81..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-26100 |
LH80,YH81..RHD |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LH80,YH81 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LH80,YH81 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LH80,YH81 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LH80,YH81 |
4 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LH80,YH81 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
LH80,YH81 |
1 | ||
| 55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-95A03 |
YH81;LH80..T3;LH80..TW..CBU |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 91615-60620 | ||||
| 94120-41000 | ||||
(8708- )

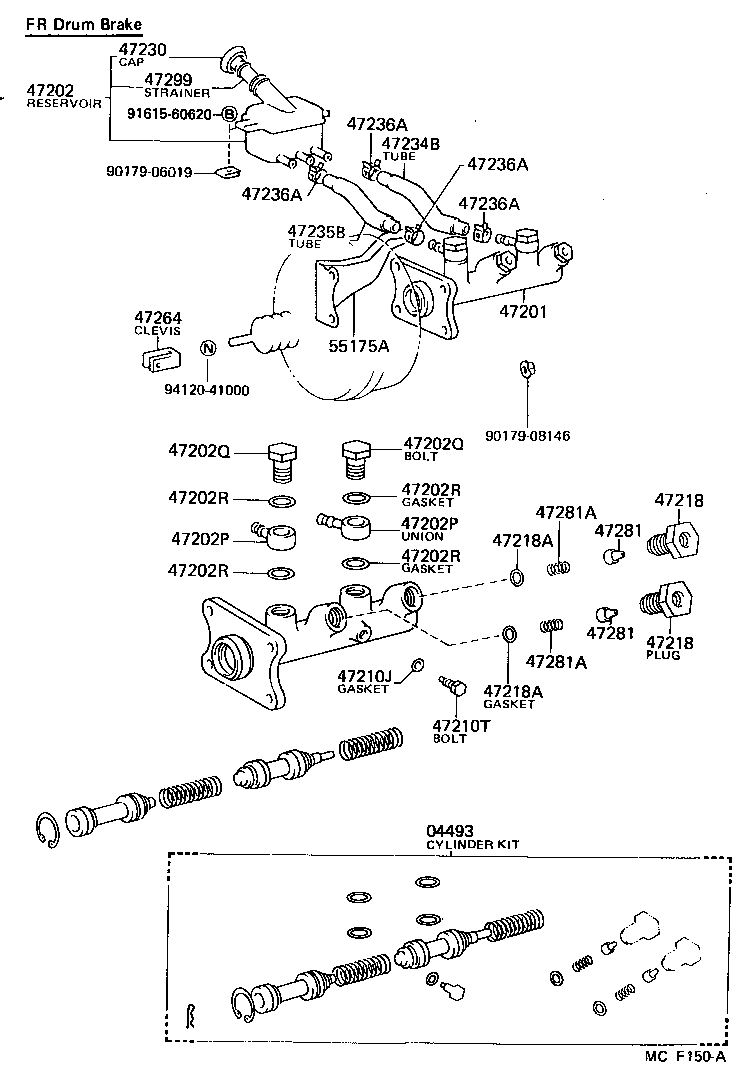

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-26150 |
LH80,YH81..ARL,EUR |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-26470 |
LH80,YH81..ARL |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36040 |
LH80,YH81..5F |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LH80,YH81 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LH80,YH81 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26050 |
LH80,YH81..ARL,EUR |
2 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-26050 |
LH80,YH81..ARL,EUR |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-05014 |
LH80,YH81..ARL,EUR |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-05014 |
LH80,YH81..ARL,EUR |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
LH80,YH81 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-26100 |
LH80,YH81..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-26100 |
LH80,YH81..RHD |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LH80,YH81 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LH80,YH81 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LH80,YH81 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LH80,YH81 |
4 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LH80,YH81 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
LH80,YH81 |
1 | ||
| 55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-95A03 |
YH81;LH80..T3;LH80..TW..CBU |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 91615-60620 | ||||
| 94120-41000 | ||||
