LH80R-MDBQ3 (1987)
Toyota Dyna100
Production
Aug 1987
-
Mar 1992
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )ARL

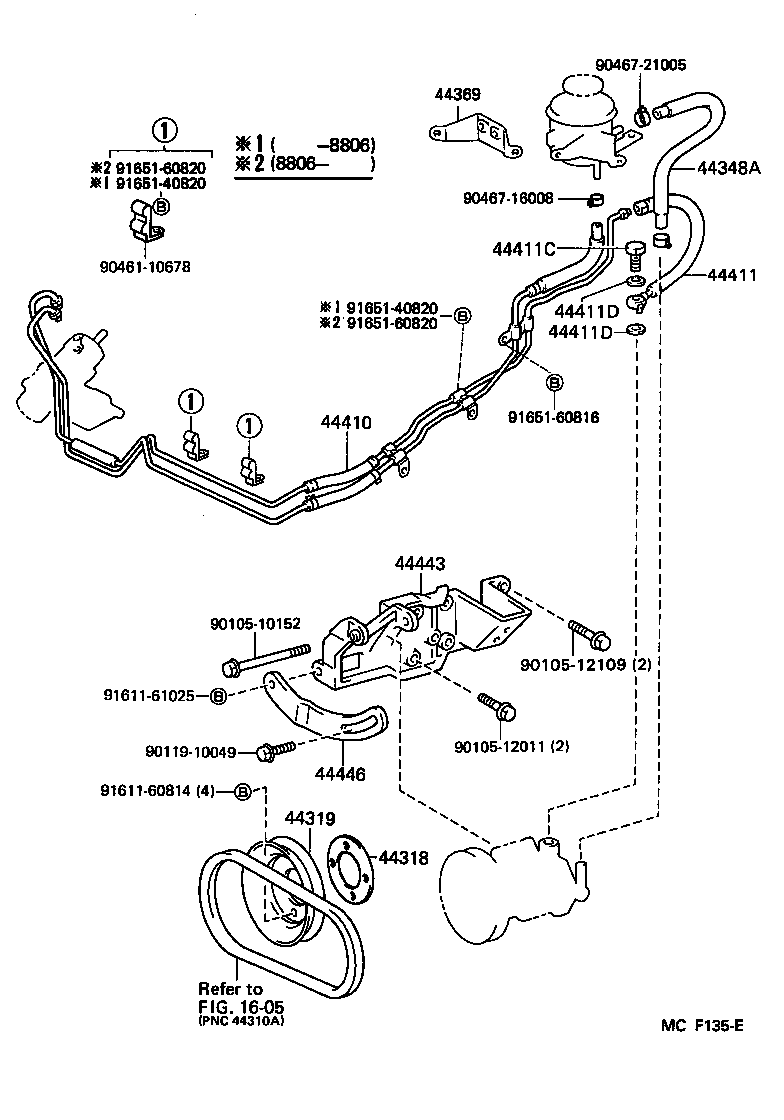

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-30030 |
LH80..ARL,EUR |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-26060 |
LH80..ARL |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44039-26010 |
LH80..ARL |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-26062 |
LH80..ARL |
1 | ||
| 44410-26340 |
LH80..ARL |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-26021 |
LH80..ARL |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16005 |
LH80..ARL,EUR |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
LH80..ARL,EUR |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
LH80..ARL,EUR |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-30080 |
LH80..ARL,EUR |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30070 |
LH80..ARL,EUR |
1 | ||
| Common parts | ||||
| 90105-10152 | ||||
| 90105-12011 | ||||
| 90105-12109 | ||||
| 90119-10049 | ||||
| 90461-10678 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91651-40820 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
