LH80R-MDBQ3 (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

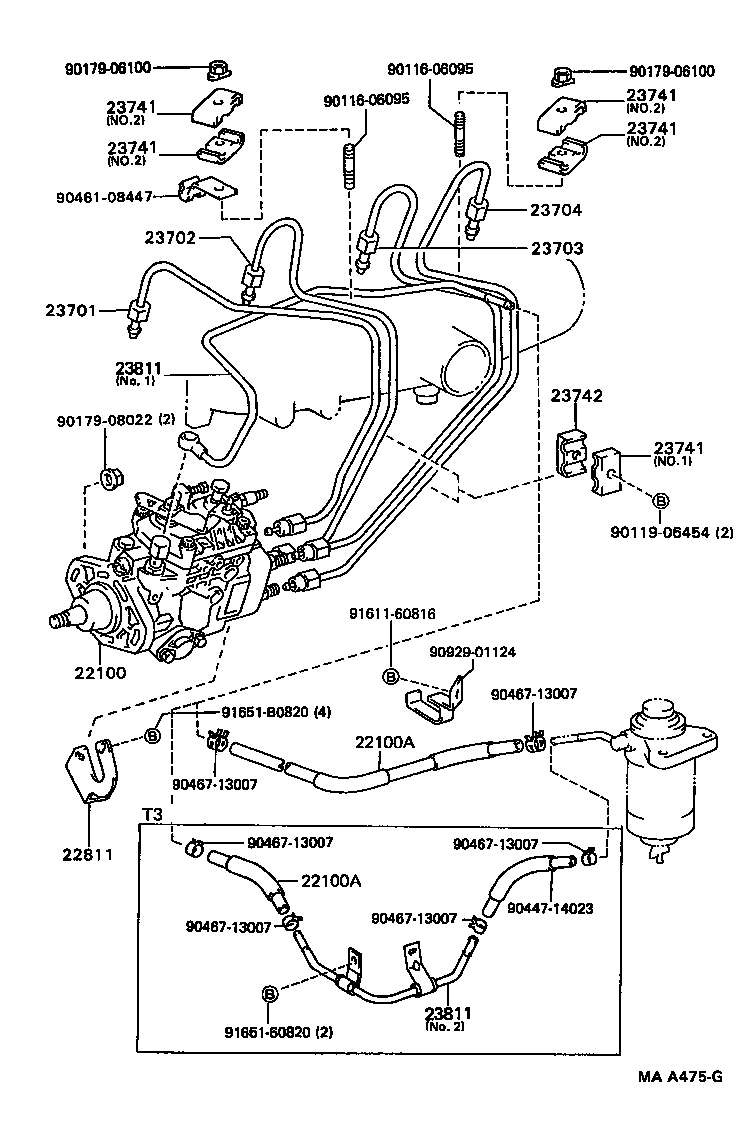

(8708-8808)2L

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741 23741 23742 23811 23811 9011606095 9011606095 9011906454 9017906100 9017906100 9017908022 9044714023 9046108447 9046713007 9046713007 9046713007 9046713007 9046713007 9046713007 9092901124 9161160816 9165160820 91651B0820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54531

2L..LH80..5F..ARL

 1
22100-54780

2L..LH80..5F..ARL

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14045

2L..LH80..T3

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14045

2L..LH80..T3

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54040

2L..LH80

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54082

2L..LH80

 1
23701-54110

2L..LH80

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54110

2L..LH80

 1
23702-54081

2L..LH80

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54050

2L..LH80

 1
23703-54090

2L..LH80

 1
23703-54091

2L..LH80

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54050

2L..LH80

 1
23704-54090

2L..LH80

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010

2L..LH80

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23801-54030

2L..LH80..T3

 1
23811-54140

2L..LH80

NO.1

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23801-54030

2L..LH80..T3

 1
23811-54140

2L..LH80

NO.1

 1
Common parts
90116-06095
90119-06454
90179-06100
90179-08022
90447-14023
90461-08447
90467-13007
90929-01124
91611-60816
91651-60820
91651-B0820

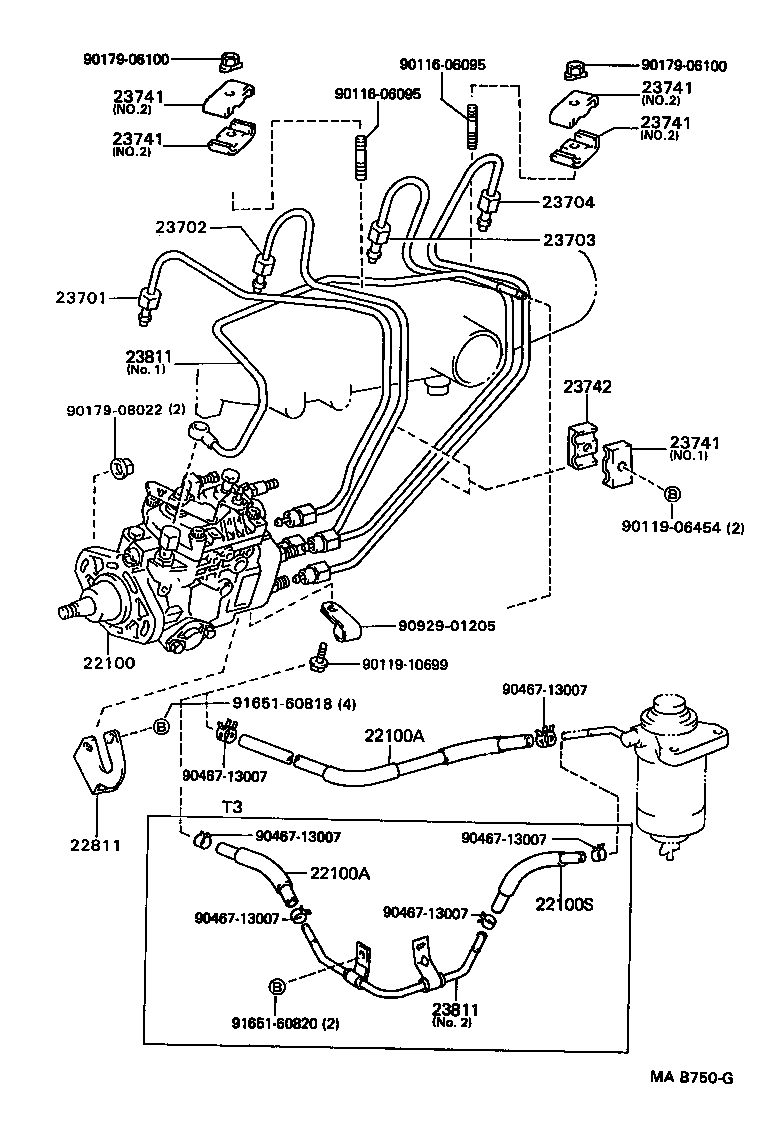

(8808- )2L

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22100S 22811 23701 23702 23703 23704 23741 23741 23741 23741 23741 23742 23811 23811 9011606095 9011606095 9011906454 9011910699 9017906100 9017906100 9017908022 9046713007 9046713007 9046713007 9046713007 9046713007 9046713007 9092901205 9165160818 9165160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54531

2L..LH80..5F..ARL

 1
22100-54780

2L..LH80..5F..ARL

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14045

2L..LH80..T3

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14045

2L..LH80..T3

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54040

2L..LH80

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54082

2L..LH80

 1
23701-54110

2L..LH80

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54110

2L..LH80

 1
23702-54081

2L..LH80

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54050

2L..LH80

 1
23703-54090

2L..LH80

 1
23703-54091

2L..LH80

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54050

2L..LH80

 1
23704-54090

2L..LH80

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH80

NO.1

 2
23741-56010

2L..LH80

NO.2

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010

2L..LH80

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23801-54030

2L..LH80..T3

 1
23811-54140

2L..LH80

NO.1

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23801-54030

2L..LH80..T3

 1
23811-54140

2L..LH80

NO.1

 1
Common parts
90116-06095
90119-06454
90119-10699
90179-06100
90179-08022
90467-13007
90929-01205
91651-60818
91651-60820
