LH80R-MDB3 (1987)
Toyota Dyna100
ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
LH80,YH81..ARL,GEN |
1 | ||
| 88412-22030 |
LH80..GEN MAKER OPTION |
1 | ||
| 88412-27010 |
LH80..GEN DEALER OPTION |
1 | ||
| 88412-22030 |
LH80,YH81..GEN |
1 | ||
| 88301A - BEARING (FOR MAGNET CLUTCH) | ||||
| 90099-10133 |
LH80..GEN;YH81..ARL,GEN |
1 | ||
| 90099-10133 |
LH80,YH81..GEN |
1 | ||
| 90099-10133 |
LH80,YH81..ARL,GEN |
1 | ||
| 88301B - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
LH80,YH81..GEN MAKER OPTION |
1 | ||
| 90099-07114 |
LH80,YH81..RHD..GEN DEALER OPTION |
1 | ||
| 90099-07094 |
LH80..GEN |
1 | ||
| 90099-07094 |
LH80,YH81..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
LH80..RHD;YH81..ARL |
1 | ||
| 88411-14050 |
LH80..GEN MAKER OPTION |
1 | ||
| 88411-14050 |
LH80..GEN |
1 | ||
| 88411-60020 |
LH80..GEN DEALER OPTION |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26290 |
LH80..GEN DEALER OPTION |
1 | ||
| 88320-26300 |
LH80..GEN MAKER OPTION |
1 | ||
| 88320-26300 |
LH80..RHD |
1 | ||
| 88320-26480 |
LH80..GEN DEALER OPTION |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-25040 |
LH80..GEN DEALER OPTION |
1 | ||
| 88410-22080 |
LH80..RHD;YH81..ARL |
1 | ||
| 88410-25070 |
LH80..GEN DEALER OPTION |
1 | ||
| 88410-22080 |
LH80..GEN MAKER OPTION |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
LH80..RHD |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
LH80,YH81..RHD..GEN DEALER OPTION |
1 | ||
| 88403-16011 |
LH80..GEN DEALER OPTION |
1 | ||
| 88403-12030 |
LH80,YH81..GEN MAKER OPTION |
1 | ||
| 88403-12030 |
LH80,YH81..GEN |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07094 | ||||
| 90099-10162 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35100 |
LH80..RHD |
1 | ||
| 88431-35170 |
LH80..RHD |
1 | ||
| 88431-35170 |
LH80..GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35100 |
LH80..RHD |
1 | ||
| 88431-35170 |
LH80..RHD |
1 | ||
| 88431-35170 |
LH80..GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-35050 |
LH80..RHD |
1 | ||
| 88444-35050 |
LH80..GEN |
1 | ||
| 88444-26100 |
LH80..RHD |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26070 |
LH80..RHD |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
LH80..GEN |
1 | ||
| 88446-35010 |
LH80..RHD |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
LH80..GEN |
1 | ||
| 88446-35010 |
LH80..RHD |
1 | ||
| 88469B - COLLAR | ||||
| 88469-30280 |
LH80..RHD |
1 | ||
| 88469-30280 |
LH80..GEN |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LH80..GEN NO.1 |
1 | ||
| 88440-35010 |
LH80..RHD NO.2 |
1 | ||
| 88440-26070 |
LH80..RHD NO.1 |
1 | ||
| 88440-35010 |
LH80..GEN NO.2 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LH80..GEN NO.1 |
1 | ||
| 88440-35010 |
LH80..RHD NO.2 |
1 | ||
| 88440-26070 |
LH80..RHD NO.1 |
1 | ||
| 88440-35010 |
LH80..GEN NO.2 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LH80..GEN NO.1 |
1 | ||
| 88440-35010 |
LH80..RHD NO.2 |
1 | ||
| 88440-26070 |
LH80..RHD NO.1 |
1 | ||
| 88440-35010 |
LH80..GEN NO.2 |
1 | ||
| Common parts | ||||
| 90099-04305 | ||||
| 90099-04321 | ||||
| 90099-04950 | ||||
| 90099-04981 | ||||
| 90119-08225 | ||||
| 90119-08474 | ||||
| 90119-10367 | ||||
| 90119-12160 | ||||
| 91611-61020 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1605 | ||||

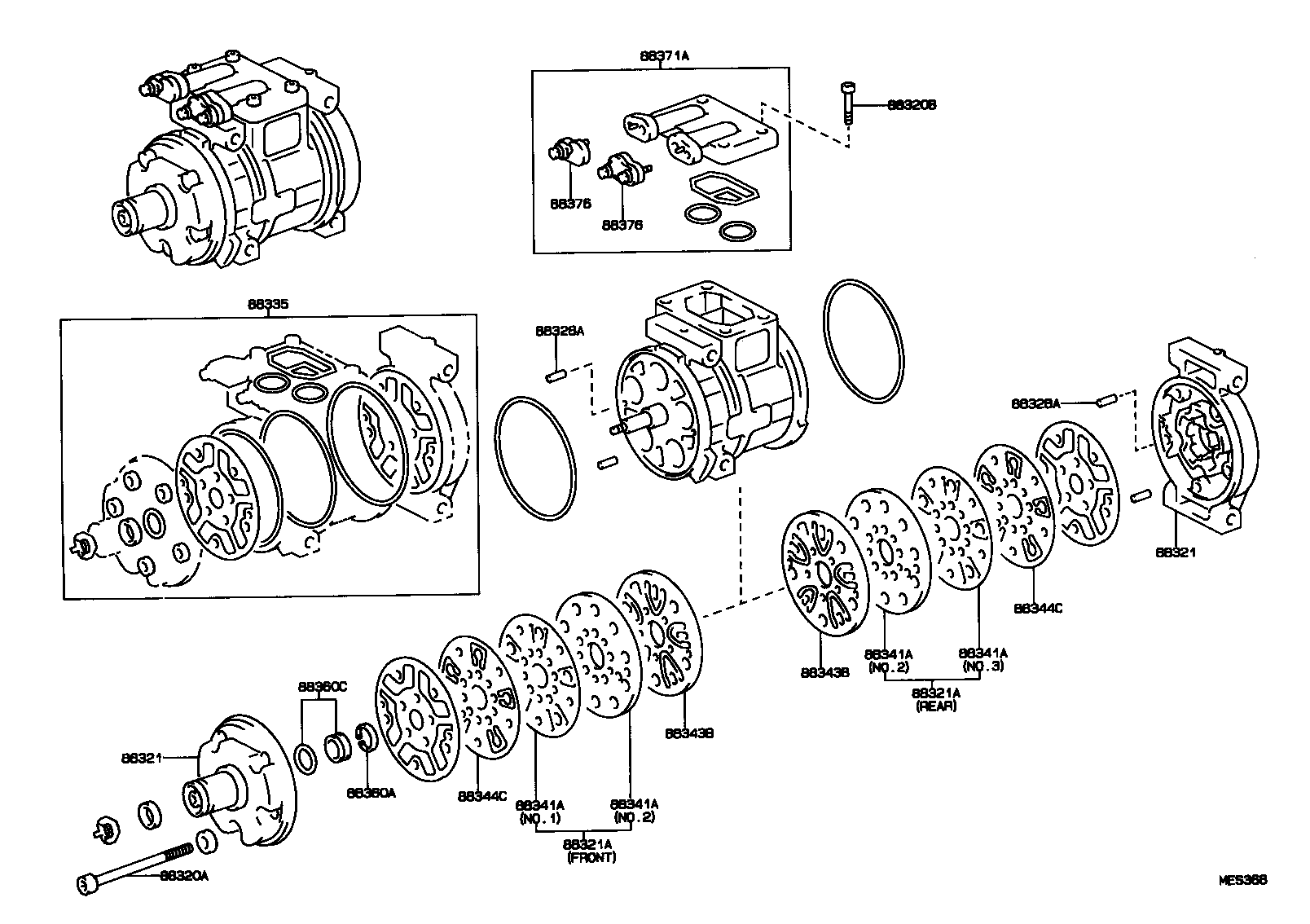

ILLUST NO. 3 OF 3(8808- )LH80..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320A - BOLT, THROUGH | ||||
| 90099-04408 |
LH80..GEN DEALER OPTION |
5 | ||
| 90099-04968 |
LH80..GEN MAKER OPTION |
5 | ||
| 90099-04968 |
LH80..GEN |
5 | ||
| 90099-04370 |
LH80..GEN DEALER OPTION |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
LH80..GEN |
4 | ||
| 90099-04924 |
LH80..GEN |
4 | ||
| 90099-04924 |
LH80..RHD |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
LH80,YH81..GEN FRONT |
1 | ||
| 88322-14020 |
LH80..GEN DEALER OPTION,REAR |
1 | ||
| 88322-14011 |
LH80..GEN MAKER OPTION,REAR |
1 | ||
| 88321-14011 |
LH80..GEN MAKER OPTION,FRONT |
1 | ||
| 88321-14021 |
LH80..GEN DEALER OPTION,FRONT |
1 | ||
| 88322-14011 |
LH80,YH81..GEN REAR |
1 | ||
| 88322-32040 |
LH80..GEN DEALER OPTION,REAR |
1 | ||
| 88321-32010 |
LH80..GEN DEALER OPTION,FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
LH80,YH81..GEN FRONT |
1 | ||
| 88322-14020 |
LH80..GEN DEALER OPTION,REAR |
1 | ||
| 88322-14011 |
LH80..GEN MAKER OPTION,REAR |
1 | ||
| 88321-14011 |
LH80..GEN MAKER OPTION,FRONT |
1 | ||
| 88321-14021 |
LH80..GEN DEALER OPTION,FRONT |
1 | ||
| 88322-14011 |
LH80,YH81..GEN REAR |
1 | ||
| 88322-32040 |
LH80..GEN DEALER OPTION,REAR |
1 | ||
| 88321-32010 |
LH80..GEN DEALER OPTION,FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
LH80,YH81..GEN FRONT |
1 | ||
| 88342-14010 |
LH80,YH81..GEN REAR |
1 | ||
| 88305-14020 |
LH80..GEN DEALER OPTION,FRONT |
1 | ||
| 88341-14010 |
LH80..GEN MAKER OPTION,FRONT |
1 | ||
| 88306-14020 |
LH80..GEN DEALER OPTION,REAR |
1 | ||
| 88342-22010 |
LH80..GEN DEALER OPTION,REAR |
1 | ||
| 88342-14010 |
LH80..GEN MAKER OPTION,REAR |
1 | ||
| 88341-22010 |
LH80..GEN DEALER OPTION,FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
LH80,YH81..GEN FRONT |
1 | ||
| 88342-14010 |
LH80,YH81..GEN REAR |
1 | ||
| 88305-14020 |
LH80..GEN DEALER OPTION,FRONT |
1 | ||
| 88341-14010 |
LH80..GEN MAKER OPTION,FRONT |
1 | ||
| 88306-14020 |
LH80..GEN DEALER OPTION,REAR |
1 | ||
| 88342-22010 |
LH80..GEN DEALER OPTION,REAR |
1 | ||
| 88342-14010 |
LH80..GEN MAKER OPTION,REAR |
1 | ||
| 88341-22010 |
LH80..GEN DEALER OPTION,FRONT |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
LH80..RHD |
4 | ||
| 90099-08058 |
LH80..GEN |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
LH80..RHD |
4 | ||
| 90099-08058 |
LH80..GEN |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
LH80..RHD |
1 | ||
| 88335-2B010 |
LH80..GEN |
1 | ||
| 88341A - VALVE | ||||
| 88342-14030 |
LH80..RHD NO.3 |
1 | ||
| 88341-14040 |
LH80..RHD NO.1 |
1 | ||
| 88341-14030 |
LH80..RHD NO.2 |
2 | ||
| 88341A - VALVE | ||||
| 88342-14030 |
LH80..RHD NO.3 |
1 | ||
| 88341-14040 |
LH80..RHD NO.1 |
1 | ||
| 88341-14030 |
LH80..RHD NO.2 |
2 | ||
| 88341A - VALVE | ||||
| 88342-14030 |
LH80..RHD NO.3 |
1 | ||
| 88341-14040 |
LH80..RHD NO.1 |
1 | ||
| 88341-14030 |
LH80..RHD NO.2 |
2 | ||
| 88341A - VALVE | ||||
| 88342-14030 |
LH80..RHD NO.3 |
1 | ||
| 88341-14040 |
LH80..RHD NO.1 |
1 | ||
| 88341-14030 |
LH80..RHD NO.2 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
LH80..GEN MAKER OPTION |
2 | ||
| 88343-14011 |
LH80,YH81..GEN |
2 | ||
| 88343-14020 |
LH80..GEN DEALER OPTION |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
LH80..GEN MAKER OPTION |
2 | ||
| 88343-14011 |
LH80,YH81..GEN |
2 | ||
| 88343-14020 |
LH80..GEN DEALER OPTION |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
LH80,YH81..GEN |
2 | ||
| 88344-30020 |
LH80..GEN DEALER OPTION |
2 | ||
| 88344-14011 |
LH80..GEN MAKER OPTION |
2 | ||
| 88344-22010 |
LH80..GEN DEALER OPTION |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
LH80,YH81..GEN |
2 | ||
| 88344-30020 |
LH80..GEN DEALER OPTION |
2 | ||
| 88344-14011 |
LH80..GEN MAKER OPTION |
2 | ||
| 88344-22010 |
LH80..GEN DEALER OPTION |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
LH80,YH81..GEN |
1 | ||
| 90096-90022 |
LH80,YH81..GEN |
1 | ||
| 90096-90022 |
LH80..RHD;YH81..GEN |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B010 |
LH80..GEN |
1 | ||
| 88360-14030 |
LH80..RHD |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-26230 |
LH80..GEN |
1 | ||
| 88371-26160 |
LH80..RHD |
1 | ||
| 88371-26231 |
LH80..GEN |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
LH80..GEN SUCTION |
1 | ||
| 88376-22020 |
LH80,YH81..GEN DISCHAGE |
1 | ||
| 88376-17020 |
LH80..GEN SUCTION |
1 | ||
| 88376-22020 |
LH80..RHD DISCHARGE |
1 | ||
| 88376-17020 |
LH80..RHD SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
LH80..GEN SUCTION |
1 | ||
| 88376-22020 |
LH80,YH81..GEN DISCHAGE |
1 | ||
| 88376-17020 |
LH80..GEN SUCTION |
1 | ||
| 88376-22020 |
LH80..RHD DISCHARGE |
1 | ||
| 88376-17020 |
LH80..RHD SUCTION |
1 | ||
