LH80R-MDB3 (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

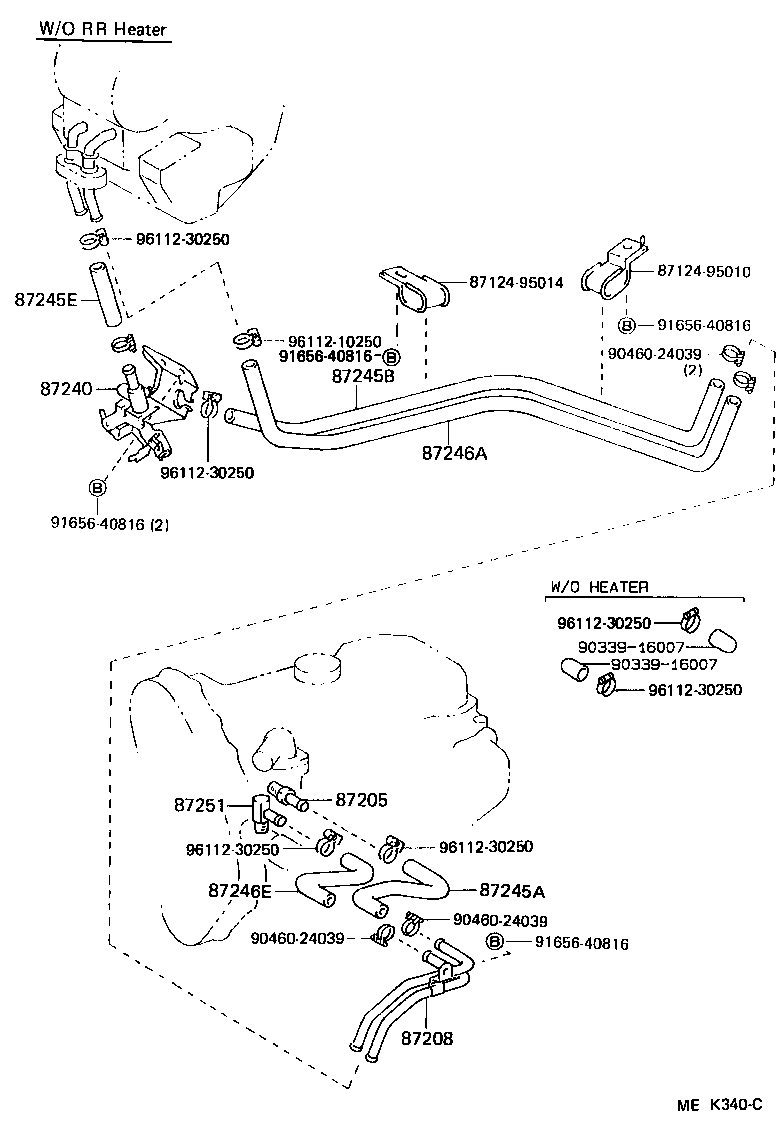

(8708- )LH80

Click highlighted areas on diagram

diagram 8712495010 8712495014 87205 87208 87240 87245A 87245B 87245E 87246A 87246E 87251 9033916007 9033916007 9046024039 9046024039 9046024039 9165640816 9165640816 9165640816 9165640816 9611210250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LH80

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95A03

LH80

 1
87208-95A14

LH80

 1
87208-95A14

LH80..IV;LH80..EUR..CBU

 1
87240 - VALVE ASSY, HEATER WATER
87240-95409

LH80,YH81..RHD

 1
87240-95407

LH80,YH81..RHD

 1
87240-95409

YH81..RHD;LH80..GEN..IV

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95039

LH80

 1
87245-95056

LH80..IV;LH80..EUR..CBU

 1
87245-95056

LH80

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LH80..RHD

*H,L=620

 1
99556-30620

LH80..GEN..IV

*H,L=620

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30135

LH80,YH81

*H,L=135

 1
99556-30100

LH80,YH81

*H,L=60

 1
99556-30135

YH81;LH80..IV;LH80..EUR..CBU

*H,L=135

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

LH80,YH81..RHD

*H,L=980

 1
99556-30740

LH80,YH81..RHD

*H,L=740

 1
99556-30740

YH81..RHD;LH80..GEN..IV

*H,L=740

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95056

LH80..IV;LH80..EUR..CBU

 1
87245-95056

LH80

 1
87245-95053

LH80

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30230

LH80..GEN

2 WAY

 1
87251-30230

LH80..GEN

2 WAY

 1
87251-30200

LH80..GEN

3 WAY

 1
87251-89113

LH80

 1
Common parts
87124-95010
87124-95014
90339-16007
90460-24039
91656-40816
96112-10250
96112-30250

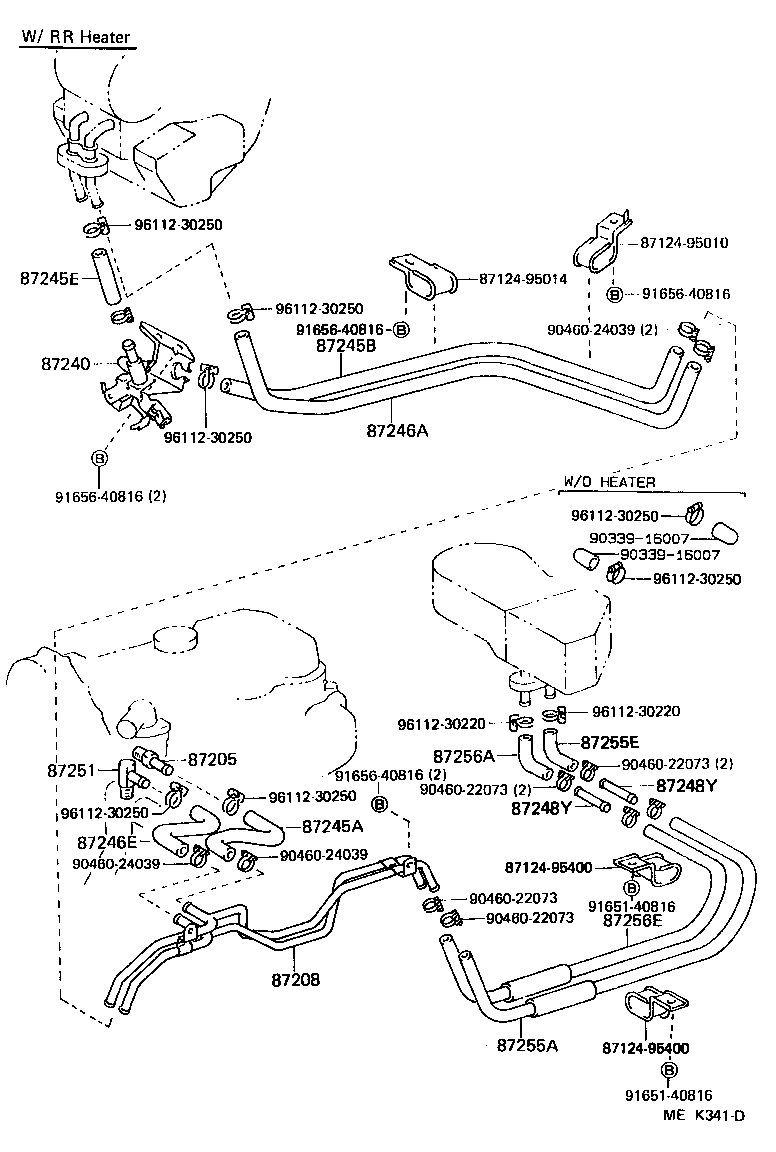

(8708- )LH80

Click highlighted areas on diagram

diagram 8712495010 8712495014 8712495400 8712495400 87205 87208 87240 87245A 87245B 87245E 87246A 87246E 87248Y 87248Y 87251 87255A 87255E 87256A 87256E 9033916007 9033916007 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9165140816 9165140816 9165640816 9165640816 9165640816 9165640816 9611230220 9611230220 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LH80

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95A03

LH80

 1
87208-95A14

LH80

 1
87208-95A14

LH80..IV;LH80..EUR..CBU

 1
87240 - VALVE ASSY, HEATER WATER
87240-95409

LH80,YH81..RHD

 1
87240-95407

LH80,YH81..RHD

 1
87240-95409

YH81..RHD;LH80..GEN..IV

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95039

LH80

 1
87245-95056

LH80..IV;LH80..EUR..CBU

 1
87245-95056

LH80

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LH80..RHD

*H,L=620

 1
99556-30620

LH80..GEN..IV

*H,L=620

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30135

LH80,YH81

*H,L=135

 1
99556-30100

LH80,YH81

*H,L=60

 1
99556-30135

YH81;LH80..IV;LH80..EUR..CBU

*H,L=135

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

LH80,YH81..RHD

*H,L=980

 1
99556-30740

LH80,YH81..RHD

*H,L=740

 1
99556-30740

YH81..RHD;LH80..GEN..IV

*H,L=740

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95056

LH80..IV;LH80..EUR..CBU

 1
87245-95056

LH80

 1
87245-95053

LH80

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30230

LH80..GEN

2 WAY

 1
87251-30230

LH80..GEN

2 WAY

 1
87251-30200

LH80..GEN

3 WAY

 1
87251-89113

LH80

 1
Common parts
87124-95010
87124-95014
87124-95400
90339-16007
90460-22073
90460-24039
91651-40816
91656-40816
96112-30220
96112-30250
