LH80R-MDB3 (1987)
Toyota Dyna100
ILLUST NO. 1 OF 2(8708-9110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95406 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55519-95403 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55519-95406 |
LH80..GEN..IV;YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55519-95404 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
YH81..EUR,GEN;LH80..TW..CBU;LH80..T3..(EUR,GEN) WHITE |
2 | ||
| 55905-10110 |
LH80,YH81..GEN W(FOOT VENTILATOR),WHITE |
1 | ||
| 55905-10110 |
LH80..GEN..IV;YH81..RHD..GEN WHITE |
3 | ||
| 55905-95707 |
LH80,YH81..RHD..GEN W(BOOST VENTILATOR) OR W(STD HEATER),BLUE |
1 | ||
| 55905-10110 |
LH80,YH81..RHD..GEN W(STD HEATER),WHITE |
3 | ||
| 55905-95707 |
LH80,YH81..RHD..GEN W(FRONT HEATER & AIR CONDITIONER),BLUE |
2 | ||
| 55905-95707 |
LH80..GEN..IV;YH81..RHD..GEN BLUE |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-36030 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 55906-36030 |
LH80,YH81..RHD |
1 | ||
| 55906-95404 |
LH80,YH81..RHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95404 |
LH80,YH81..RHD |
1 | ||
| 55907-36010 |
LH80,YH81..RHD |
1 | ||
| 55907-36010 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
LH80,YH81..RHD..GEN W(BOOST VENTILATOR) OR W(STD HEATER) |
1 | ||
| 55906-36090 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95404 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95402 |
LH80,YH81 |
1 | ||
| 55908-95402 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95404 |
LH80,YH81..RHD |
1 | ||
| 55909-95404 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-36090 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-36090 |
LH80..GEN..IV;YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-95410 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36100 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36110 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910-95409 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-95411 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
LH80,YH81 |
1 | ||
| 90480-24215 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
LH80,YH81..EUR,GEN |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-95404 |
LH80,YH81..EUR,GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
LH80,YH81..ARL,GEN |
1 | ||
| 88032-95400 |
LH80,YH81..ARL,GEN |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93540-14012 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95406 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55519-95403 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55519-95406 |
LH80..GEN..IV;YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55519-95404 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
YH81..EUR,GEN;LH80..TW..CBU;LH80..T3..(EUR,GEN) WHITE |
2 | ||
| 55905-10110 |
LH80,YH81..GEN W(FOOT VENTILATOR),WHITE |
1 | ||
| 55905-10110 |
LH80..GEN..IV;YH81..RHD..GEN WHITE |
3 | ||
| 55905-95707 |
LH80,YH81..RHD..GEN W(BOOST VENTILATOR) OR W(STD HEATER),BLUE |
1 | ||
| 55905-10110 |
LH80,YH81..RHD..GEN W(STD HEATER),WHITE |
3 | ||
| 55905-95707 |
LH80,YH81..RHD..GEN W(FRONT HEATER & AIR CONDITIONER),BLUE |
2 | ||
| 55905-95707 |
LH80..GEN..IV;YH81..RHD..GEN BLUE |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
LH80,YH81..RHD..GEN W(BOOST VENTILATOR) OR W(STD HEATER) |
1 | ||
| 55906-36090 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95404 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95402 |
LH80,YH81 |
1 | ||
| 55908-95402 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-36090 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-36090 |
LH80..GEN..IV;YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-95410 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36100 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36110 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910-95409 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-95411 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
LH80,YH81..EUR,GEN |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 90183-05103 | ||||
| 93560-15016 | ||||

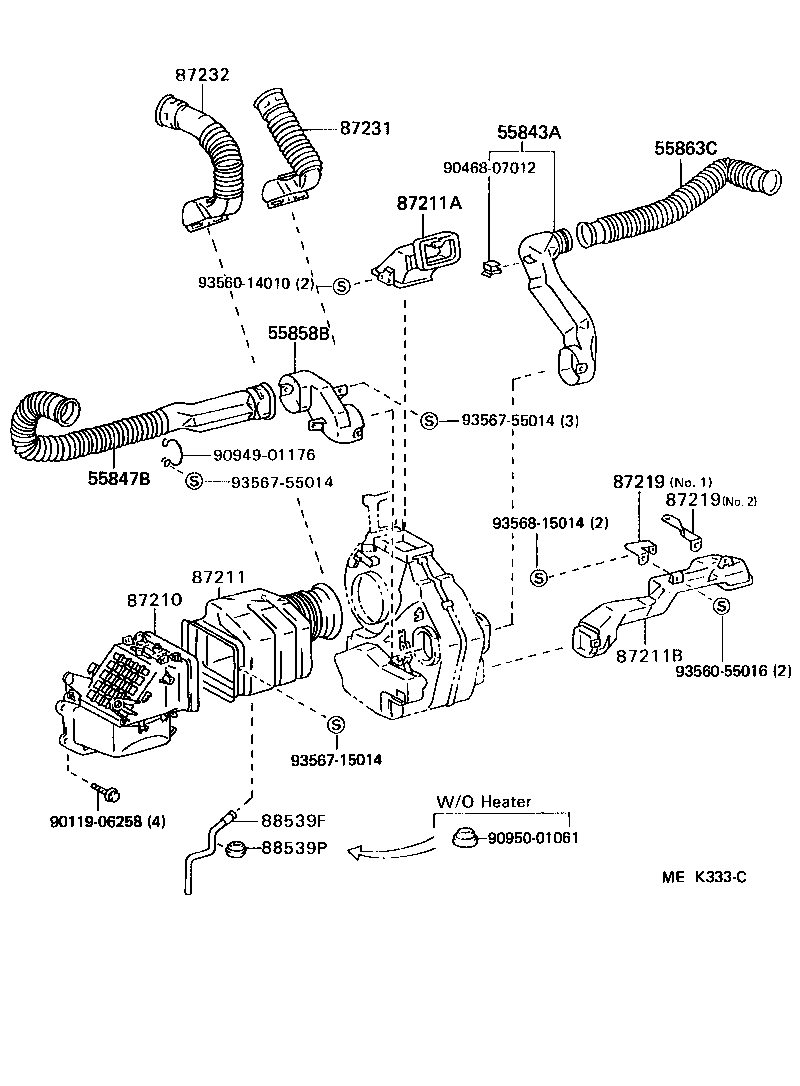

ILLUST NO. 2 OF 2(8708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-95405 |
LH80,YH81..RHD |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-95400 |
LH80,YH81 |
1 | ||
| 55858B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-95400 |
LH80,YH81..RHD |
1 | ||
| 55863C - BOOT, SIDE VENTILATOR DUCT | ||||
| 55863-95405 |
LH80,YH81 |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95402 |
LH80,YH81..RHD |
1 | ||
| 87210-95402 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95404 |
LH80,YH81..RHD |
1 | ||
| 87211-95404 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95402 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 87201-95402 |
LH80,YH81..RHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95408 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 87211-95408 |
LH80,YH81..RHD |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95403 |
LH80,YH81 NO.2 |
1 | ||
| 87214-95402 |
LH80,YH81 NO.1 |
1 | ||
| 87214-95403 |
YH81;LH80..IV;LH80..EUR..CBU NO.2 |
1 | ||
| 87214-95402 |
YH81;LH80..IV;LH80..EUR..CBU NO.1 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95403 |
LH80,YH81 NO.2 |
1 | ||
| 87214-95402 |
LH80,YH81 NO.1 |
1 | ||
| 87214-95403 |
YH81;LH80..IV;LH80..EUR..CBU NO.2 |
1 | ||
| 87214-95402 |
YH81;LH80..IV;LH80..EUR..CBU NO.1 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95405 |
LH80,YH81..RHD |
1 | ||
| 87231-95405 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95406 |
LH80,YH81..RHD |
1 | ||
| 87231-95406 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95A09 |
LH80,YH81..RHD |
1 | ||
| 88539-95A09 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 88539P - GROMMET(FOR DRAIN HOSE) | ||||
| 88897-30580 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 88897-30580 |
LH80,YH81 |
1 | ||
| Common parts | ||||
| 90119-06258 | ||||
| 90468-07012 | ||||
| 90949-01176 | ||||
| 90950-01061 | ||||
| 93560-14010 | ||||
| 93560-55016 | ||||
| 93567-15014 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||
ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95406 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55519-95403 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55519-95406 |
LH80..GEN..IV;YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55519-95404 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
YH81..EUR,GEN;LH80..TW..CBU;LH80..T3..(EUR,GEN) WHITE |
2 | ||
| 55905-10110 |
LH80,YH81..GEN W(FOOT VENTILATOR),WHITE |
1 | ||
| 55905-10110 |
LH80..GEN..IV;YH81..RHD..GEN WHITE |
3 | ||
| 55905-95707 |
LH80,YH81..RHD..GEN W(BOOST VENTILATOR) OR W(STD HEATER),BLUE |
1 | ||
| 55905-10110 |
LH80,YH81..RHD..GEN W(STD HEATER),WHITE |
3 | ||
| 55905-95707 |
LH80,YH81..RHD..GEN W(FRONT HEATER & AIR CONDITIONER),BLUE |
2 | ||
| 55905-95707 |
LH80..GEN..IV;YH81..RHD..GEN BLUE |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-36030 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 55906-36030 |
LH80,YH81..RHD |
1 | ||
| 55906-95404 |
LH80,YH81..RHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95404 |
LH80,YH81..RHD |
1 | ||
| 55907-36010 |
LH80,YH81..RHD |
1 | ||
| 55907-36010 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
LH80,YH81..RHD..GEN W(BOOST VENTILATOR) OR W(STD HEATER) |
1 | ||
| 55906-36090 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95404 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95402 |
LH80,YH81 |
1 | ||
| 55908-95402 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95404 |
YH81..RHD;LH80..GEN..IV |
1 | ||
| 55909-95404 |
LH80,YH81..RHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-36090 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-36090 |
LH80..GEN..IV;YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-95410 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36100 |
LH80,YH81..EUR,GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36110 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910-95409 |
LH80,YH81..RHD..GEN W(STD HEATER) |
1 | ||
| 55910-95411 |
LH80,YH81..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
LH80,YH81 |
1 | ||
| 90480-24215 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
LH80,YH81..EUR,GEN |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-95404 |
LH80,YH81..EUR,GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
LH80,YH81..ARL,GEN |
1 | ||
| 88032-95400 |
LH80,YH81..ARL,GEN |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93540-14012 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
