LH80R-MDB3 (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH80..5F

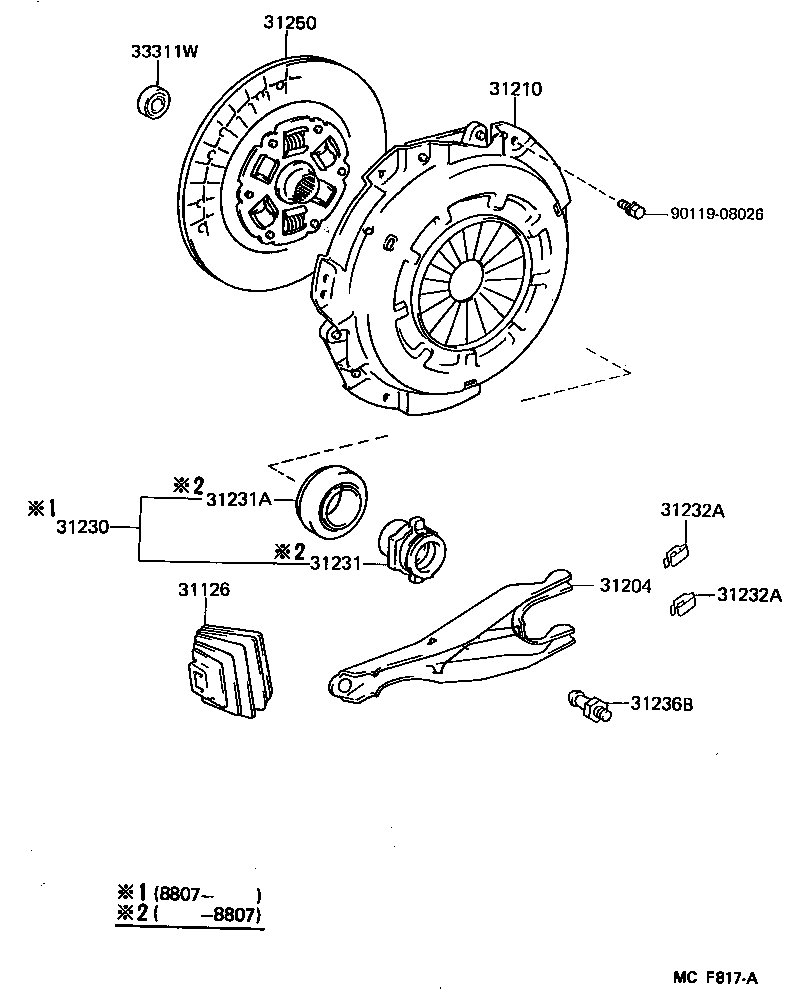

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31231 31231A 31232A 31232A 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

LH80..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20090

LH80..5F

 1
31204-35050

LH80..5F

 1
31210 - COVER ASSY, CLUTCH
31210-35090

LH80,YH81..5F

 1
31210-14130

LH80,YH81..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35070

LH80..5F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20090

LH80..5F

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

LH80,YH81..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LH80,YH81..5F

 1
31232-35030

LH80..5F

 1
31232-22010

LH80,YH81..5F

 2
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LH80,YH81..5F

 1
31232-35030

LH80..5F

 1
31232-22010

LH80,YH81..5F

 2
31236B - SUPPORT, RELEASE FORK
31236-30060

LH80,YH81..5F

 1
31250 - DISC ASSY, CLUTCH
31250-25111

LH80..5F

 1
31250-26052

LH80..GEN

 1
31250-25111

LH80..GEN

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LH80,YH81..5F

 1
Common parts
90119-08026
