LH80R-MDB3 (1987)
Toyota Dyna100
Production
Aug 1987
-
May 1995
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )2L

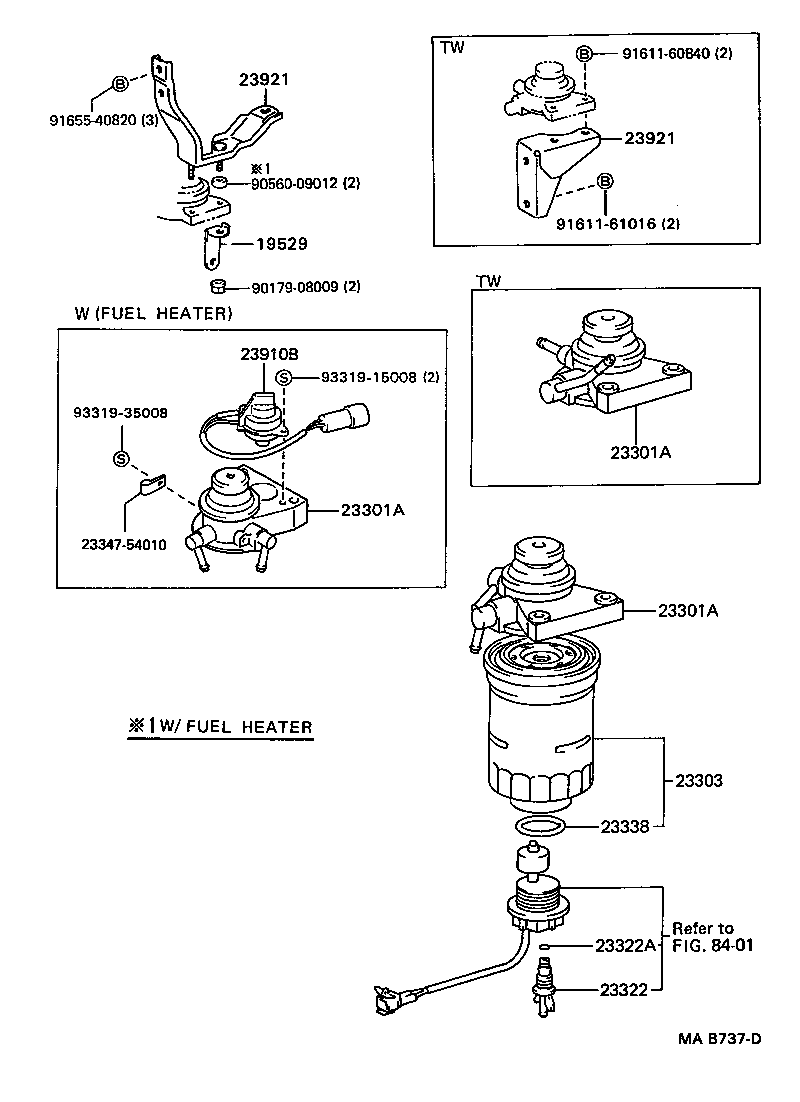

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19529 - CLAMP | ||||
| 19529-54010 |
2L..LH80..T3 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54330 |
2L..LH80..T3 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54330 |
2L..LH80..T3 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54330 |
2L..LH80..T3 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
2L..LH80 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2L..LH80 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2L..LH80 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2L..LH80 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54250 |
2L..LH80..T3 |
1 | ||
| 23921-54310 |
2L..LH80..T3 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54250 |
2L..LH80..T3 |
1 | ||
| 23921-54310 |
2L..LH80..T3 |
1 | ||
| Common parts | ||||
| 23347-54010 | ||||
| 90179-08009 | ||||
| 90560-09012 | ||||
| 91611-60840 | ||||
| 91611-61016 | ||||
| 91655-40820 | ||||
| 93319-15008 | ||||
| 93319-35008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8708-8808)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54330 |
2L..LH80..T3 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54330 |
2L..LH80..T3 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54330 |
2L..LH80..T3 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
2L..LH80 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2L..LH80 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2L..LH80 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2L..LH80 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54250 |
2L..LH80..T3 |
1 | ||
| 23921-54310 |
2L..LH80..T3 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54250 |
2L..LH80..T3 |
1 | ||
| 23921-54310 |
2L..LH80..T3 |
1 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 90179-08038 | ||||
| 90560-09012 | ||||
| 91611-60840 | ||||
| 91611-61016 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
