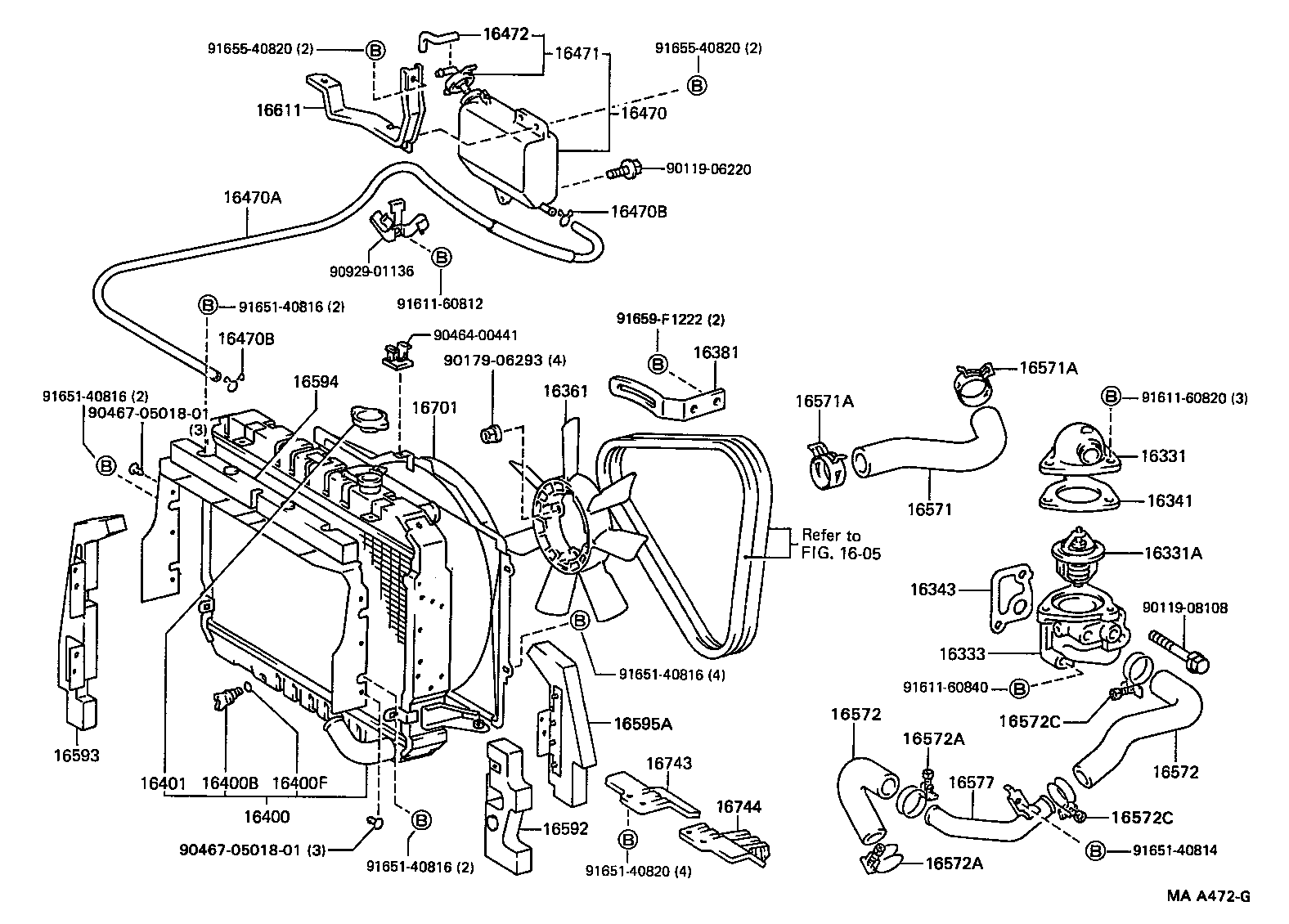

LH80R-MDB3 (1987)
Toyota Dyna100
(8708-8808)2L..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
2L..LH80 |
1 | ||
| 16331-54090 |
2L..LH80 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2L..LH80 *WAX 88-100 |
1 | ||
| 90916-03099 |
2L..LH80 *WAX 88-100 |
2 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
2L..LH80 |
1 | ||
| 16303-54040 |
2L..LH80..RHD |
1 | ||
| 16333-54122 |
2L..LH80..RHD |
1 | ||
| 16333-54121 |
2L..LH80..RHD |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
2L..LH80 |
1 | ||
| 16341-54040 |
2L..LH80 |
1 | ||
| 16341-54030 |
2L..LH80 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
2L..LH80 |
1 | ||
| 16343-54040 |
2L..LH80 |
1 | ||
| 16343-54030 |
2L..LH80 |
1 | ||
| 16361 - FAN | ||||
| 16361-54040 |
2L..LH80 |
1 | ||
| 16361-54020 |
2L..LH80 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54060 |
2L..LH80 |
1 | ||
| 16381-54011 |
2L..LH80 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54710 |
2L..LH80..RHD..5F |
1 | ||
| 16400-54460 |
2L..LH80..RHD..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
2L..LH80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
2L..LH80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
2L..LH80 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54141 |
2L..LH80..T3 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12088 |
2L..LH80..RHD L=1435 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LH80 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LH80 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2L..LH80..T3 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2L..LH80..T3 |
2 | ||
| 85338-71030 |
2L..LH80..T3 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54240 |
2L..LH80 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L..LH80 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L..LH80 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54070 |
2L..LH80 RADIATOR SIDE |
1 | ||
| 16572-54230 |
2L..LH80 ENGINE SIDE |
1 | ||
| 16572-54300 |
2L..LH80 ENGINE SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54070 |
2L..LH80 RADIATOR SIDE |
1 | ||
| 16572-54230 |
2L..LH80 ENGINE SIDE |
1 | ||
| 16572-54300 |
2L..LH80 ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L..LH80 ENGINE SIDE |
1 | ||
| 96111-10500 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10460 |
2L..LH80 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L..LH80 ENGINE SIDE |
1 | ||
| 96111-10500 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10460 |
2L..LH80 RADIATOR SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10460 |
2L..LH80 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10460 |
2L..LH80 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54130 |
2L..LH80 |
1 | ||
| 16577-54100 |
2L..LH80 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54040 |
2L..LH80..RHD |
1 | ||
| 16592-54010 |
2L..LH80..RHD |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54030 |
2L..LH80..RHD |
1 | ||
| 16593-54040 |
2L..LH80..GEN W(AIR CONDITIONER) |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54030 |
2L..LH80 |
1 | ||
| 16594-54070 |
2L..LH80 |
1 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-54030 |
2L..LH80..RHD |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54080 |
2L..LH80..T3 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54071 |
2L..LH80 |
1 | ||
| 16701-54210 |
2L..LH80 |
1 | ||
| 16743 - PROTECTOR, FAN SHROUD | ||||
| 16743-54010 |
2L..LH80 |
1 | ||
| 16744-54010 |
2L..LH80 LH |
1 | ||
| 16743-54010 |
2L..LH80 RH |
1 | ||
| 16744 - PROTECTOR, FAN SHROUD, LH | ||||
| 16744-54010 |
2L..LH80 |
1 | ||
| Common parts | ||||
| 90119-06220 | ||||
| 90119-08108 | ||||
| 90179-06293 | ||||
| 90464-00441 | ||||
| 90467-0501801 | ||||
| 90929-01136 | ||||
| 91611-60812 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91655-40820 | ||||
| 91659-F1222 | ||||
| Linked diagrams | ||||
| 1605 | ||||

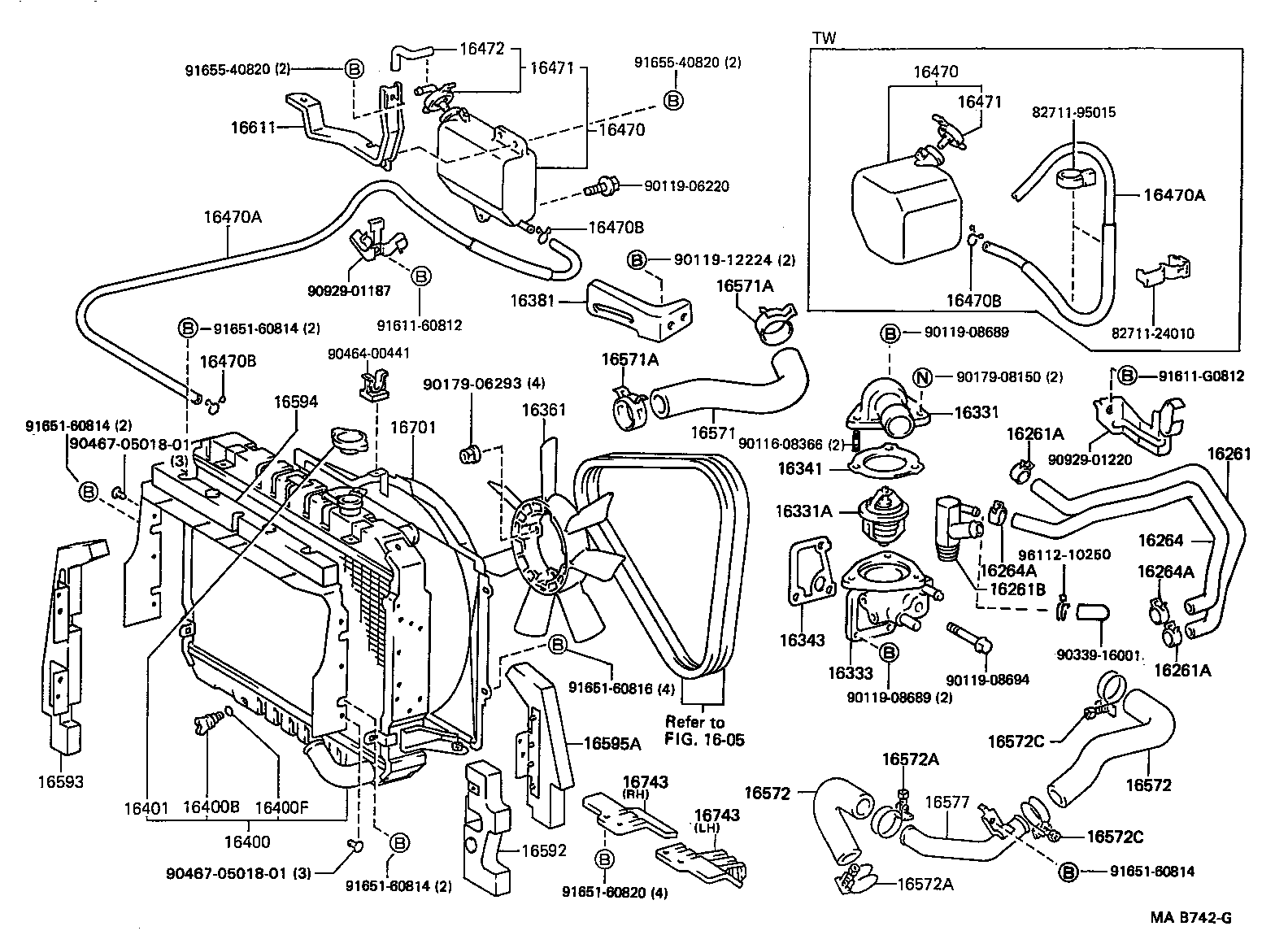

(8808- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
2L..LH80 |
1 | ||
| 16331-54090 |
2L..LH80 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2L..LH80 *WAX 88-100 |
1 | ||
| 90916-03099 |
2L..LH80 *WAX 88-100 |
2 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
2L..LH80 |
1 | ||
| 16303-54040 |
2L..LH80..RHD |
1 | ||
| 16333-54122 |
2L..LH80..RHD |
1 | ||
| 16333-54121 |
2L..LH80..RHD |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
2L..LH80 |
1 | ||
| 16341-54040 |
2L..LH80 |
1 | ||
| 16341-54030 |
2L..LH80 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
2L..LH80 |
1 | ||
| 16343-54040 |
2L..LH80 |
1 | ||
| 16343-54030 |
2L..LH80 |
1 | ||
| 16361 - FAN | ||||
| 16361-54040 |
2L..LH80 |
1 | ||
| 16361-54020 |
2L..LH80 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54060 |
2L..LH80 |
1 | ||
| 16381-54011 |
2L..LH80 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54710 |
2L..LH80..RHD..5F |
1 | ||
| 16400-54460 |
2L..LH80..RHD..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
2L..LH80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
2L..LH80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
2L..LH80 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54141 |
2L..LH80..T3 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54141 |
2L..LH80..T3 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12088 |
2L..LH80..RHD L=1435 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12088 |
2L..LH80..RHD L=1435 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LH80 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LH80 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LH80 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2L..LH80..T3 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2L..LH80..T3 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2L..LH80..T3 |
2 | ||
| 85338-71030 |
2L..LH80..T3 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54240 |
2L..LH80 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L..LH80 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L..LH80 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54070 |
2L..LH80 RADIATOR SIDE |
1 | ||
| 16572-54230 |
2L..LH80 ENGINE SIDE |
1 | ||
| 16572-54300 |
2L..LH80 ENGINE SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54070 |
2L..LH80 RADIATOR SIDE |
1 | ||
| 16572-54230 |
2L..LH80 ENGINE SIDE |
1 | ||
| 16572-54300 |
2L..LH80 ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L..LH80 ENGINE SIDE |
1 | ||
| 96111-10500 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10460 |
2L..LH80 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L..LH80 ENGINE SIDE |
1 | ||
| 96111-10500 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10460 |
2L..LH80 RADIATOR SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10460 |
2L..LH80 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10460 |
2L..LH80 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54130 |
2L..LH80 |
1 | ||
| 16577-54100 |
2L..LH80 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-54040 |
2L..LH80..RHD |
1 | ||
| 16592-54010 |
2L..LH80..RHD |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54030 |
2L..LH80..RHD |
1 | ||
| 16593-54040 |
2L..LH80..GEN W(AIR CONDITIONER) |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54030 |
2L..LH80 |
1 | ||
| 16594-54070 |
2L..LH80 |
1 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-54030 |
2L..LH80..RHD |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54080 |
2L..LH80..T3 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54071 |
2L..LH80 |
1 | ||
| 16701-54210 |
2L..LH80 |
1 | ||
| 16743 - PROTECTOR, FAN SHROUD | ||||
| 16743-54010 |
2L..LH80 |
1 | ||
| 16744-54010 |
2L..LH80 LH |
1 | ||
| 16743-54010 |
2L..LH80 RH |
1 | ||
| 16743 - PROTECTOR, FAN SHROUD | ||||
| 16743-54010 |
2L..LH80 |
1 | ||
| 16744-54010 |
2L..LH80 LH |
1 | ||
| 16743-54010 |
2L..LH80 RH |
1 | ||
| Common parts | ||||
| 82711-24010 | ||||
| 82711-95015 | ||||
| 90116-08366 | ||||
| 90119-06220 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06293 | ||||
| 90179-08150 | ||||
| 90339-16001 | ||||
| 90464-00441 | ||||
| 90467-0501801 | ||||
| 90929-01187 | ||||
| 90929-01220 | ||||
| 91611-60812 | ||||
| 91611-G0812 | ||||
| 91651-60814 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||
