LH80R-MDB (1987)
Toyota Dyna100

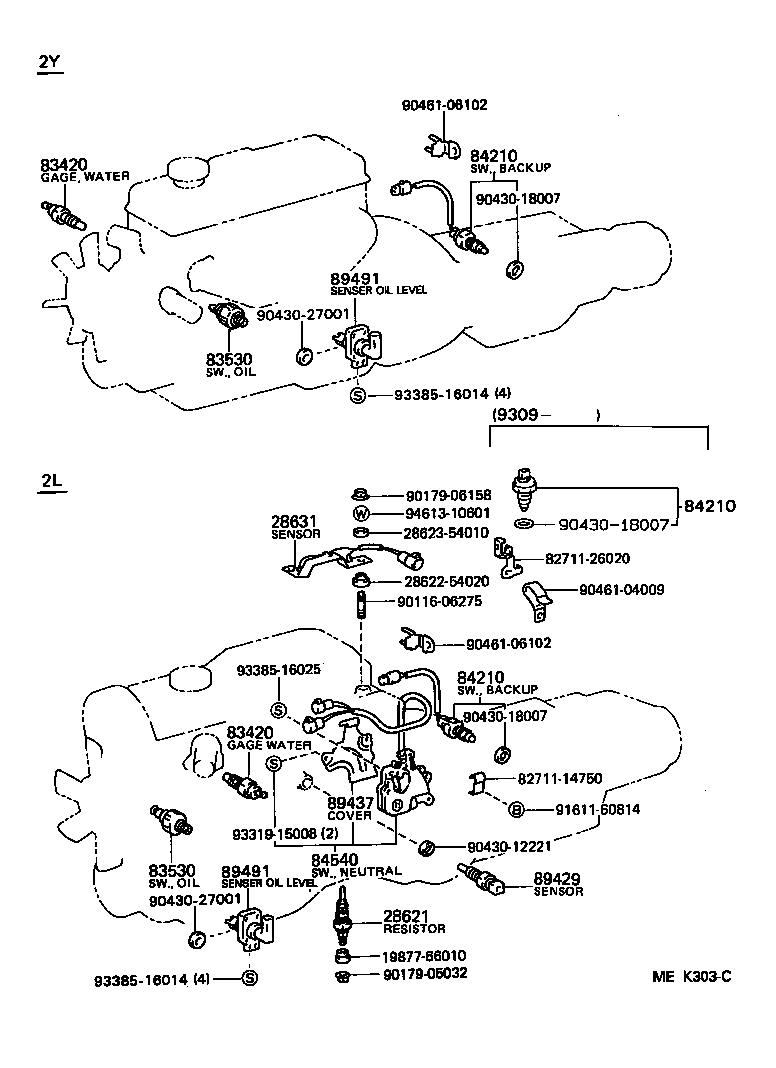

ILLUST NO. 1 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54080 |
2L..LH80..GEN..CBU |
1 | ||
| 28621-54031 |
2L..LH80..GEN..CBU |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54040 |
2L..LH80..GEN..CBU |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LH80 NIPPONDENSO |
1 | ||
| 83420-20030 |
LH80 YAZAKI |
1 | ||
| 83420-20020 |
LH80,YH81 |
1 | ||
| 83420-20030 |
LH80,YH81 YAZAKI |
1 | ||
| 83420-16040 |
LH80,YH81 NIPPONDENSO |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LH80 NIPPONDENSO |
1 | ||
| 83420-20030 |
LH80 YAZAKI |
1 | ||
| 83420-20020 |
LH80,YH81 |
1 | ||
| 83420-20030 |
LH80,YH81 YAZAKI |
1 | ||
| 83420-16040 |
LH80,YH81 NIPPONDENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH80 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH80,YH81..5F |
1 | ||
| 84210-12040 |
LH80,YH81 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH80,YH81..5F |
1 | ||
| 84210-12040 |
LH80,YH81 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH80,YH81..5F |
1 | ||
| 84210-12040 |
LH80,YH81 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LH80..GEN..CBU |
1 | ||
| 89422-20010 |
LH80..GEN..CBU |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26100 |
LH80 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26100 |
LH80 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-14750 | ||||
| 82711-26020 | ||||
| 90116-06275 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-04009 | ||||
| 90461-06102 | ||||
| 91611-60814 | ||||
| 93319-15008 | ||||
| 93385-16014 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||

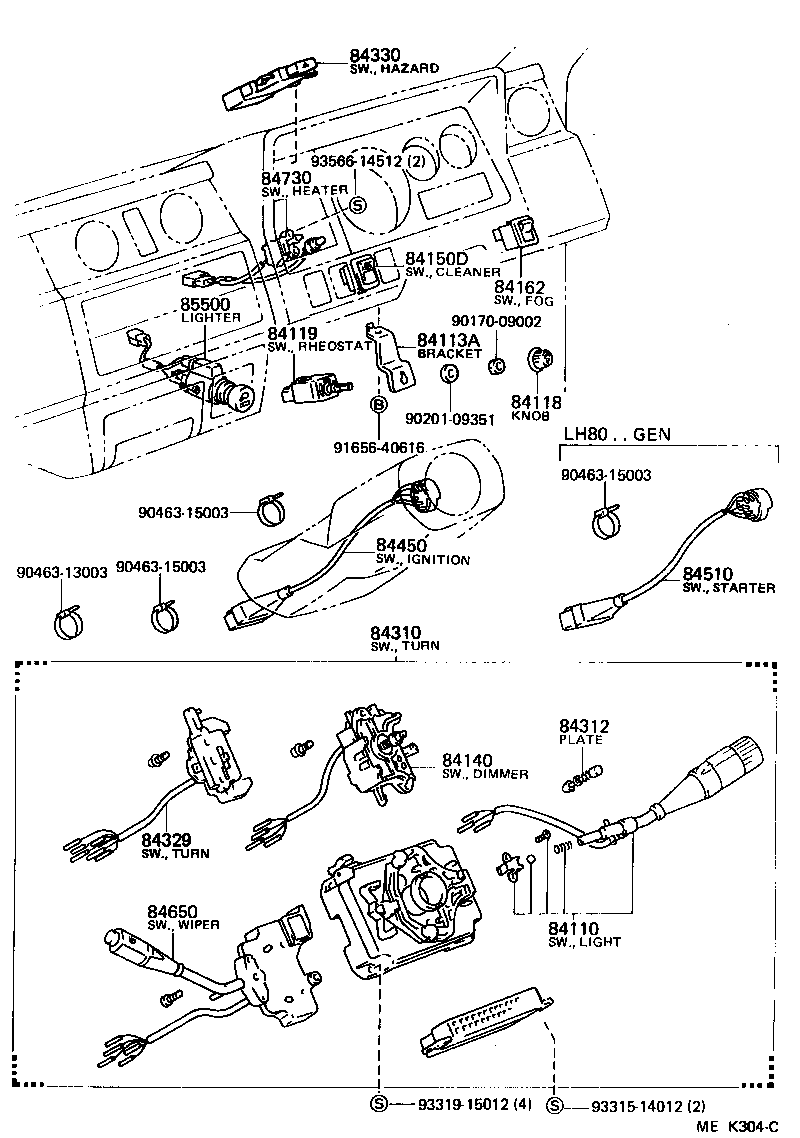

ILLUST NO. 2 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39305 |
LH80,YH81..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36090 |
LH80,YH81..RHD |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84162-95402 |
LH80,YH81..GEN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-25140 |
LH80,YH81..RHD |
1 | ||
| 84310-36360 |
LH80,YH81..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LH80,YH81 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36010 |
LH80,YH81..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95401 |
LH80,YH81 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36030 |
LH80..GEN..CBU |
1 | ||
| 84510 - SWITCH ASSY, STARTER | ||||
| 84510-36100 |
LH80..GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36270 |
LH80,YH81..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84652-25040 |
LH80,YH81..RHD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
LH80;YH81..RHD;YH81..EUR;YH81..LHD..T3..GEN |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95A04 |
LH80,YH81 |
1 | ||
| Common parts | ||||
| 90170-09002 | ||||
| 90201-09351 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 91656-40616 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||

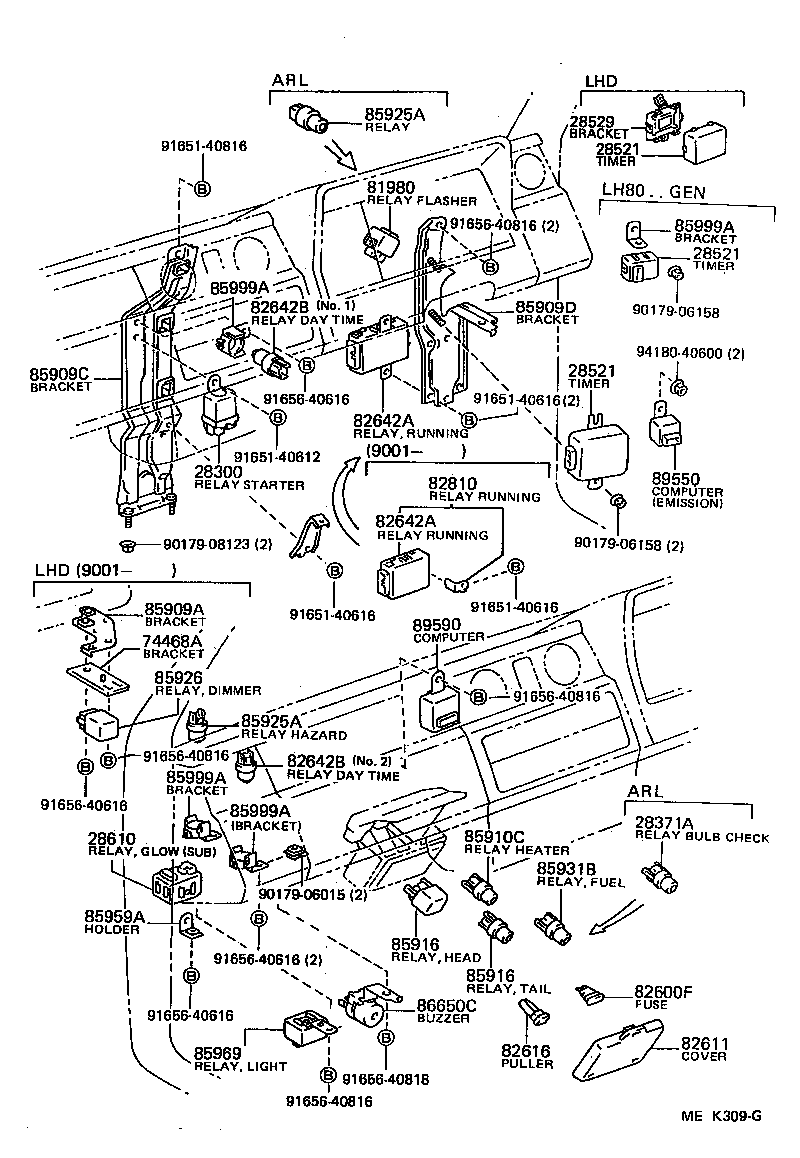

ILLUST NO. 3 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
2L..LH80 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54181 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54240 |
2L..LH80..GEN FUJITSUTEN |
1 | ||
| 28521-54460 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54470 |
2L..LH80..GEN |
1 | ||
| 28521-54480 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54340 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54021 |
2L..LH80..GEN NIPPONDENSO |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54181 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54240 |
2L..LH80..GEN FUJITSUTEN |
1 | ||
| 28521-54460 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54470 |
2L..LH80..GEN |
1 | ||
| 28521-54480 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54340 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54021 |
2L..LH80..GEN NIPPONDENSO |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54181 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54240 |
2L..LH80..GEN FUJITSUTEN |
1 | ||
| 28521-54460 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54470 |
2L..LH80..GEN |
1 | ||
| 28521-54480 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54340 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28521-54021 |
2L..LH80..GEN NIPPONDENSO |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-54230 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28529-54220 |
2L..LH80..GEN..CBU IRELAND SPEC |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64080 |
2L..LH80..GEN..CBU SUB,MAIN |
1 | ||
| 28610-64060 |
2L..LH80..GEN..CBU IRELAND SPEC,MAIN |
1 | ||
| 28610-54021 |
2L..LH80..GEN |
1 | ||
| 28610-64130 |
2L..LH80..GEN..CBU IRELAND SPEC,MAIN |
1 | ||
| 28610-54340 |
2L..LH80..GEN..CBU IRELAND SPEC,SUB |
1 | ||
| 28610-54021 |
2L..LH80..GEN..CBU SUB,SUB |
1 | ||
| 28610-54021 |
2L..LH80..RHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37040 |
LH80,YH81 |
1 | ||
| 81980-16010 |
LH80,YH81 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LH80,YH81 10A |
2 | ||
| 90982-09003 |
LH80,YH81 15A |
8 | ||
| 90982-09004 |
LH80,YH81 20A,YELLOW |
2 | ||
| 90982-09003 |
LH80;YH81..ARL,GEN 15A |
8 | ||
| 90982-09002 |
LH80;YH81..ARL,GEN 10A |
2 | ||
| 90982-09004 |
LH80;YH81..ARL,GEN 20A,YELLOW |
2 | ||
| 90982-09005 |
LH80..GEN 7.5A |
4 | ||
| 90982-09004 |
LH80,YH81 20A,YELLOW |
2 | ||
| 90982-09005 |
LH80..GEN..CBU 7.5A |
3 | ||
| 90982-09002 |
LH80,YH81 10A |
2 | ||
| 90982-09003 |
LH80,YH81 15A |
8 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95013 |
LH80,YH81 |
1 | ||
| 82611-95011 |
LH80,YH81 |
1 | ||
| 82611-95012 |
LH80,YH81 |
1 | ||
| 82611-95013 |
LH80,YH81 |
1 | ||
| 82611-95013 |
LH80;YH81..ARL,GEN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH80,YH81 |
1 | ||
| 82616-12010 |
LH80;YH81..ARL,GEN |
1 | ||
| 82616-12010 |
LH80,YH81 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95010 |
LH80,YH81..RHD |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-95400 |
LH80,YH81..RHD |
1 | ||
| 85907-37010 |
LH80,YH81..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH80;YH81..EUR |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
YH81;LH80..T3;LH80..TW..CBU HEAD |
1 | ||
| 90987-01003 |
YH81;LH80..T3;LH80..TW..CBU TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
YH81;LH80..T3;LH80..TW..CBU HEAD |
1 | ||
| 90987-01003 |
YH81;LH80..T3;LH80..TW..CBU TAIL |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36010 |
LH80 |
1 | ||
| 85959-36010 |
LH80..GEN |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
LH80..GEN |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
LH80..GEN |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
LH80..GEN |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
LH80..GEN |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-95A05 |
LH80..RHD |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-36140 |
LH80,YH81 |
1 | ||
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 91656-40818 | ||||
| 94180-40600 | ||||

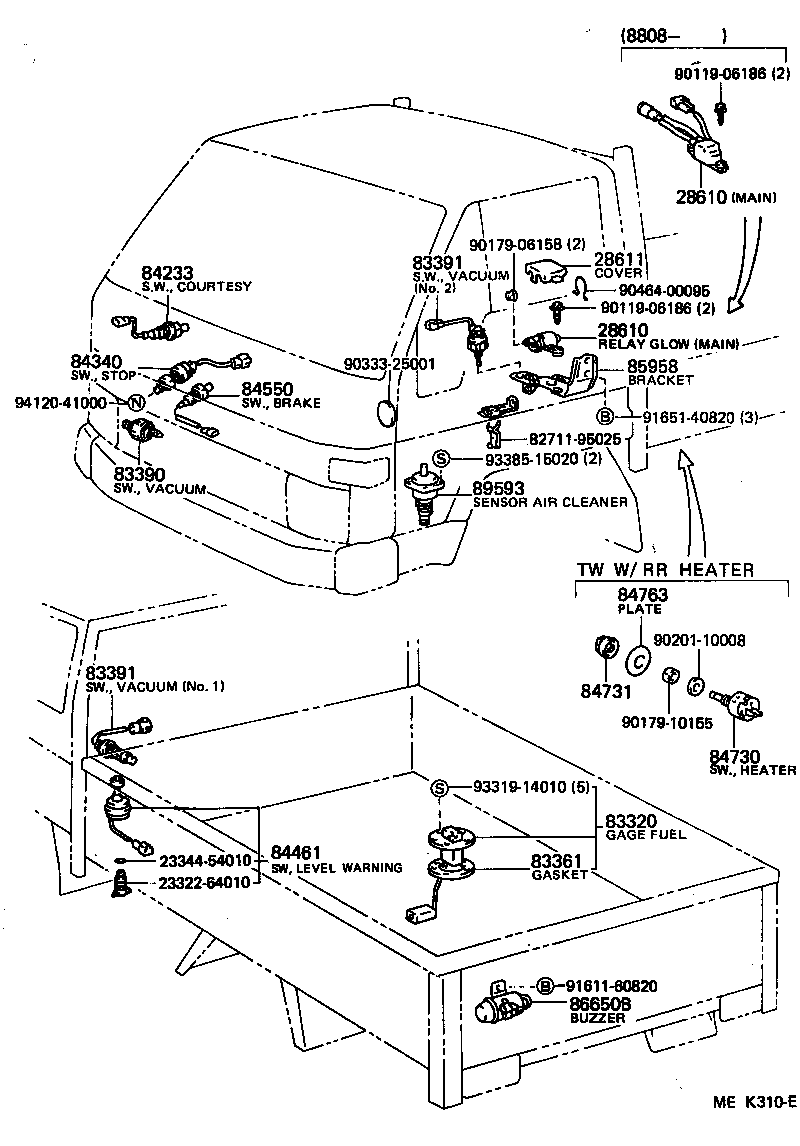

ILLUST NO. 4 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64080 |
2L..LH80..GEN..CBU SUB,MAIN |
1 | ||
| 28610-64060 |
2L..LH80..GEN..CBU IRELAND SPEC,MAIN |
1 | ||
| 28610-54021 |
2L..LH80..GEN |
1 | ||
| 28610-64130 |
2L..LH80..GEN..CBU IRELAND SPEC,MAIN |
1 | ||
| 28610-54340 |
2L..LH80..GEN..CBU IRELAND SPEC,SUB |
1 | ||
| 28610-54021 |
2L..LH80..GEN..CBU SUB,SUB |
1 | ||
| 28610-54021 |
2L..LH80..RHD |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64080 |
2L..LH80..GEN..CBU SUB,MAIN |
1 | ||
| 28610-64060 |
2L..LH80..GEN..CBU IRELAND SPEC,MAIN |
1 | ||
| 28610-54021 |
2L..LH80..GEN |
1 | ||
| 28610-64130 |
2L..LH80..GEN..CBU IRELAND SPEC,MAIN |
1 | ||
| 28610-54340 |
2L..LH80..GEN..CBU IRELAND SPEC,SUB |
1 | ||
| 28610-54021 |
2L..LH80..GEN..CBU SUB,SUB |
1 | ||
| 28610-54021 |
2L..LH80..RHD |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
2L..LH80..GEN..CBU |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39565 |
LH80,YH81 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LH80,YH81 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LH80 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28020 |
LH80,YH81 |
1 | ||
| 84231-20080 |
LH80,YH81 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36050 |
LH80,YH81 |
1 | ||
| 84340-22072 |
LH80,YH81 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-26030 |
LH80..T3;LH80..TW..IV |
1 | ||
| 84461-35030 |
LH80 |
1 | ||
| 84461-26030 |
LH80..T3 |
1 | ||
| 84461-26030 |
LH80 |
1 | ||
| 84461-60040 |
LH80..T3 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
LH80,YH81 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
LH80;YH81..RHD;YH81..EUR;YH81..LHD..T3..GEN |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-95010 |
LH80,YH81..T3 |
1 | ||
| 85958-25010 |
LH80,YH81..T3 |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95A08 |
LH80,YH81 |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
LH80 |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23344-54010 | ||||
| 82711-95025 | ||||
| 90119-06186 | ||||
| 90179-06158 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90333-25001 | ||||
| 90464-00095 | ||||
| 91611-60820 | ||||
| 91651-40820 | ||||
| 93319-14010 | ||||
| 93385-15020 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
