LH80R-MDB (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 45100 45125 45130 45131 45136 45146 45176 45201P 9351013010 9351013010 9351015014 9354045020
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2612106

LH80,YH81

2SPOKE,POLYPROPYLENE,BROWN,TRIM4#

 1
45100-26121B0

LH80,YH81

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

 1
45125 - MARK, STEERING WHEEL PAD
45125-2606006

LH80,YH81

BROWN,TRIM4#

 1
45125-26060B0

LH80,YH81

BLUISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-2611006

LH80,YH81

BROWN,TRIM4#

 1
45130-26110B0

LH80,YH81

BLUISH GRAY,TRIM1#

 1
45131 - BUTTON, HORN, NO.1
45131-26050

LH80,YH81

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

LH80,YH81

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-26030

LH80,YH81

 2
45176 - RING, HORN CONTACT
45176-30070

LH80,YH81

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH80,YH81

 1
90179-12071

LH80,YH81

 1
Common parts
93510-13010
93510-15014
93540-45020

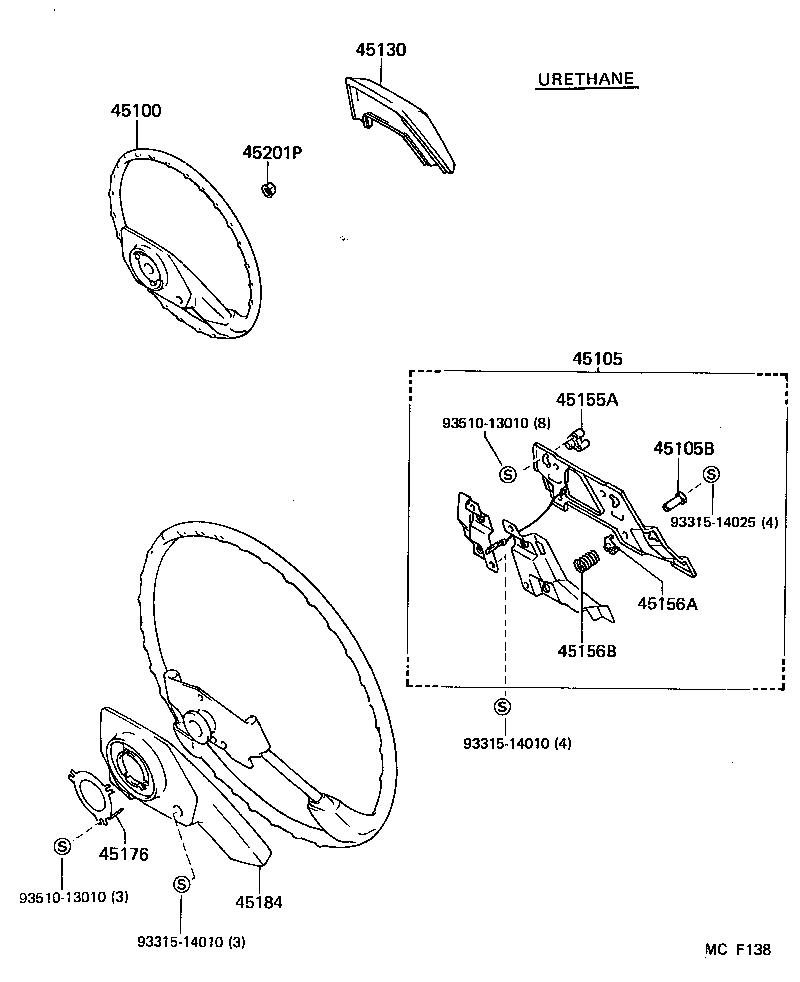

(8708-9109)

Click highlighted areas on diagram

diagram 45100 45105 45105B 45130 45155A 45156A 45156B 45176 45184 45201P 9331514010 9331514010 9331514025 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2612106

LH80,YH81

2SPOKE,POLYPROPYLENE,BROWN,TRIM4#

 1
45100-26121B0

LH80,YH81

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-2611006

LH80,YH81

BROWN,TRIM4#

 1
45130-26110B0

LH80,YH81

BLUISH GRAY,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-30070

LH80,YH81

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH80,YH81

 1
90179-12071

LH80,YH81

 1
Common parts
93315-14010
93315-14025
93510-13010

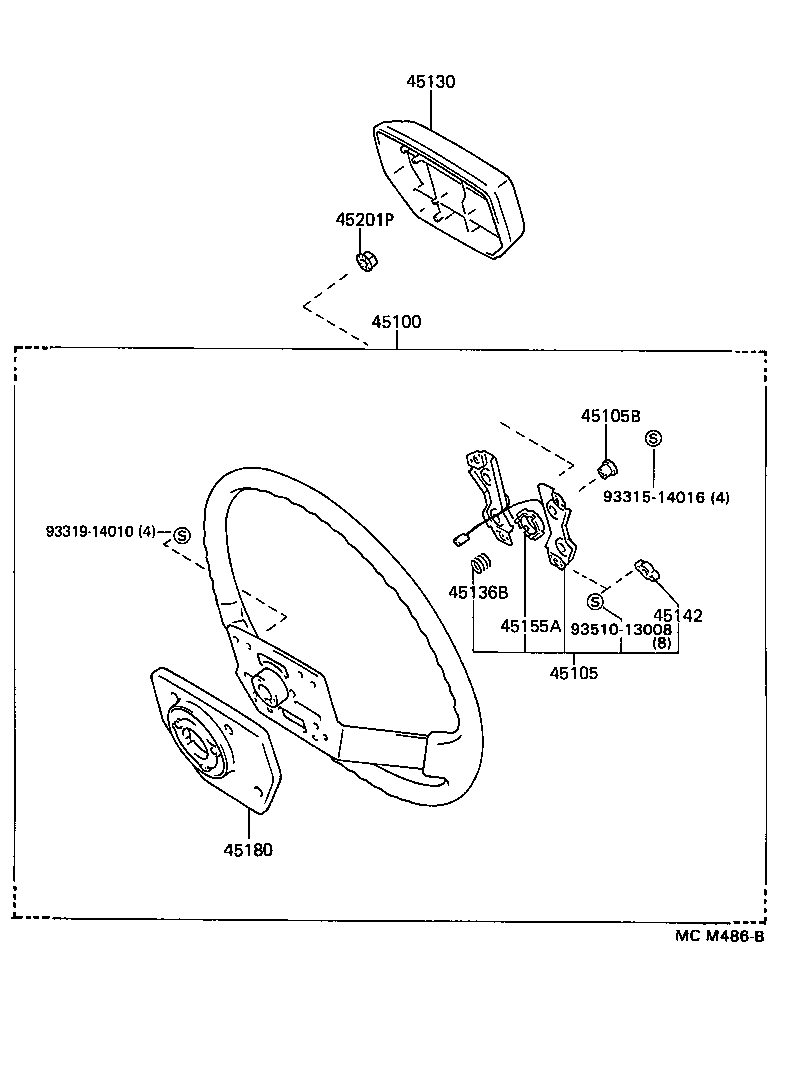

(9109- )

Click highlighted areas on diagram

diagram 45100 45105 45105B 45130 45136B 45142 45155A 45180 45201P 9331514016 9331914010 9351013008
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2612106

LH80,YH81

2SPOKE,POLYPROPYLENE,BROWN,TRIM4#

 1
45100-26121B0

LH80,YH81

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-2611006

LH80,YH81

BROWN,TRIM4#

 1
45130-26110B0

LH80,YH81

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH80,YH81

 1
90179-12071

LH80,YH81

 1
Common parts
93315-14016
93319-14010
93510-13008
