LH80R-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )RHD

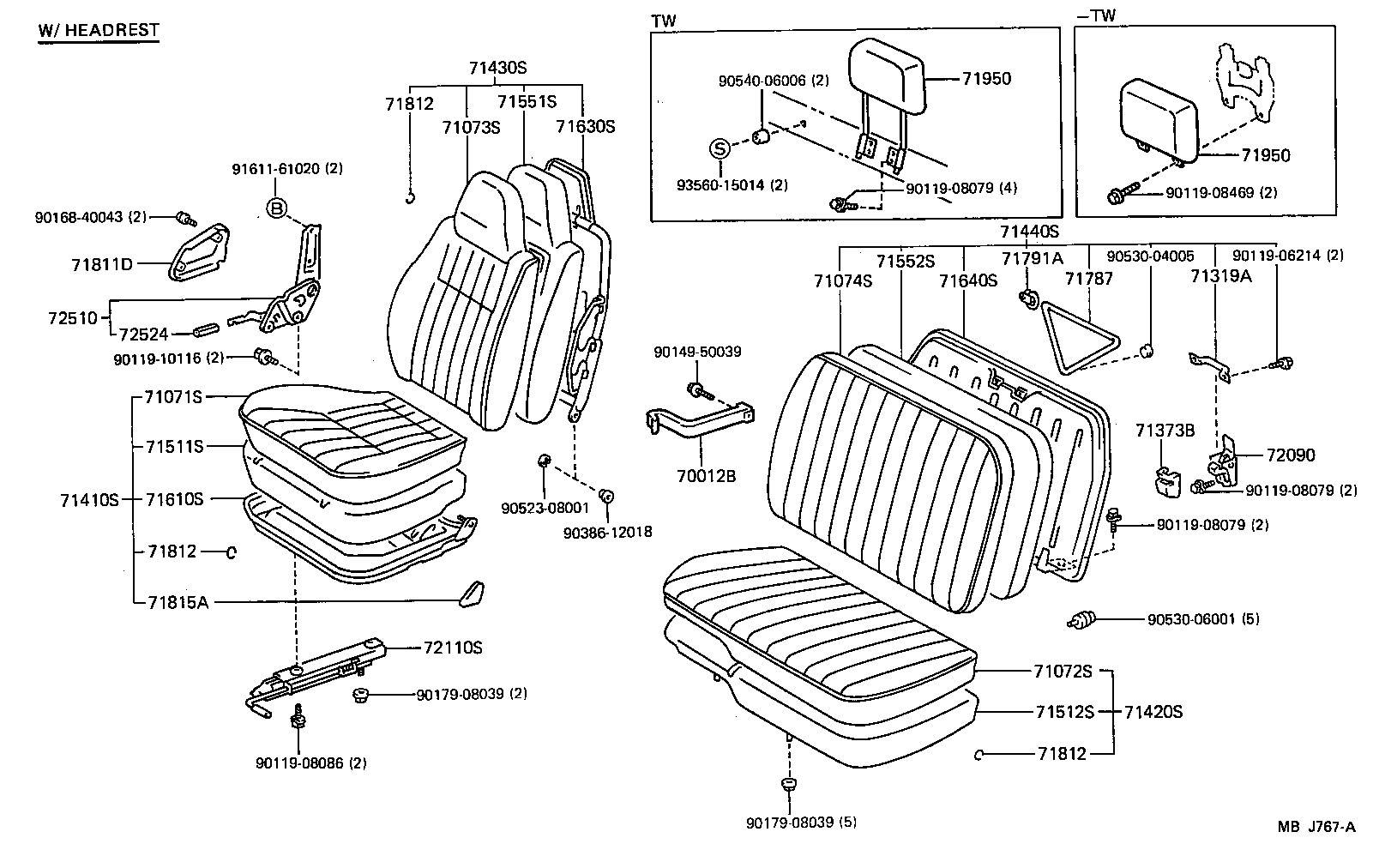

Click highlighted areas on diagram

diagram 70012B 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71610S 71630S 71640S 71787 71791A 71811D 71812 71812 71812 71815A 71950 71950 72090 72110S 72510 72524 9011906214 9011908079 9011908079 9011908079 9011908086 9011908469 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9052308001 9053004005 9053006001 9054006006 9161161020 9356015014
Part # Description Qty Price
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570003

LH80,YH8#

GRAY,SHADOW GRAY

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9545303

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71071-9548703

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95A0303

LH80..T3..GEN..CBU

VL,W/*ELR,GRAY,SHADOW GRAY

 1
71072-9546303

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072-95B1603

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072-95A1003

LH80..T3..GEN..CBU

VL,W/*ELR,GRAY,SHADOW GRAY

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9546403

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71073-9546103

LH80,YH80..RHD..T3..GEN

VL,W/HEADREST,GRAY,SHADOW GRAY

 1
71073-95B0703

LH80,YH80..RHD..T3..GEN

VL,W/HEADREST,GRAY,SHADOW GRAY

 1
71073-95B0803

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B0803

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71074-95B5703

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95400

LH80,YH8#

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540003

LH80,YH8#

GRAY,SHADOW GRAY

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9543903

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71410-9547803

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95A1203

LH80..T3..GEN..CBU

VL,W/*ELR,GRAY,SHADOW GRAY

 1
71420-95A2403

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71420-95A1003

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71420-95A2503

LH80..T3..GEN..CBU

VL,W/*ELR,GRAY,SHADOW GRAY

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9544603

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71430-9544303

LH80,YH80..RHD..T3..GEN

VL,W/HEADREST,GRAY,SHADOW GRAY

 1
71430-9548303

LH80,YH80..RHD..T3..GEN

VL,W/HEADREST,GRAY,SHADOW GRAY

 1
71430-9548403

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-9547103

LH80,YH80..RHD..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71440-95A4503

LH80,YH80..RHD..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95400

LH80,YH80..RHD..GEN

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95A05

LH80,YH8#..RHD

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95404

LH80,YH8#..RHD

W/HEADREST

 1
71551-95405

LH80,YH8#..RHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95403

LH80,YH8#..RHD

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71011-95414

LH80,YH8#..RHD

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71150-95J00

LH80,YH8#..RHD

W/HEADREST

 1
71150-95J02

LH80,YH8#..RHD

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-95416

LH80,YH80..RHD

W/HEADREST

 1
71014-95411

LH80,YH80..RHD

 1
71787 - BAND, FRONT SEAT BACK POCKET
71787-95400

LH80,YH80..RHD

 1
71791A - RETAINER, FRONT SEAT BACK POCKET
71791-95400

LH80,YH80..RHD

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-95J0103

LH80,YH8#..RHD

GRAY,SHADOW GRAY

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0003

LH80,YH8#..RHD

GRAY,SHADOW GRAY

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-9540003

LH80,YH8#..T3

GRAY,GRAY

 1
71910-9540103

LH80,YH80..T3..GEN

FB SEAT,GRAY,GRAY

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-9540003

LH80,YH8#..T3

GRAY,GRAY

 1
71910-9540103

LH80,YH80..T3..GEN

FB SEAT,GRAY,GRAY

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540003

LH80,YH8#

GRAY,SHADOW GRAY

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-95408

LH80,YH8#..RHD

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0003

LH80,YH8#..RHD

GRAY,SHADOW GRAY

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-95J0003

LH80,YH8#..RHD

GRAY,SHADOW GRAY

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90523-08001
90530-04005
90530-06001
90540-06006
91611-61020
93560-15014

(8508- )

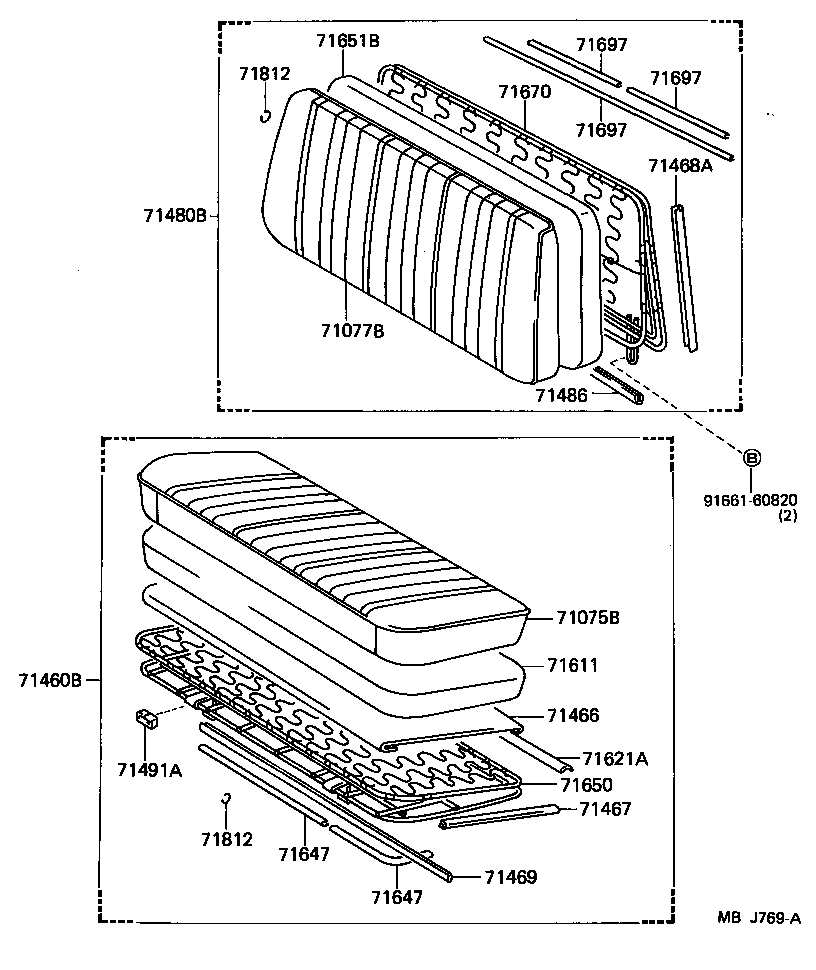

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71466 71467 71468A 71469 71480B 71486 71491A 71611 71621A 71647 71647 71650 71651B 71670 71697 71697 71697 71812 71812 9166160820
Part # Description Qty Price
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
Common parts
91661-60820

(8508- )RHD

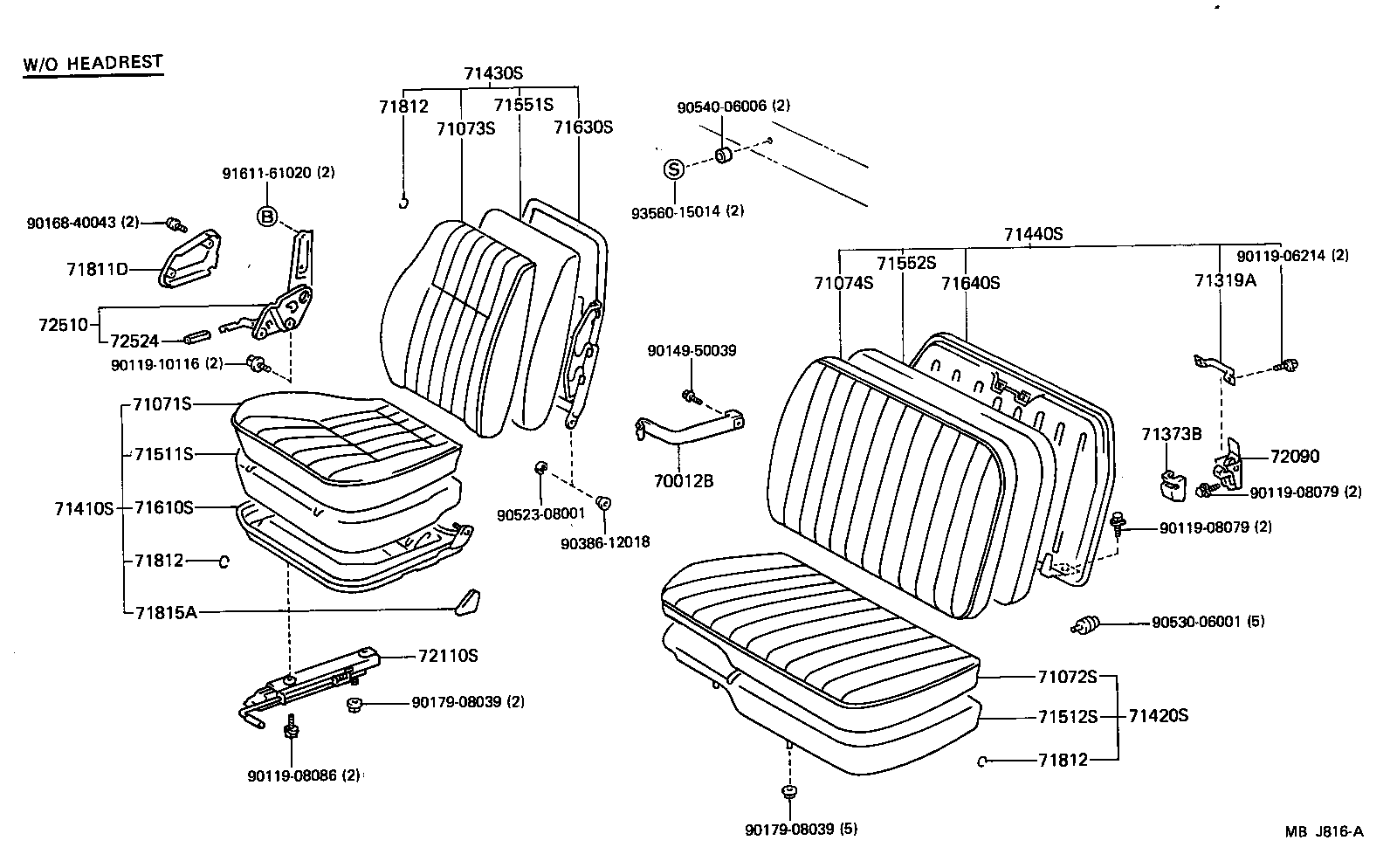

Click highlighted areas on diagram

diagram 70012B 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71610S 71630S 71640S 71811D 71812 71812 71812 71815A 72090 72110S 72510 72524 9011906214 9011908079 9011908079 9011908086 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9052308001 9053006001 9054006006 9161161020 9356015014
Part # Description Qty Price
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570003

LH80,YH8#

GRAY,SHADOW GRAY

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9545303

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71071-9548703

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95A0303

LH80..T3..GEN..CBU

VL,W/*ELR,GRAY,SHADOW GRAY

 1
71072-9546303

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072-95B1603

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71072-95A1003

LH80..T3..GEN..CBU

VL,W/*ELR,GRAY,SHADOW GRAY

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9546403

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71073-9546103

LH80,YH80..RHD..T3..GEN

VL,W/HEADREST,GRAY,SHADOW GRAY

 1
71073-95B0703

LH80,YH80..RHD..T3..GEN

VL,W/HEADREST,GRAY,SHADOW GRAY

 1
71073-95B0803

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B0803

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71074-95B5703

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95400

LH80,YH8#

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540003

LH80,YH8#

GRAY,SHADOW GRAY

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9543903

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71410-9547803

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95A1203

LH80..T3..GEN..CBU

VL,W/*ELR,GRAY,SHADOW GRAY

 1
71420-95A2403

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71420-95A1003

LH80,YH80..RHD..GEN

VL,GRAY,SHADOW GRAY

 1
71420-95A2503

LH80..T3..GEN..CBU

VL,W/*ELR,GRAY,SHADOW GRAY

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9544603

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71430-9544303

LH80,YH80..RHD..T3..GEN

VL,W/HEADREST,GRAY,SHADOW GRAY

 1
71430-9548303

LH80,YH80..RHD..T3..GEN

VL,W/HEADREST,GRAY,SHADOW GRAY

 1
71430-9548403

LH80,YH80..RHD..T3..GEN

VL,GRAY,SHADOW GRAY

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-9547103

LH80,YH80..RHD..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71440-95A4503

LH80,YH80..RHD..GEN

VL,W/*HR,GRAY,SHADOW GRAY

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95400

LH80,YH80..RHD..GEN

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95A05

LH80,YH8#..RHD

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95404

LH80,YH8#..RHD

W/HEADREST

 1
71551-95405

LH80,YH8#..RHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95403

LH80,YH8#..RHD

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71011-95414

LH80,YH8#..RHD

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71150-95J00

LH80,YH8#..RHD

W/HEADREST

 1
71150-95J02

LH80,YH8#..RHD

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-95416

LH80,YH80..RHD

W/HEADREST

 1
71014-95411

LH80,YH80..RHD

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-95J0103

LH80,YH8#..RHD

GRAY,SHADOW GRAY

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LH80,YH8#

 1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0003

LH80,YH8#..RHD

GRAY,SHADOW GRAY

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540003

LH80,YH8#

GRAY,SHADOW GRAY

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-95408

LH80,YH8#..RHD

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0003

LH80,YH8#..RHD

GRAY,SHADOW GRAY

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-95J0003

LH80,YH8#..RHD

GRAY,SHADOW GRAY

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90523-08001
90530-06001
90540-06006
91611-61020
93560-15014
