LH80R-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

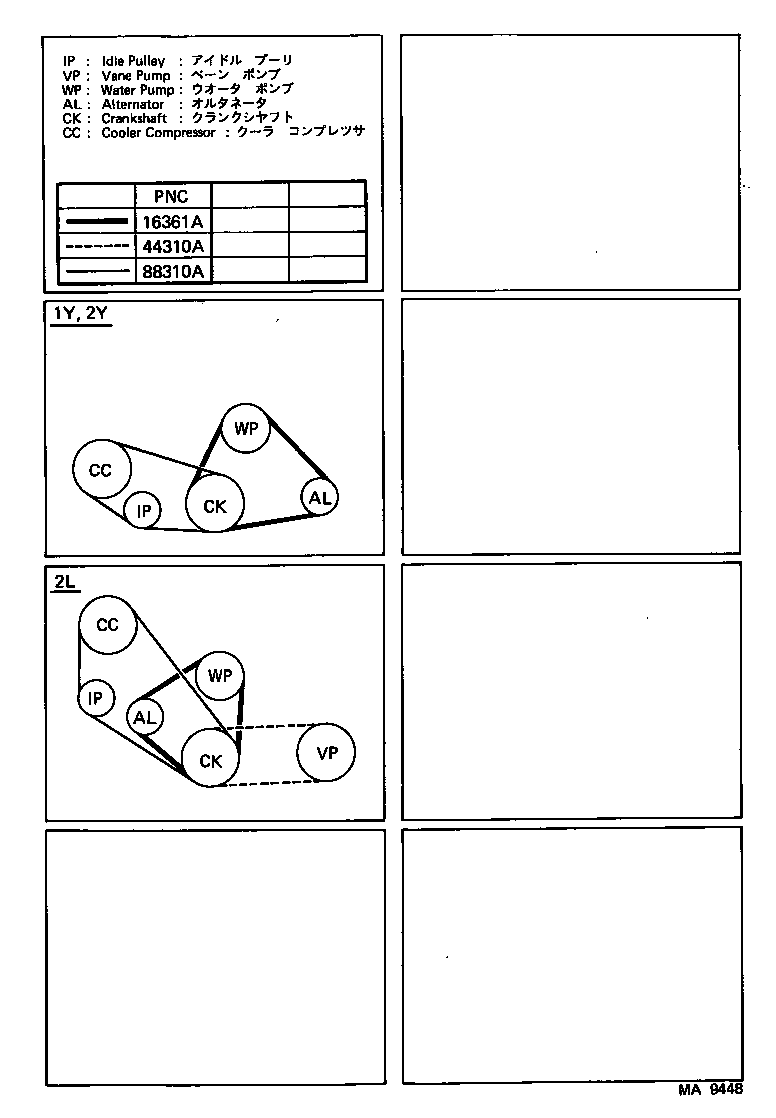

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02132

2L..LH80

DOUBLE V BELTS

 1
44310A - BELT, V(FOR VANE PUMP)
99332-00850

LH80

L=850

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01260

LH80..ARL,GEN

L=1260

 1
