LH80R-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )2L

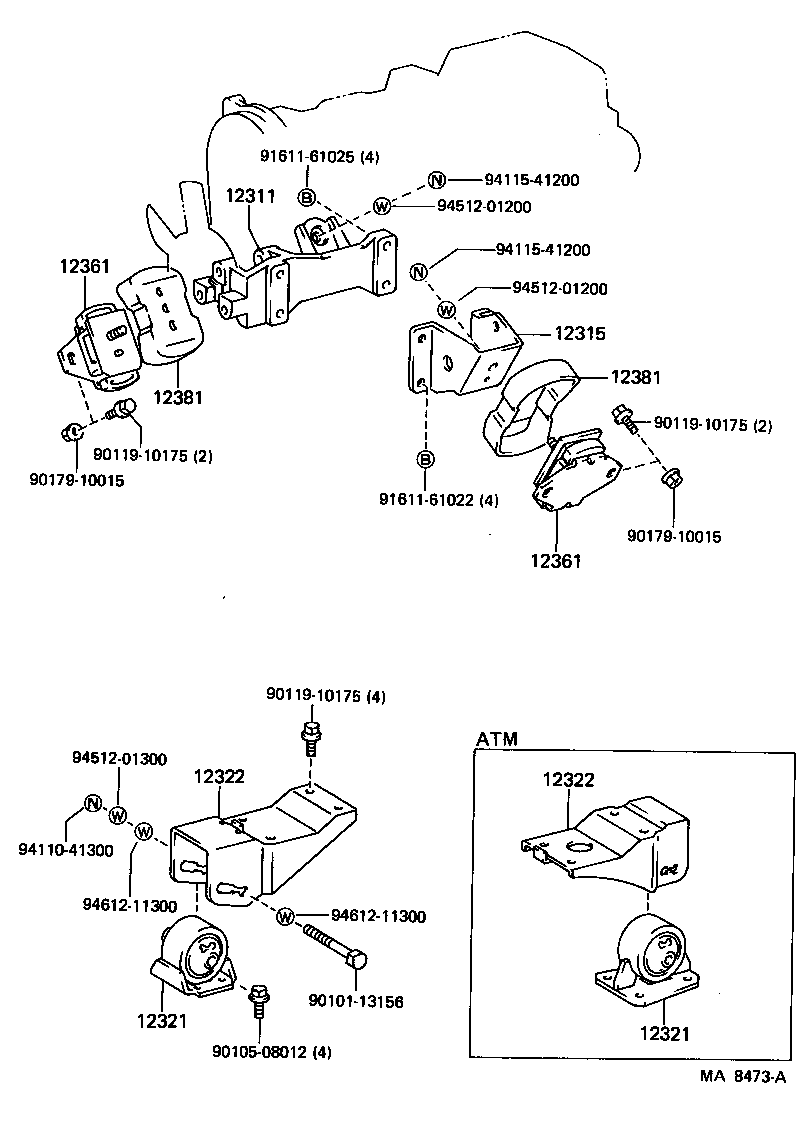

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12361 12361 12381 12381 9010113156 9010508012 9011910175 9011910175 9011910175 9017910015 9017910015 9161161022 9161161025 9411041300 9411541200 9411541200 9451201200 9451201200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L..LH80

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54021

2L..LH80..EUR,GEN

 1
12312-54020

2L..LH80..EUR,GEN

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54020

2L..LH80..5F

 1
12303-72010

2L..LH80..5F

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54020

2L..LH80..5F

 1
12303-72010

2L..LH80..5F

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54050

2L..LH80..5F

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54050

2L..LH80..5F

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54120

2L..LH80

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54120

2L..LH80

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

2L..LH80

 2
12381-54020

2L..LH80

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

2L..LH80

 2
12381-54020

2L..LH80

 2
Common parts
90101-13156
90105-08012
90119-10175
90179-10015
91611-61022
91611-61025
94110-41300
94115-41200
94512-01200
94512-01300
94612-11300
