LH80L-MDPW (1985)
Toyota Dyna100

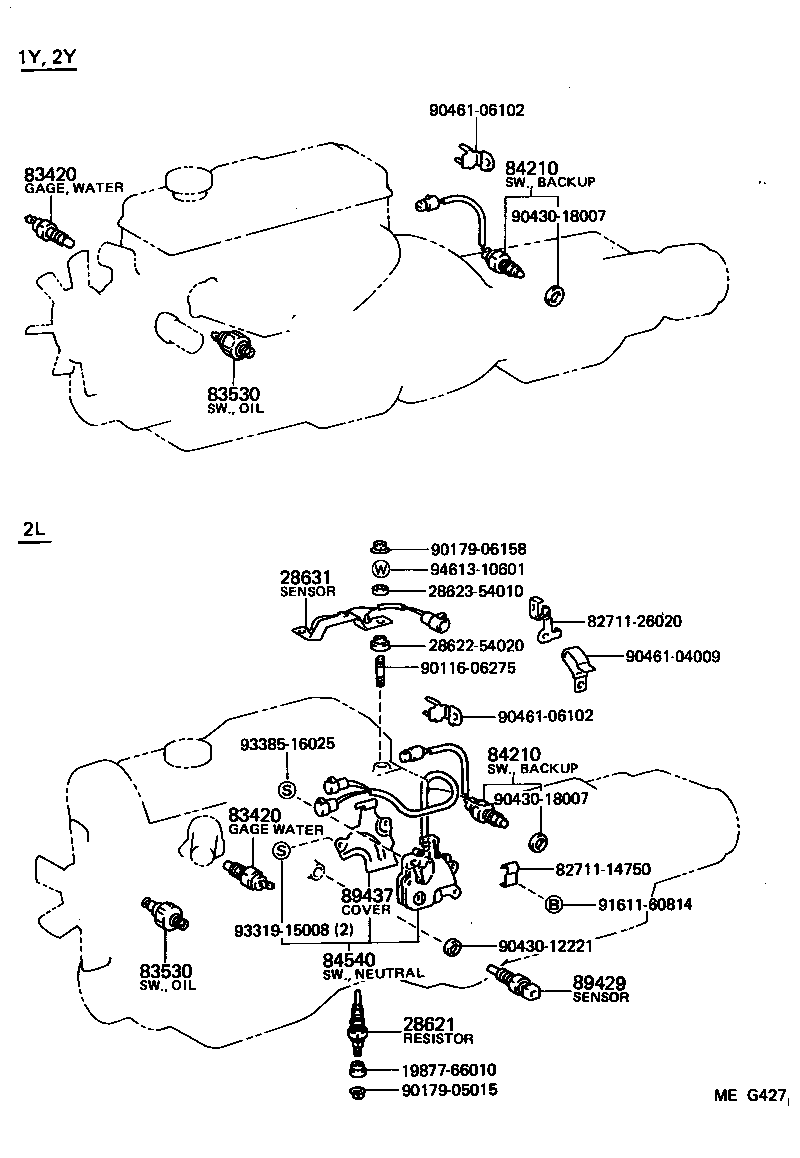

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54031 |
2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54040 |
2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LH80,YH8# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LH80,YH8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH80 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH80,YH8#..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH80,YH8#..5F |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LH80..T3..CBU;LH80..TW..EUR;LH80..(ARL,EUR)..IV |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-14750 | ||||
| 82711-26020 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-04009 | ||||
| 90461-06102 | ||||
| 91611-60814 | ||||
| 93319-15008 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||

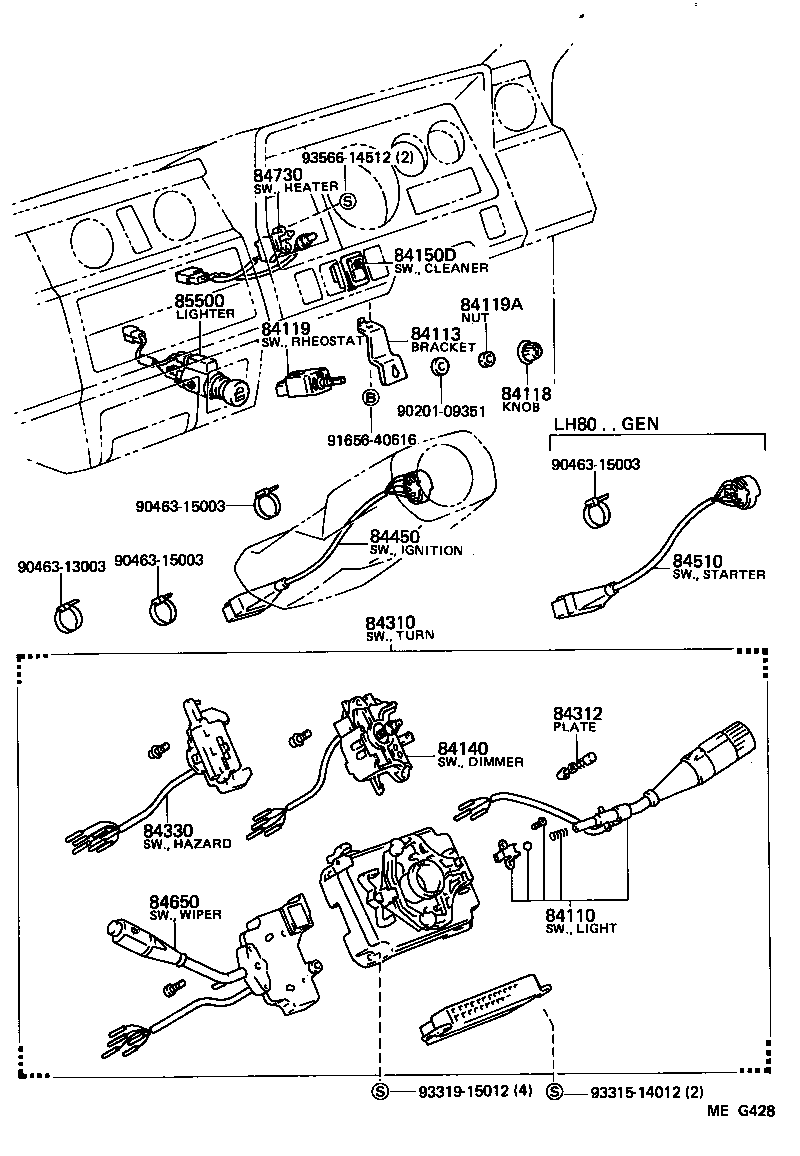

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39285 |
LH80,YH8#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-39125 |
LH80,YH8#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36330 |
LH80,YH8#..LHD W/INTERMITTENT WIPER |
1 | ||
| 84310-26140 |
LH80,YH8#..LHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LH80,YH8# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39255 |
LH80,YH8#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36030 |
LH80..ARL,EUR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26110 |
LH80,YH8#..LHD |
1 | ||
| 84652-39565 |
LH80,YH8#..LHD W/INTERMITTENT WIPER |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95404 |
LH80,YH8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95A04 |
LH80,YH8# |
1 | ||
| Common parts | ||||
| 90201-09351 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 91656-40616 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||

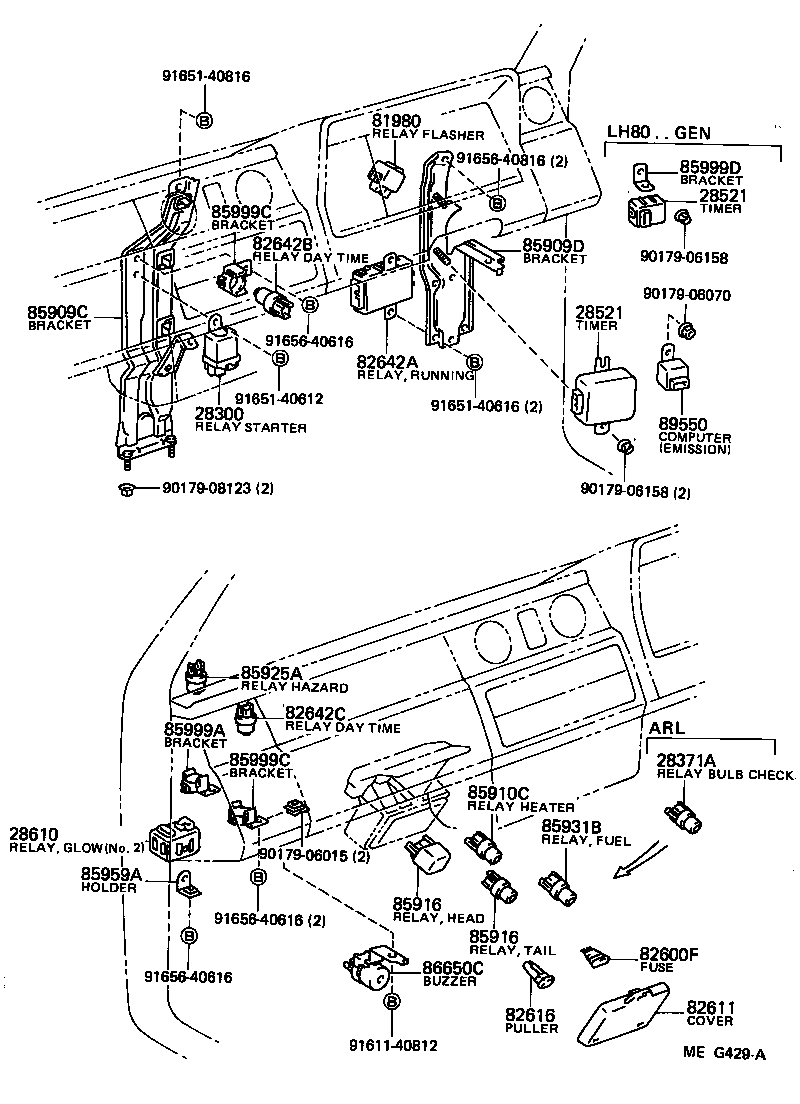

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
2L..LH80 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54181 |
2L..LH80..ARL,EUR |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54181 |
2L..LH80..ARL,EUR |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-68030 |
2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV NO.1 |
1 | ||
| 28610-54021 |
2L..LH80 NO.2 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
LH80,YH8# |
1 | ||
| 81980-16010 |
LH80,YH8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LH80,YH8# 10A,10A |
2 | ||
| 90982-09003 |
LH80,YH8# 15A,15A |
8 | ||
| 90982-09005 |
LH80,YH8# 7.5A,7.5A |
4 | ||
| 90982-09004 |
LH80,YH8# 20A,YELLOW,20A |
2 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95010 |
LH80,YH8# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH80,YH8# |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-95010 |
YH81..T3..CBU;LH80..EUR..CBU NORWAY SPEC |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02004 |
YH81..T3..CBU;LH80..EUR..CBU NORWAY SPEC |
1 | ||
| 82642C - RELAY, DAY TIME RUNNING LIGHT, NO.2 | ||||
| 90987-03001 |
YH81..T3..CBU;LH80..EUR..CBU NORWAY SPEC |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95011 |
LH80,YH8#..LHD |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-95401 |
LH80,YH8#..LHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH80,YH81..EUR |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH80,YH8# TAIL |
1 | ||
| 90987-02006 |
LH80,YH8# HEAD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH80,YH8# TAIL |
1 | ||
| 90987-02006 |
LH80,YH8# HEAD |
1 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03001 |
LH80,YH81..EUR |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
LH80..EUR |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36010 |
LH80 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-14150 |
LH80,YH81..EUR |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-14150 |
YH81..T3..CBU;LH80..EUR..CBU NORWAY SPEC |
2 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-14150 |
YH81..T3..CBU;LH80..EUR..CBU NORWAY SPEC |
2 | ||
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91611-40812 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||

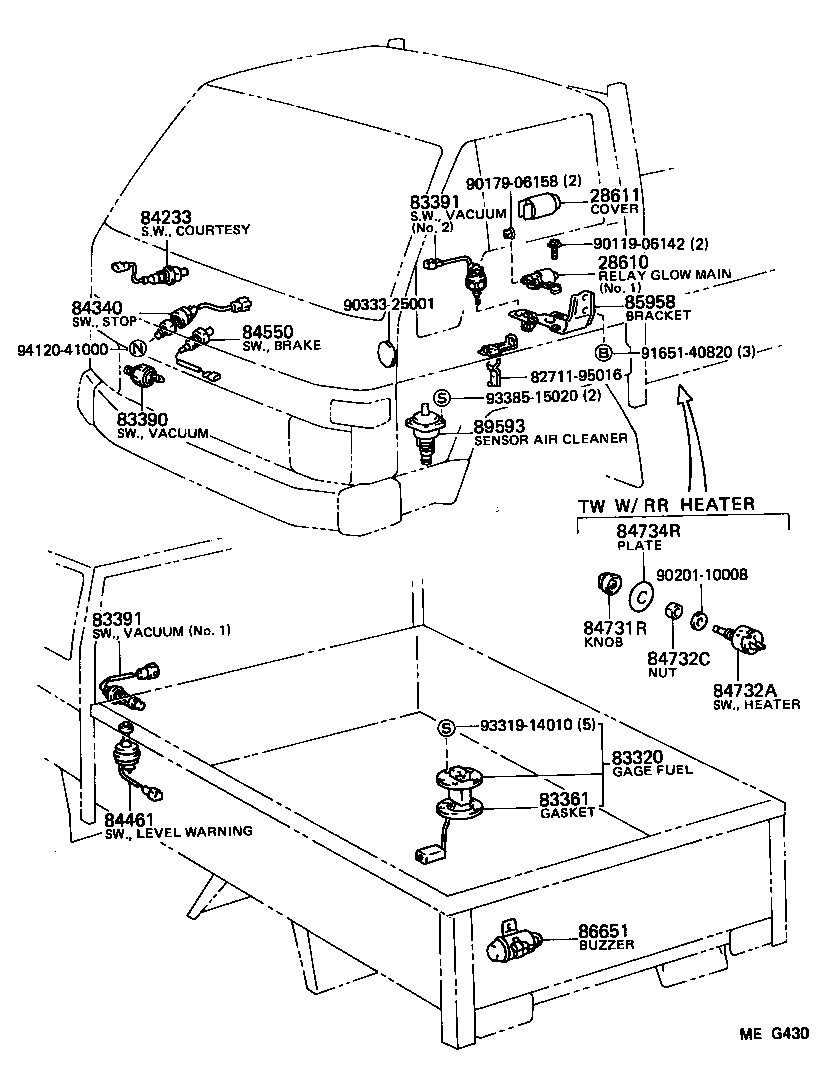

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-68030 |
2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV NO.1 |
1 | ||
| 28610-54021 |
2L..LH80 NO.2 |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-58020 |
2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39565 |
LH80,YH8# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LH80,YH8# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LH80 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32020 |
LH80..EUR NO.1 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32020 |
LH80..EUR NO.1 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
LH80,YH8# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
LH80,YH8# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-35030 |
LH80 |
1 | ||
| 84461-14030 |
LH80 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
LH80,YH8# |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-12010 |
LH80,YH8#..TW |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-87001 |
LH80,YH8#..TW |
1 | ||
| 84732C - NUT, REAR HEATER BLOWER SWITCH | ||||
| 90179-10155 |
LH80,YH8#..TW |
1 | ||
| 84734R - PLATE, REAR HEATER BLOWER SWITCH CAUTION | ||||
| 84763-95010 |
LH80,YH8#..TW |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-95011 |
LH80,YH8#..TW |
1 | ||
| 86651 - BUZZER ASSY, BACK | ||||
| 86650-95A04 |
LH80,YH8# |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
LH80 |
1 | ||
| Common parts | ||||
| 82711-95016 | ||||
| 90119-06142 | ||||
| 90179-06158 | ||||
| 90201-10008 | ||||
| 90333-25001 | ||||
| 91651-40820 | ||||
| 93319-14010 | ||||
| 93385-15020 | ||||
| 94120-41000 | ||||
