LH80L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )EUR

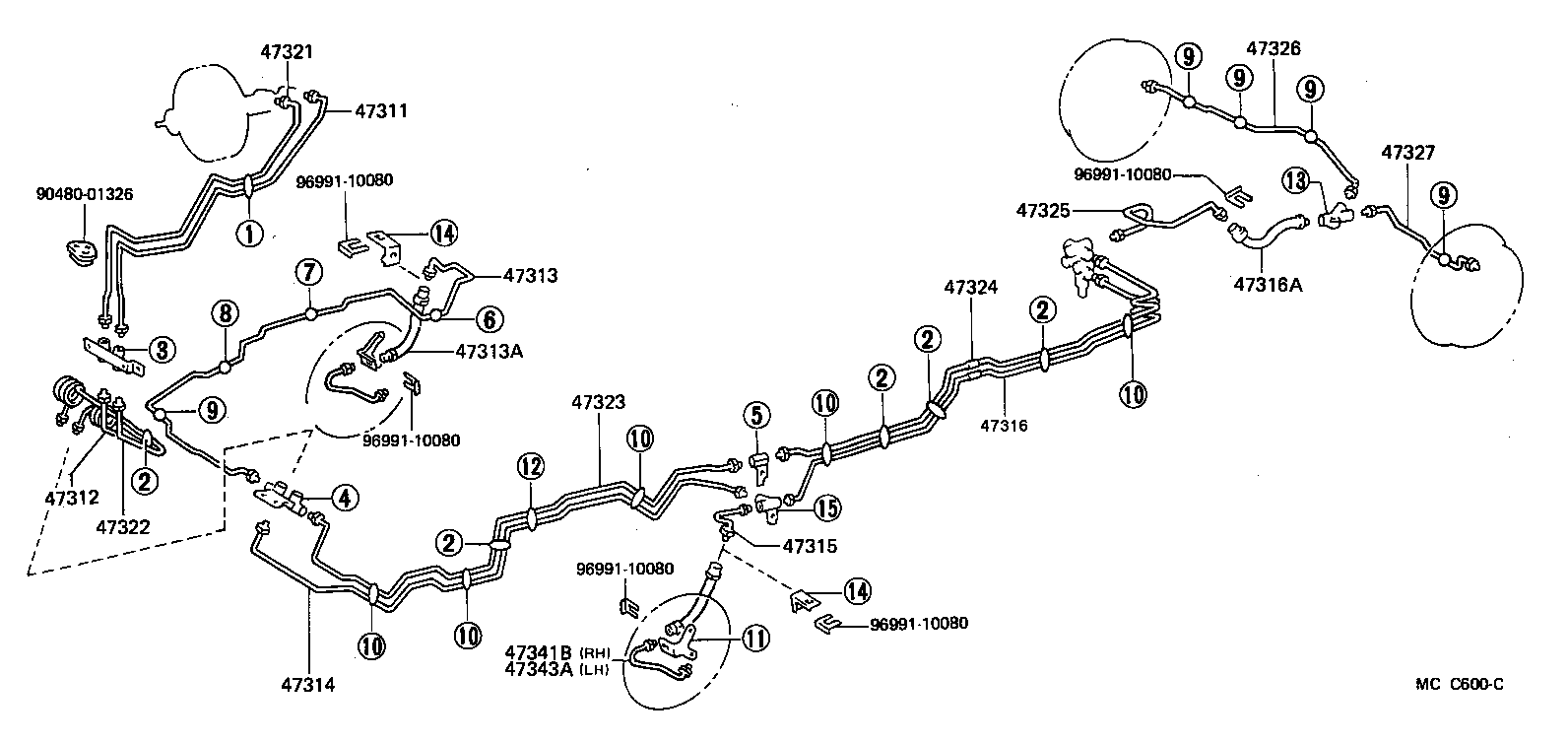

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47314 47315 47316 47316A 47321 47322 47323 47324 47325 47326 47327 47341B 47343A 9048001326 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26260

LH80,YH8#..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26210

LH80,YH8#..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26110

LH80,YH80

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02477

LH80,YH8#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26110

LH80,YH81..ARL,EUR

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26090

LH80,YH81..ARL,EUR

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26130

LH80..ARL,EUR

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33305

LH80,YH8#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26170

LH80,YH8#..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26140

LH80,YH8#..LHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26280

LH80,YH8#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26150

LH80,YH8#

FR DISC BRAKE

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26190

LH80,YH8#

FR DISC BRAKE

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26170

LH80,YH8#

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26050

LH80,YH8#

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-26060

LH80,YH8#

FR DISC BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-26060

LH80,YH8#

FR DISC BRAKE

 1
Common parts
90480-01326
96991-10080

(8508- )

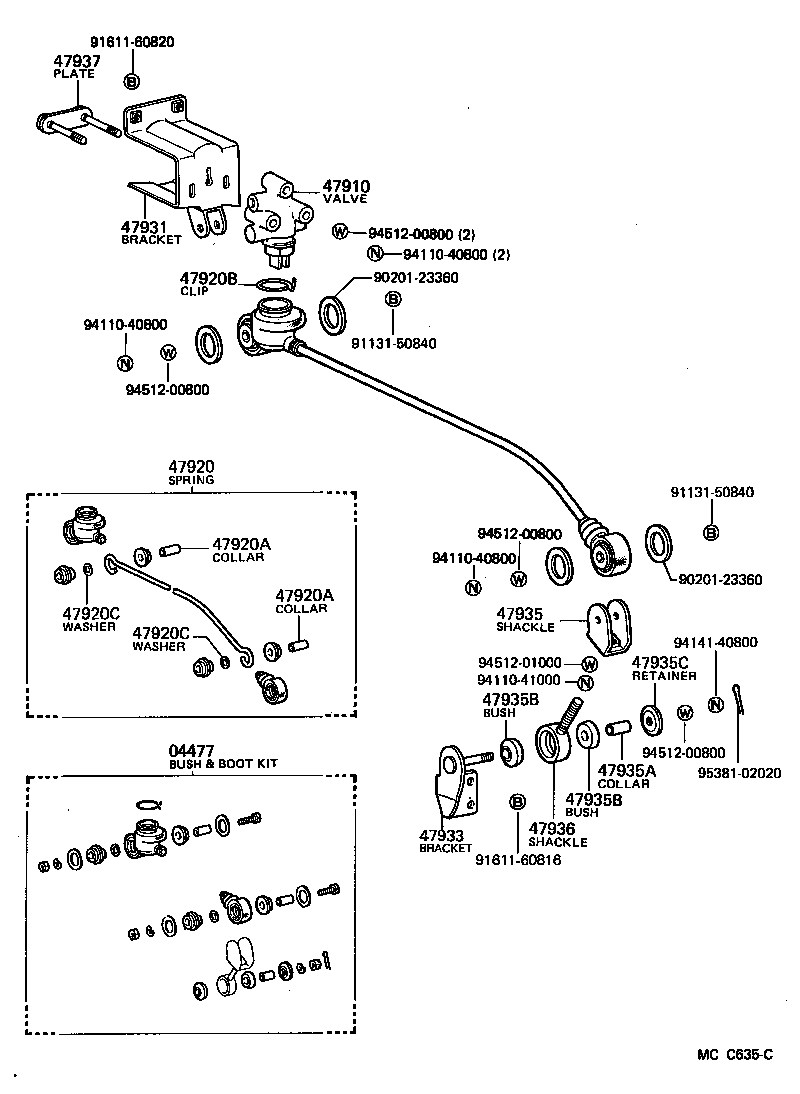

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9020123360 9020123360 9113150840 9113150840 9161160816 9161160820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26010

LH80,YH8#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26140

LH80,YH81..ARL,EUR

 1
47910-26141

LH80,YH81..ARL,EUR

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26060

LH80,YH8#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH80,YH8#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH80,YH8#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LH80,YH8#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH80,YH8#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH80,YH8#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26090

LH80,YH8#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26080

LH80,YH8#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LH80,YH8#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LH80,YH8#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH80,YH8#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH80,YH8#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LH80,YH8#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

LH80,YH8#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LH80,YH8#

 1
Common parts
90201-23360
91131-50840
91611-60816
91611-60820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

(8508- )

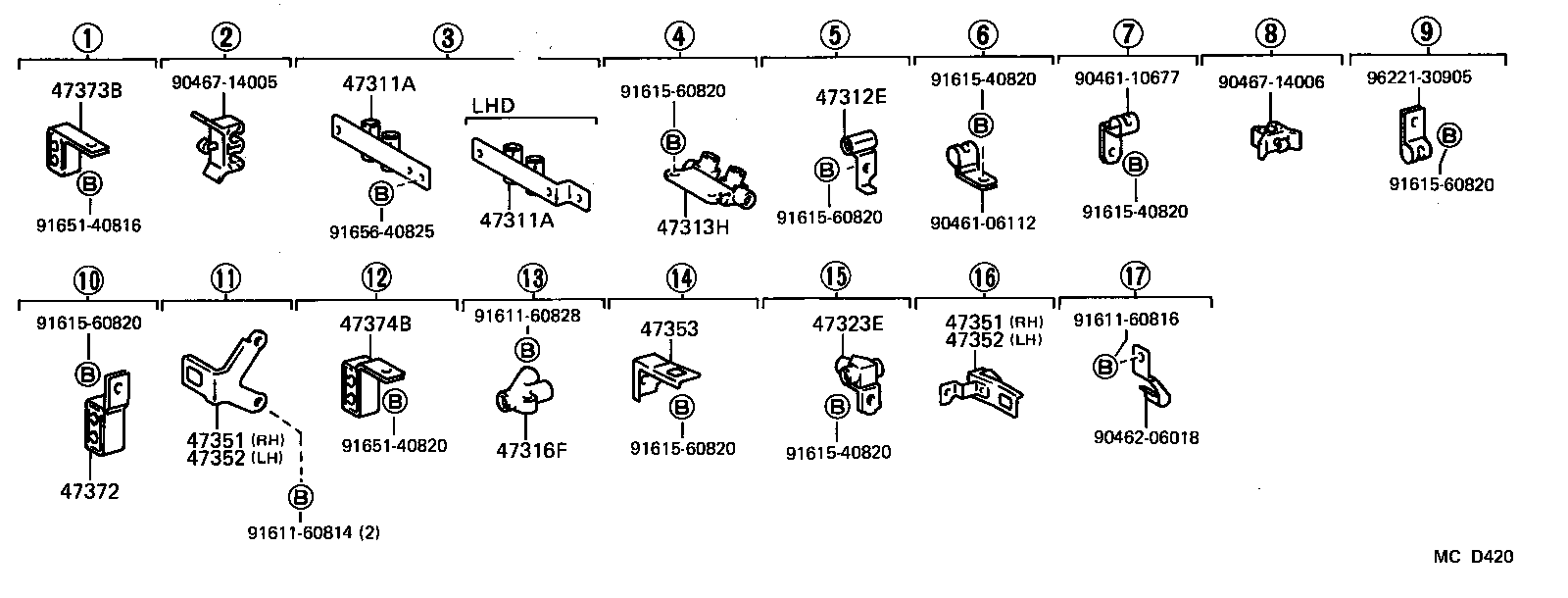

Click highlighted areas on diagram

diagram 47311A 47311A 47312E 47313H 47316F 47323E 47351 47351 47352 47352 47353 47372 47373B 47374B 9046106112 9046110677 9046206018 9046714005 9046714006 9161160814 9161160816 9161160828 9161540820 9161540820 9161540820 9161560820 9161560820 9161560820 9161560820 9161560820 9165140816 9165140820 9165640825 9622130905
Part # Description Qty Price
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10132

LH80,YH8#..LHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10132

LH80,YH8#..LHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10134

LH80,YH8#

 1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10187

LH80,YH8#

 1
47316F - WAY, 3(FOR REAR BRAKE TUBE)
90413-10147

LH80,YH8#

 1
47323E - GROMMET, NO.3(FOR REAR BRAKE TUBE)
90413-10186

LH80,YH81..EUR

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26070

LH80,YH8#

FR DISC BRAKE

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26070

LH80,YH8#

FR DISC BRAKE

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26070

LH80,YH8#

FR DISC BRAKE

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26070

LH80,YH8#

FR DISC BRAKE

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-26030

LH80,YH8#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47372-25010

LH80,YH81..EUR

 5
47373B - CLAMP, BRAKE TUBE, NO.3
47373-25010

LH80,YH8#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47373-26010

LH80,YH8#

 1
Common parts
90461-06112
90461-10677
90462-06018
90467-14005
90467-14006
91611-60814
91611-60816
91611-60828
91615-40820
91615-60820
91651-40816
91651-40820
91656-40825
96221-30905
