LH80L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046816142 9411041000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-26090

LH80,YH8#..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

LH80,YH8#..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LH80,YH8#..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LH80,YH8#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LH80,YH8#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

LH80,YH8#..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

LH80,YH8#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

LH80,YH8#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

LH80,YH8#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

LH80,YH8#..5F

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LH80,YH8#..5F

 1
Common parts
90468-16142
94110-41000
94120-40800
94512-01000

(8508- )5F

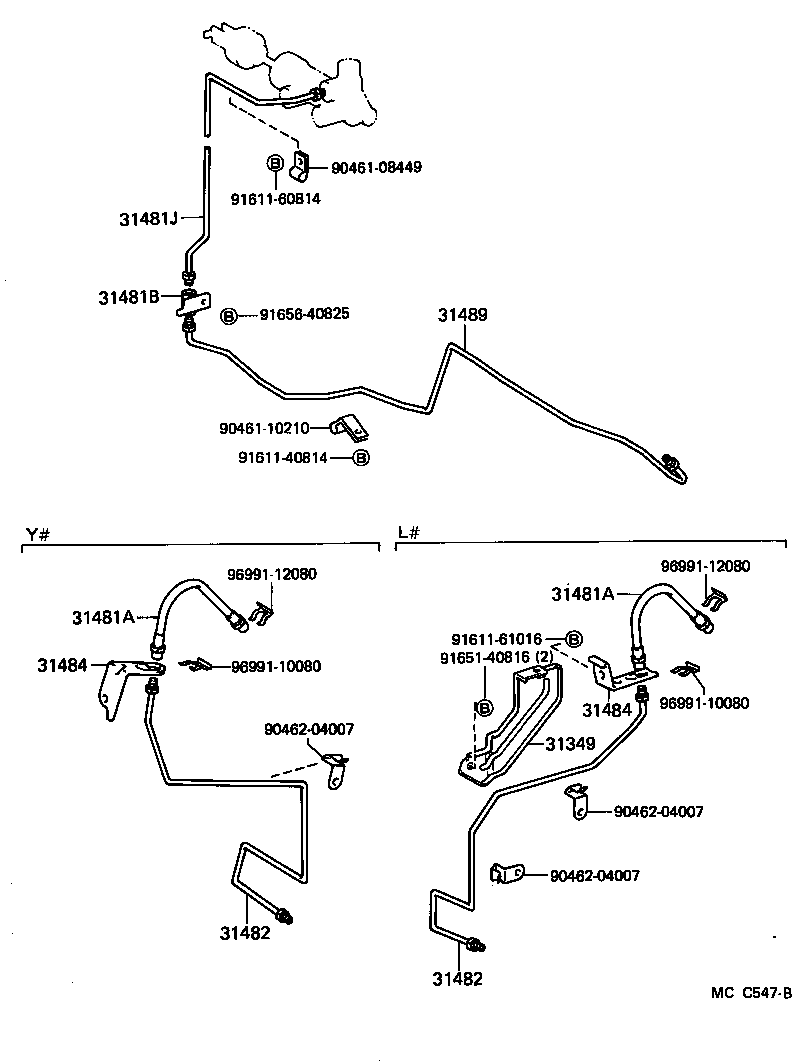

Click highlighted areas on diagram

diagram 31349 31481A 31481A 31481B 31481J 31482 31482 31484 31484 31489 9046108449 9046110210 9046204007 9046204007 9046204007 9161140814 9161160814 9161161016 9165140816 9165640825 9699110080 9699110080 9699112080 9699112080
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26010

LH80..5F

 1
31481A - HOSE, CLUTCH, NO.1
96815-50280

LH80..5F

L=280

 1
96815-50275

LH80..5F

L=275

 1
31481A - HOSE, CLUTCH, NO.1
96815-50280

LH80..5F

L=280

 1
96815-50275

LH80..5F

L=275

 1
31481B - WAY(FOR CLUTCH TUBE)
90412-12018

LH80,YH8#..5F

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-26160

LH80,YH8#..LHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26070

LH80..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26070

LH80..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26070

LH80..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26070

LH80..5F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26140

LH80,YH8#..LHD

 1
Common parts
90461-08449
90461-10210
90462-04007
91611-40814
91611-60814
91611-61016
91651-40816
91656-40825
96991-10080
96991-12080
