LH80L-MDP (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LH80..LHD

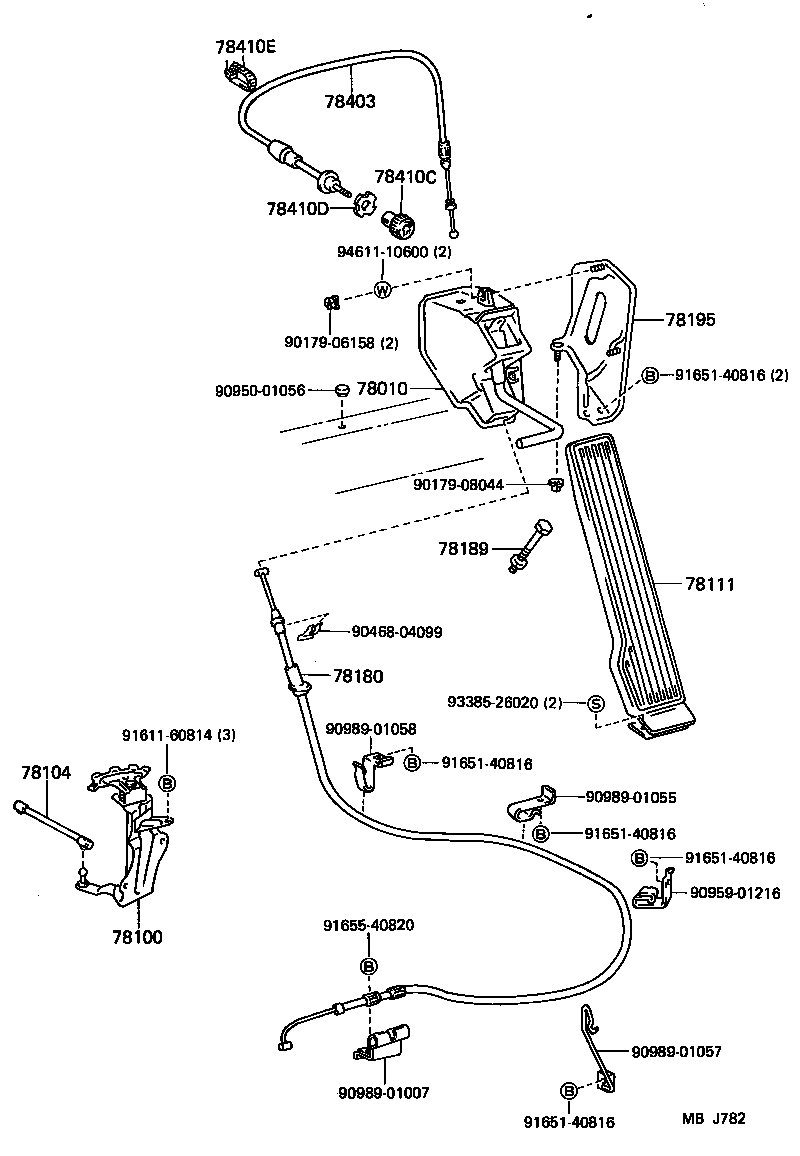

Click highlighted areas on diagram

diagram 78010 78100 78104 78111 78180 78189 78195 78403 78410C 78410D 78410E 9017906158 9017908044 9046804099 9095001056 9095901216 9098901007 9098901055 9098901057 9098901058 9161160814 9165140816 9165140816 9165140816 9165140816 9165140816 9165540820 9338526020 9461110600
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95011

LH80,YH8#..LHD

 1
78100 - LINK ASSY, ACCELERATOR
78100-95012

LH80..LHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120

LH80

 1
78111 - PEDAL, ACCELERATOR
78110-95014

LH80,YH8#..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95059

LH80..LHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95402

LH80,YH8#..LHD

 1
78195 - BRACKET, ACCELERATOR LINK
78195-95401

LH80,YH8#..LHD

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78404-95012

LH80..LHD

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

LH80

 1
78410D - NUT, THROTTLE
78314-95010

LH80

 1
78410E - CLAMP, THROTTLE CABLE
82711-12200

LH80..LHD

 1
Common parts
90179-06158
90179-08044
90468-04099
90950-01056
90959-01216
90989-01007
90989-01055
90989-01057
90989-01058
91611-60814
91651-40816
91655-40820
93385-26020
94611-10600
