LH80L-MDBW3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LHD

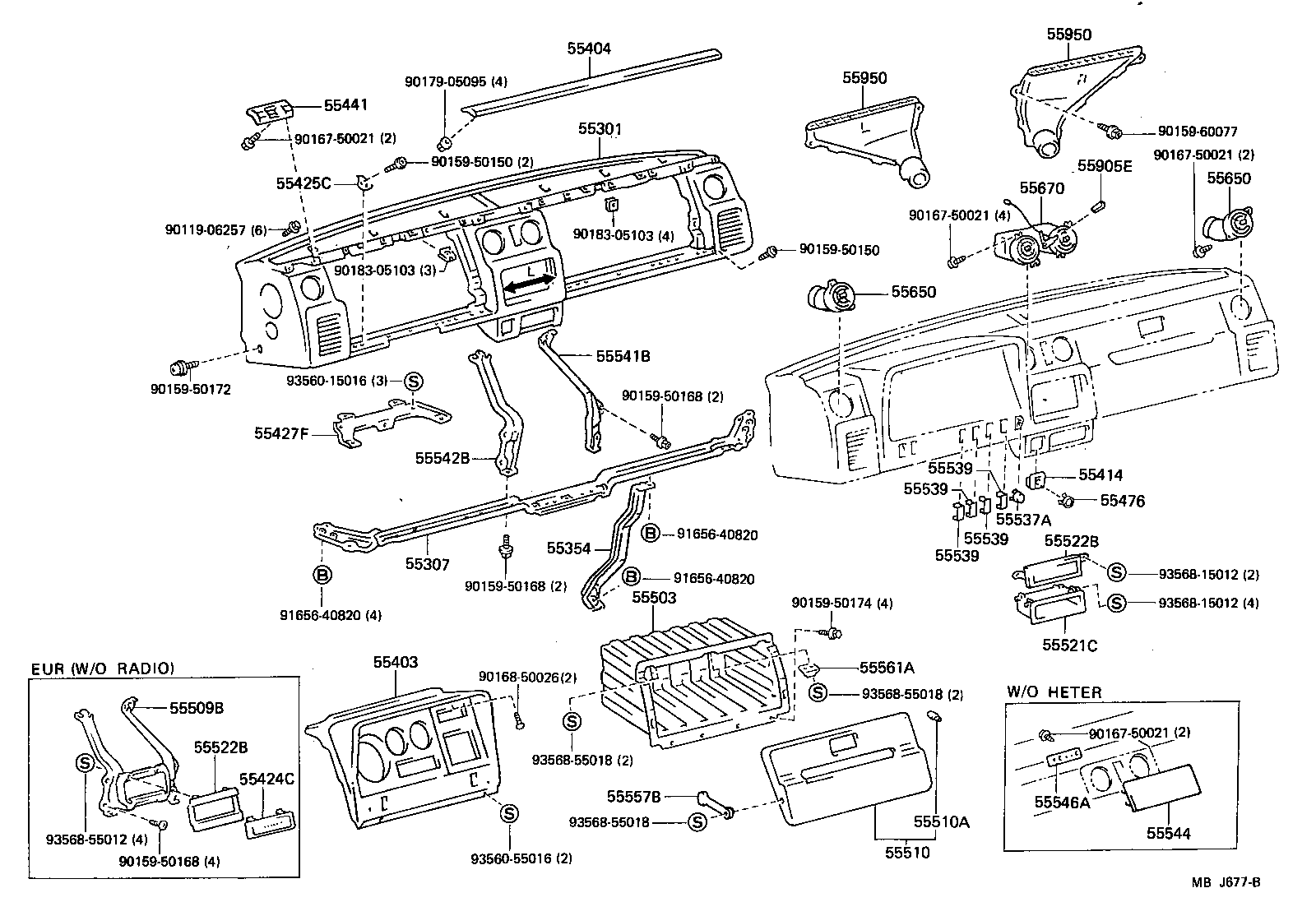

Click highlighted areas on diagram

diagram 55301 55307 55354 55403 55404 55414 55424C 55425C 55427F 55441 55476 55503 55509B 55510 55510A 55521C 55522B 55522B 55537A 55539 55539 55539 55539 55541B 55542B 55544 55546A 55557B 55561A 55650 55650 55670 55905E 55950 55950 9011906257 9015950150 9015950150 9015950168 9015950168 9015950168 9015950172 9015950174 9015960077 9016750021 9016750021 9016750021 9016750021 9016850026 9017905095 9018305103 9018305103 9165640820 9165640820 9165640820 9356015016 9356055016 9356815012 9356815012 9356855012 9356855018 9356855018 9356855018
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-9502803

LH80,YH81..EUR

L=180,GRAY,SHADOW GRAY

 1
55311-9541903

LH80,YH8#..LHD

L=150,GRAY,SHADOW GRAY

 1
55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55307-95404

LH80,YH8#..LHD

 1
55354 - BRACE, INSTRUMENT PANEL TO FLOOR
55351-95400

LH80,YH8#

 1
55403 - HOOD SUB-ASSY, METER
55403-95B1103

LH80,YH8#..LHD

W/O CLOCK,HEATER,GRAY,SHADOW GRAY

 1
55403-95B1603

LH80,YH8#..LHD

W/CLOCK,W/O HEATER,GRAY,SHADOW GRAY

 1
55403-95B1403

LH80,YH8#..LHD

W/CLOCK,HEATER,GRAY,SHADOW GRAY

 1
55403-95B0903

LH80,YH8#..LHD

W/O CLOCK,W/HEATER,GRAY,SHADOW GRAY

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55401-9541303

LH80,YH8#..LHD

GRAY,SHADOW GRAY

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55414-95J00

LH80,YH8#

 1
55424C - PANEL, RADIO TUNER FINISH
55424-9501001

LH80,YH81..EUR

BLACK,BLACK

 1
55425C - BRACKET, METER HOOD SET, NO.1
55425-95403

LH80,YH8#

 2
55427F - BRACKET, METER HOOD SET, NO.3
55427-95401

LH80,YH8#

 1
55441 - BOX, INSTRUMENT PANEL
55441-9541703

LH80,YH8#

GRAY,SHADOW GRAY

 1
55476 - COVER, CIGARETTE LIGHTER HOLE
55477-9501001

LH80,YH8#..EUR,GEN

BLACK,BLACK

 1
55503 - COMPARTMENT SUB-ASSY, GLOVE
55581-9540001

LH80,YH8#

BLACK,BLACK

 1
55509B - RETAINER SUB-ASSY, RADIO TUNER COVER
55509-95010

LH80,YH81..EUR

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-9541203

LH80,YH8#

GRAY,SHADOW GRAY

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-05080

LH80,YH8#

OD=10

 2
90541-03015

LH80,YH8#

OD=7

 1
55521C - COVER, STEREO OPENING
55521-1405001

LH80,YH81..EUR

BLACK,BLACK

 1
55522B - COVER, RADIO TUNER OPENING
55522-14070

LH80,YH81..EUR

 1
55522B - COVER, RADIO TUNER OPENING
55522-14070

LH80,YH81..EUR

 1
55537A - COVER, THROTTLE KNOB HOLE
55537-9501003

LH80,YH8#

GRAY,SHADOW GRAY

 1
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

LH80,YH8#

GRAY,SHADOW GRAY

 5
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

LH80,YH8#

GRAY,SHADOW GRAY

 5
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

LH80,YH8#

GRAY,SHADOW GRAY

 5
55539 - COVER, SPARE SWITCH HOLE
55539-95J0003

LH80,YH8#

GRAY,SHADOW GRAY

 5
55541B - RETAINER, RADIO TUNER OPENING, NO.1
55541-95407

LH80,YH8#

 1
55542B - RETAINER, RADIO TUNER OPENING, NO.2
55542-95407

LH80,YH8#

 1
55544 - COVER, INSTRUMENT PANEL REGISTER HOLE
55544-9541003

LH80,YH8#..EUR,GEN

GRAY,SHADOW GRAY

 1
55546A - PLATE, CENTER REGISTER COVER
55546-95400

LH80,YH8#..EUR,GEN

 2
55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK
55557-9540001

LH80,YH8#

BLACK,BLACK

 2
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-9540101

LH80,YH8#

BLACK,BLACK

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-9540001

LH80,YH8#

BLACK,BLACK

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-9540001

LH80,YH8#

BLACK,BLACK

 2
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-9540001

LH80,YH8#

BLACK,BLACK

 1
55905E - KNOB SUB-ASSY, CONTROL
55905-1205001

LH80,YH8#

BLACK,BLACK

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-95010

LH80,YH8#

RH

 1
55960-95010

LH80,YH8#

LH

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-95010

LH80,YH8#

RH

 1
55960-95010

LH80,YH8#

LH

 1
Common parts
90119-06257
90159-50150
90159-50168
90159-50172
90159-50174
90159-60077
90167-50021
90168-50026
90179-05095
90183-05103
91656-40820
93560-15016
93560-55016
93568-15012
93568-55012
93568-55018
