LH80L-MDBW3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

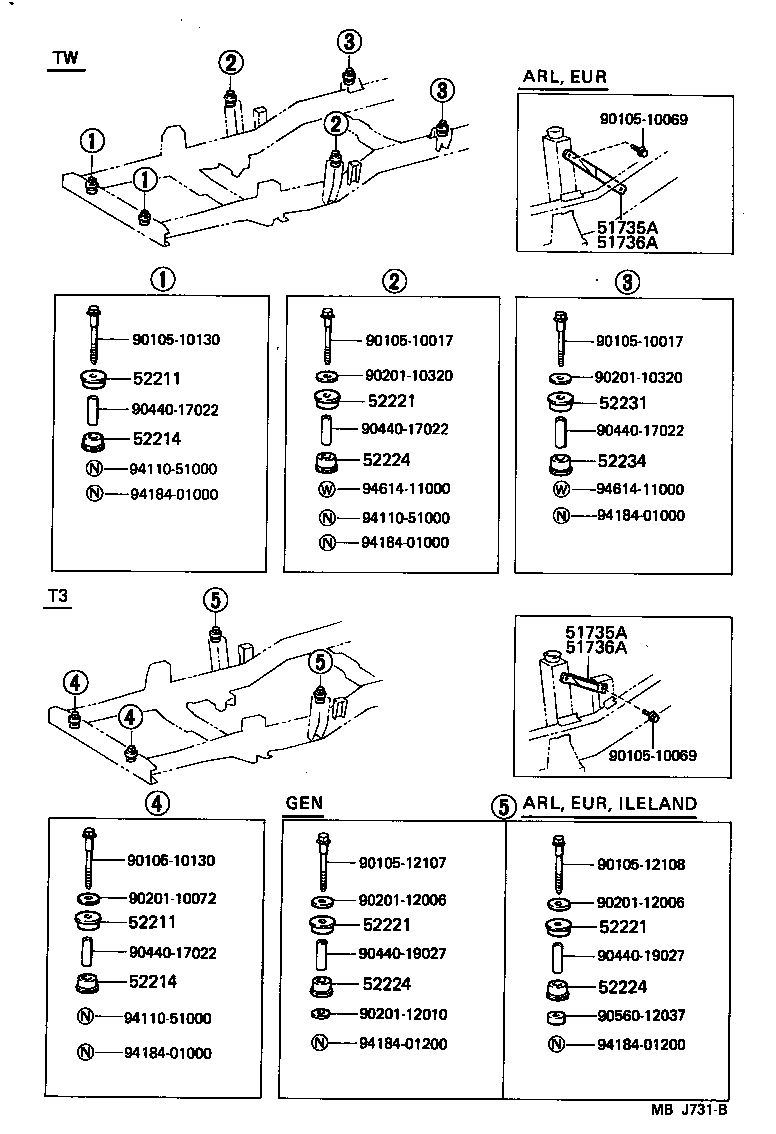

Click highlighted areas on diagram

diagram 51735A 51735A 51736A 51736A 52211 52211 52214 52214 52221 52221 52221 52224 52224 52224 52231 52234 9010510017 9010510017 9010510069 9010510069 9010510130 9010510130 9010512107 9010512108 9020110072 9020110320 9020110320 9020112006 9020112006 9020112010 9044017022 9044017022 9044017022 9044017022 9044019027 9044019027 9056012037 9411051000 9411051000 9411051000 9418401000 9418401000 9418401000 9418401000 9418401200 9418401200 9461411000 9461411000
Part # Description Qty Price
51735A - REINFORCEMENT, CAB REAR MOUNTING, RH
51735-26020

LH80,YH8#..T3

 1
51735A - REINFORCEMENT, CAB REAR MOUNTING, RH
51735-26020

LH80,YH8#..T3

 1
51736A - REINFORCEMENT, CAB REAR MOUNTING, LH
51736-26020

LH80,YH8#..T3

 1
51736A - REINFORCEMENT, CAB REAR MOUNTING, LH
51736-26020

LH80,YH8#..T3

 1
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-26010

LH80,YH8#

 2
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-26010

LH80,YH8#

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-26010

LH80,YH8#

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-26010

LH80,YH8#

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-26020

LH80,YH8#..T3

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-26020

LH80,YH8#..T3

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-26020

LH80,YH8#..T3

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-26020

LH80,YH8#..T3

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-26020

LH80,YH8#..T3

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-26020

LH80,YH8#..T3

 2
Common parts
90105-10017
90105-10069
90105-10130
90105-12107
90105-12108
90201-10072
90201-10320
90201-12006
90201-12010
90440-17022
90440-19027
90560-12037
94110-51000
94184-01000
94184-01200
94614-11000
