LH80L-MDBW3 (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8808) ; (8808- )2Y

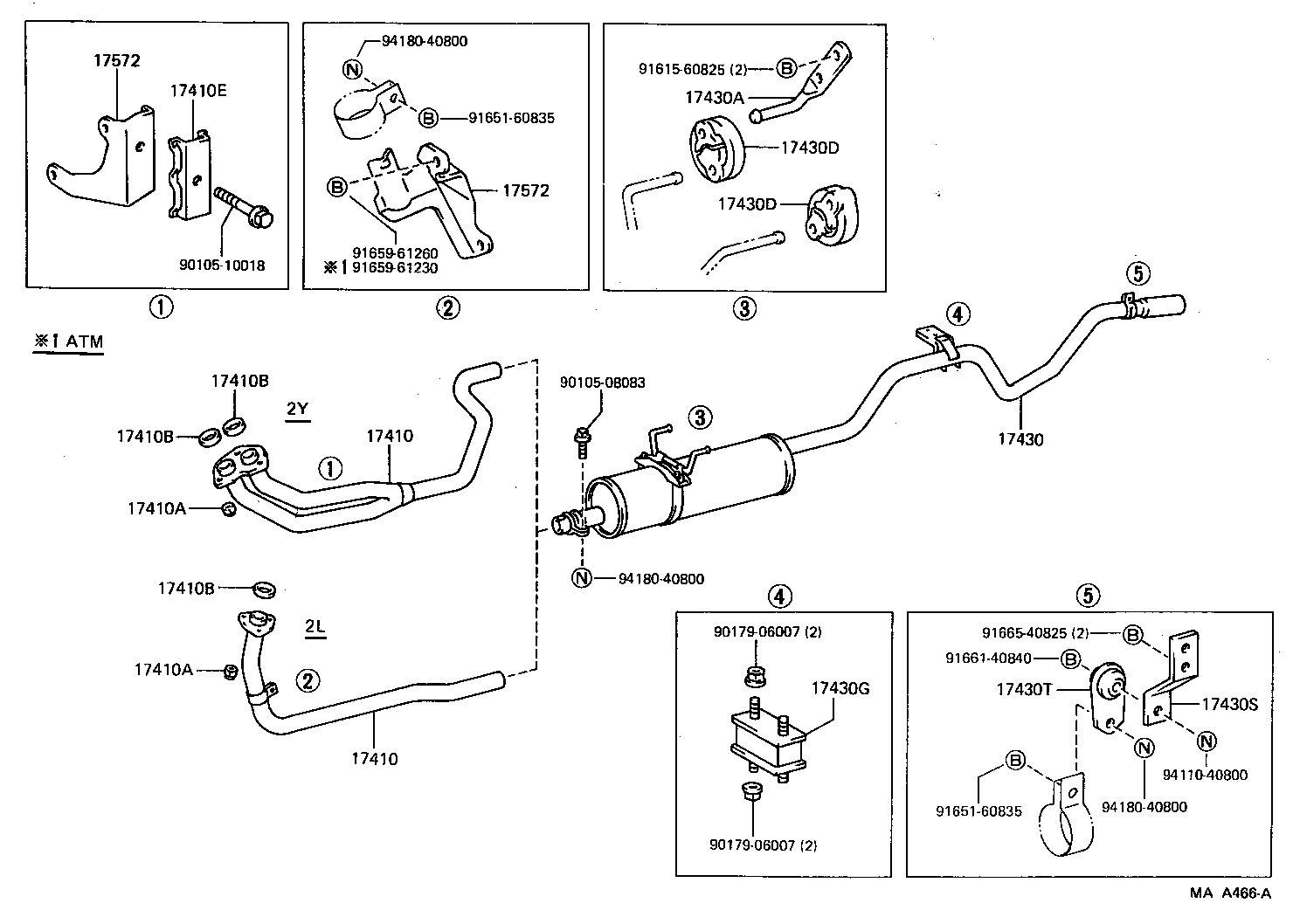

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410B 17410E 17430 17430A 17430D 17430D 17430G 17430S 17430T 17572 17572 9010508083 9010510018 9017906007 9017906007 9161560825 9165160835 9165160835 9165961230 9165961260 9166140840 9166540825 9411040800 9418040800 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54601

2L..LH80

 1
17410-54593

2L..LH80..EUR

 1
17410-54602

2L..LH80

 1
17410-5B060

2L..LH80..EUR

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54601

2L..LH80

 1
17410-54593

2L..LH80..EUR

 1
17410-54602

2L..LH80

 1
17410-5B060

2L..LH80..EUR

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,2Y..LH80,YH81

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,2Y..LH80,YH81

 3
17410B - GASKET, EXHAUST PIPE
90917-06042

2L..LH80

 1
90917-06066

2L..LH80

 1
90917-06004

2L..LH80

 1
17410B - GASKET, EXHAUST PIPE
90917-06042

2L..LH80

 1
90917-06066

2L..LH80

 1
90917-06004

2L..LH80

 1
17410B - GASKET, EXHAUST PIPE
90917-06042

2L..LH80

 1
90917-06066

2L..LH80

 1
90917-06004

2L..LH80

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-5B180

2L..LH80..EUR,GEN

 1
17430-54813

2L..LH80..ARL,EUR

 1
17430-5B181

2L..LH80..EUR,GEN

 1
17430-71261

2L,2Y..LH80,YH81

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17575-71050

2L,2Y..LH80,YH81

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2L,2Y..LH80,YH81

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2L,2Y..LH80,YH81

 2
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-61010

2L,2Y..LH80,YH81

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-54040

2L,2Y..LH80,YH81

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08009

2L,2Y..LH80,YH81

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54141

2L..LH80..5F

 1
17571-54270

2L..LH80

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54141

2L..LH80..5F

 1
17571-54270

2L..LH80

 1
Common parts
90105-08083
90105-10018
90179-06007
91615-60825
91651-60835
91659-61230
91659-61260
91661-40840
91665-40825
94110-40800
94180-40800

(8808- )2L

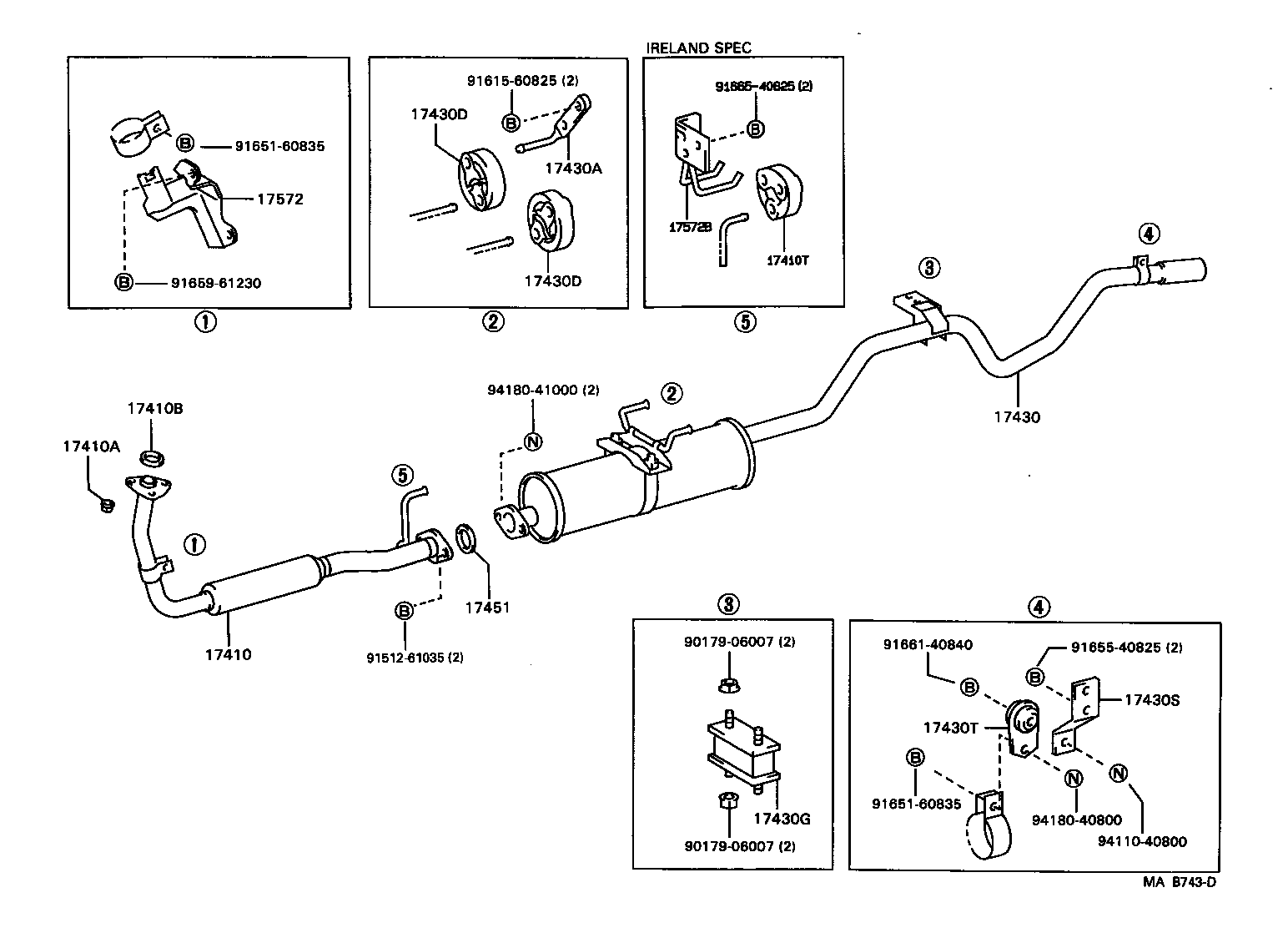

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410T 17430 17430A 17430D 17430D 17430G 17430S 17430T 17451 17572 17572B 9017906007 9017906007 9151261035 9161560825 9165160835 9165160835 9165540825 9165961230 9166140840 9166640825 9411040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54601

2L..LH80

 1
17410-54593

2L..LH80..EUR

 1
17410-54602

2L..LH80

 1
17410-5B060

2L..LH80..EUR

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,2Y..LH80,YH81

 3
17410B - GASKET, EXHAUST PIPE
90917-06042

2L..LH80

 1
90917-06066

2L..LH80

 1
90917-06004

2L..LH80

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-5B180

2L..LH80..EUR,GEN

 1
17430-54813

2L..LH80..ARL,EUR

 1
17430-5B181

2L..LH80..EUR,GEN

 1
17430-71261

2L,2Y..LH80,YH81

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17575-71050

2L,2Y..LH80,YH81

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2L,2Y..LH80,YH81

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2L,2Y..LH80,YH81

 2
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-61010

2L,2Y..LH80,YH81

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-54040

2L,2Y..LH80,YH81

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08009

2L,2Y..LH80,YH81

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

2L..LH80

 1
90917-06045

2L..LH80

 1
90917-06047

2L..LH80

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54141

2L..LH80..5F

 1
17571-54270

2L..LH80

 1
Common parts
90179-06007
91512-61035
91615-60825
91651-60835
91655-40825
91659-61230
91661-40840
91666-40825
94110-40800
94180-40800
94180-41000
