LH80L-MDBW (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L

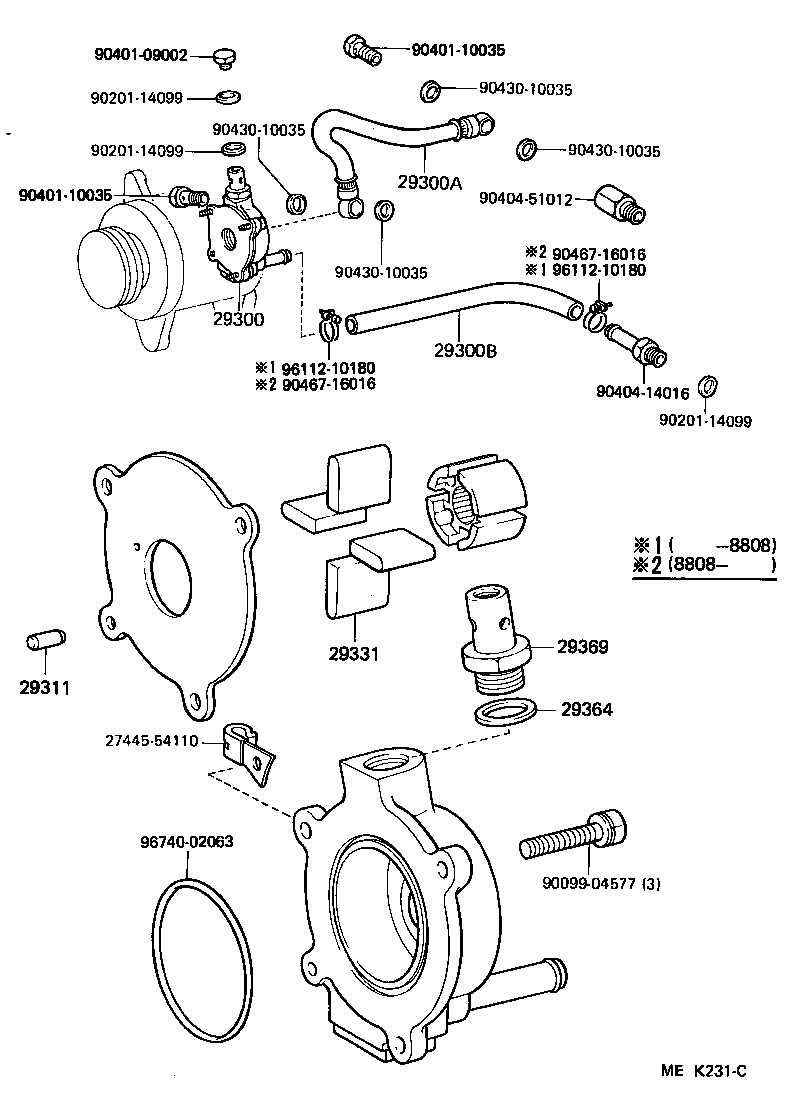

Click highlighted areas on diagram

diagram 2744554110 29300 29300A 29300B 29311 29331 29364 29369 9009904577 9020114099 9020114099 9020114099 9040109002 9040110035 9040110035 9040414016 9040451012 9043010035 9043010035 9043010035 9043010035 9046716016 9046716016 9611210180 9611210180 9674002063
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54050

2L..LH80

 1
29300-54051

2L..LH80

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02077

2L..LH80

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29611-54030

2L..LH80

 1
90923-02076

2L..LH80

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

2L..LH80

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

2L..LH80

 4
29364 - WASHER, VACUUM PUMP
29364-66010

2L..LH80

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

2L..LH80

 1
Common parts
27445-54110
90099-04577
90201-14099
90401-09002
90401-10035
90404-14016
90404-51012
90430-10035
90467-16016
96112-10180
96740-02063
