LH80L-MDB3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

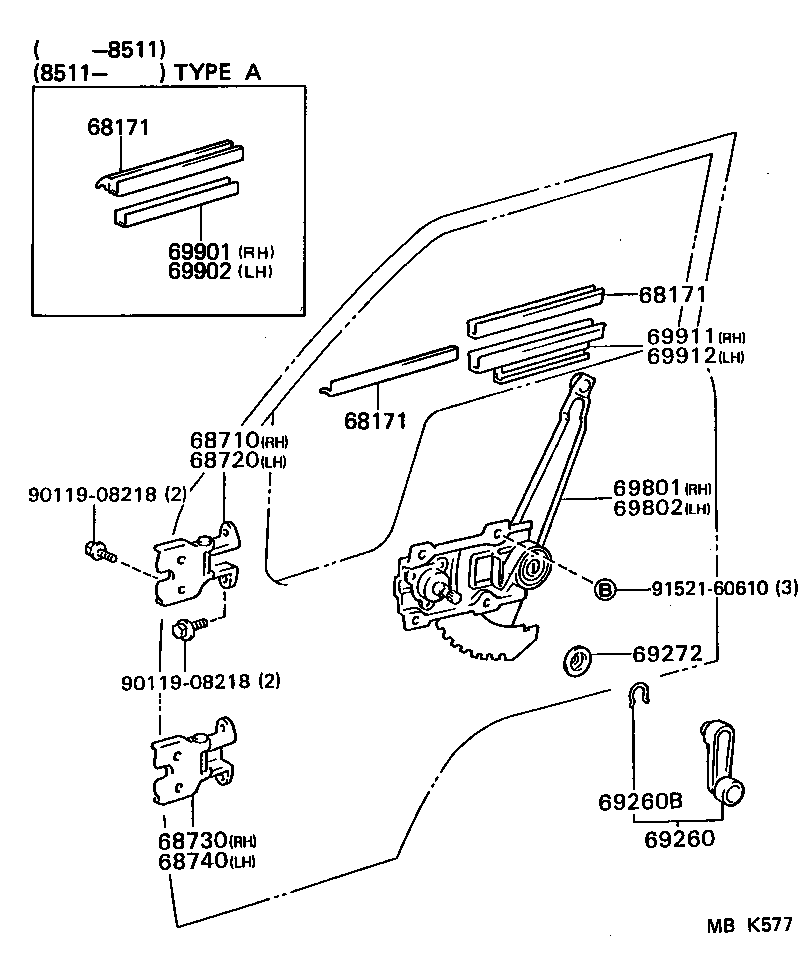

Click highlighted areas on diagram

diagram 68171 68171 68171 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69901 69902 69911 69912 9011908218 9011908218 9152160610
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68221-95400

LH80,YH8#

FR,TYPE A

 2
68221-95400

LH80,YH8#

FR

 2
68221-95401

LH80,YH8#

FR

 2
68219-95400

LH80,YH8#

RR

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68221-95400

LH80,YH8#

FR,TYPE A

 2
68221-95400

LH80,YH8#

FR

 2
68221-95401

LH80,YH8#

FR

 2
68219-95400

LH80,YH8#

RR

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68221-95400

LH80,YH8#

FR,TYPE A

 2
68221-95400

LH80,YH8#

FR

 2
68221-95401

LH80,YH8#

FR

 2
68219-95400

LH80,YH8#

RR

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95702

LH80,YH8#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95702

LH80,YH8#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-95702

LH80,YH8#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95702

LH80,YH8#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004033

LH80,YH8#

GRAY,SHADOW GRAY

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LH80,YH8#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69272-3001008

LH80,YH8#

NATURAL WHITE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95404

LH80,YH8#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95406

LH80,YH8#

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69912-95400

LH80,YH8#

TYPE A

 1
69912-95400

LH80,YH8#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69912-95400

LH80,YH8#

TYPE A

 1
69912-95400

LH80,YH8#

 1
69911 - CHANNEL, FRONT DOOR GLASS, REAR RH
69901-95403

LH80,YH8#

 1
69912 - CHANNEL, FRONT DOOR GLASS, REAR LH
69901-95403

LH80,YH8#

 1
Common parts
90119-08218
91521-60610
