LH80L-MDB3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

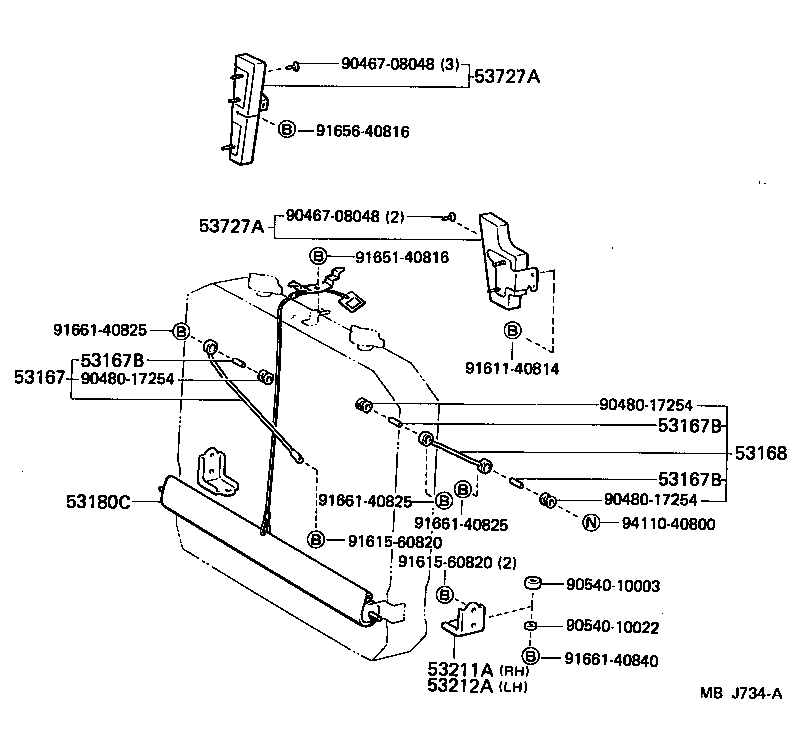

Click highlighted areas on diagram

diagram 53167 53167B 53167B 53167B 53168 53180C 53211A 53212A 53727A 53727A 9046708048 9046708048 9048017254 9048017254 9048017254 9054010003 9054010022 9161140814 9161560820 9161560820 9165140816 9165640816 9166140825 9166140825 9166140825 9166140840 9411040800
Part # Description Qty Price
53167 - ROD, RADIATOR BRACE, RH
53016-26020

LH80,YH8#

 1
53167B - TUBE(FOR RADIATOR BRACE ROD)
90440-11043

LH80,YH8#

 3
53167B - TUBE(FOR RADIATOR BRACE ROD)
90440-11043

LH80,YH8#

 3
53167B - TUBE(FOR RADIATOR BRACE ROD)
90440-11043

LH80,YH8#

 3
53168 - ROD, RADIATOR BRACE, LH
53018-26010

LH80,YH8#

 1
53180C - SHUTTER ASSY, RADIATOR
53180-95A01

LH80

 1
53211A - BRACKET, RADIATOR SUPPORT, RH
51411-26010

LH80,YH8#

 1
53212A - BRACKET, RADIATOR SUPPORT, LH
51411-26010

LH80,YH8#

 1
Common parts
90467-08048
90480-17254
90540-10003
90540-10022
91611-40814
91615-60820
91651-40816
91656-40816
91661-40825
91661-40840
94110-40800
