YU80R-MDDTN3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )B..BU60,80..T3..WT ; (8409- )B,11B,13B..BU61,62,63,65,81,82..WT

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17420 17420F 17420G 17420H 17420R 17420X 17420X 17430 17430 17430S 17430S 17430S 17430T 17430T 17430W 17430W 17444A 17451 17451 9011908486 9017906007 9017906007 9161140820 9161140820 9161140820 9161160835 9161160835 9161160835 9161160835 9161540825 9161540825 9161540825 9165141020 9411040800 9411040800 9412040800 9418040800
Part # Description Qty Price
Common parts
90119-08486
90179-06007
91611-40820
91611-60835
91615-40825
91651-41020
94110-40800
94120-40800
94180-40800

(8409- )3Y,4Y..YU8#

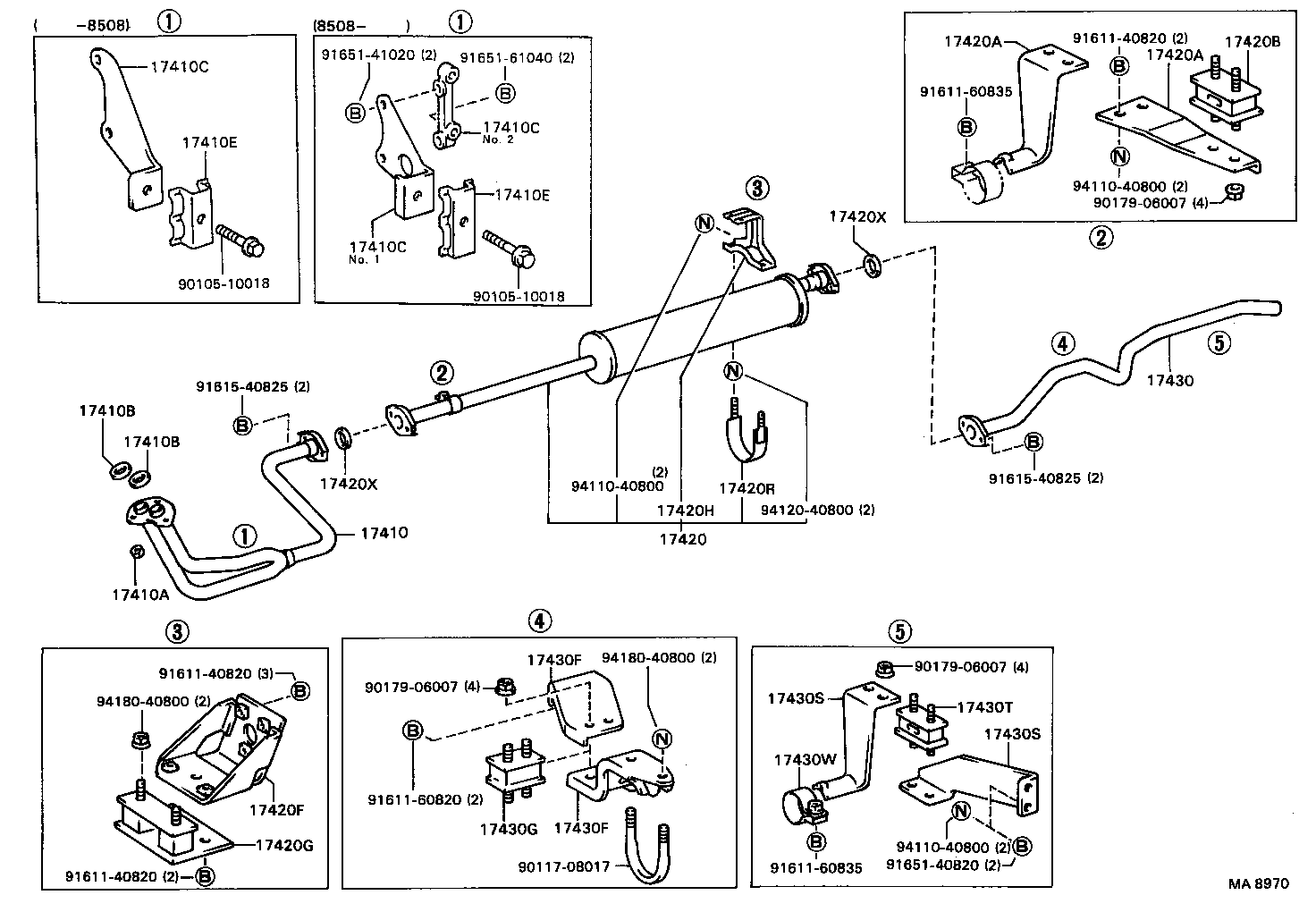

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410C 17410C 17410E 17410E 17420 17420A 17420A 17420B 17420F 17420G 17420H 17420R 17420X 17420X 17430 17430F 17430F 17430G 17430S 17430S 17430T 17430W 9010510018 9010510018 9011708017 9017906007 9017906007 9017906007 9161140820 9161140820 9161140820 9161160820 9161160835 9161160835 9161540825 9161540825 9165140820 9165141020 9165161040 9411040800 9411040800 9411040800 9412040800 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-73090

3Y,4Y..YU60,62,7#,8#..ARL,GEN,SA

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22R,1W,3Y,4Y..RU75,85,WU9#,YU6#,7#,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06026

3Y,4Y..YU6#,70,80

 2
17410B - GASKET, EXHAUST PIPE
90917-06026

3Y,4Y..YU6#,70,80

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73050

22R,3Y,4Y..RU75,85,YU6#,70,80

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73050

22R,3Y,4Y..RU75,85,YU6#,70,80

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73050

22R,3Y,4Y..RU75,85,YU6#,70,80

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17589-27010

22R,3Y,4Y..RU75,85,YU6#,7#,8#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17589-27010

22R,3Y,4Y..RU75,85,YU6#,7#,8#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-73030

3Y,4Y..YU8#

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-56010

3Y,4Y..YU8#

PIPE SIDE

 1
17572-73020

3Y,4Y..YU8#

BODY SIDE

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-56010

3Y,4Y..YU8#

PIPE SIDE

 1
17572-73020

3Y,4Y..YU8#

BODY SIDE

 1
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
17567-61030

22R,1W,3Y,4Y..RU75,85,WU9#,YU8#..GEN,SA

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58040

3Y,4Y..YU60,61,8#..WT

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17563-58010

3Y,4Y..YU6#,7#,8#

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56020

3Y,4Y..YU6#,7#,8#

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56010

3Y,4Y..YU6#,7#,8#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

3Y,4Y..YU6#,7#,8#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

3Y,4Y..YU6#,7#,8#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-58130

3Y,4Y..YU8#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

22R,3Y,4Y..RU75,YU6#,7#,8#

PIPE SIDE

 1
17574-58040

3Y,4Y..YU60,62,8#..WT

BODY SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

22R,3Y,4Y..RU75,YU6#,7#,8#

PIPE SIDE

 1
17574-58040

3Y,4Y..YU60,62,8#..WT

BODY SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

22R,1W,3Y,4Y..RU75,85,WU9#,YU6#,7#,8#

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32005

22R,3Y,4Y..RU75,YU6#,7#,8#

 1
Common parts
90105-10018
90117-08017
90179-06007
91611-40820
91611-60820
91611-60835
91615-40825
91651-40820
91651-41020
91651-61040
94110-40800
94120-40800
94180-40800
