YU80R-MDDT (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1986
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
YU6#,7#,8# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
YU6#,7#,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10100 |
YU60,61,80..WT..GEN HEAVY DUTY SPEC |
1 | ||
| 90413-10125 |
RU75,YU60,62,7#,8# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
YU60,61,70,80 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
YU60,61,70,80 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-36130 |
YU60,61,70,80 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-36130 |
YU60,61,70,80 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36150 |
YU60,62,7#,8# |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-36070 |
YU60,62,8#..RHD |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-36070 |
YU60,62,8#..RHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
YU60,62,7#,8# |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
YU60,62,7#,8# |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
YU60,62,7#,8# |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-08146 | ||||
| 90201-10282 | ||||
| 90461-06112 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90462-06017 | ||||
| 90480-08343 | ||||
| 90949-01005 | ||||
| 90949-01006 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 90949-01157 | ||||
| 90949-01159 | ||||
| 90949-01160 | ||||
| 90949-01164 | ||||
| 90949-01165 | ||||
| 90949-01188 | ||||
| 90949-01190 | ||||
| 91112-71030 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60835 | ||||
| 91615-40814 | ||||
| 91615-60825 | ||||
| 91615-61040 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
| 94110-40820 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 91651-40820 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 90461-08602 | ||||
| 90461-10629 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||

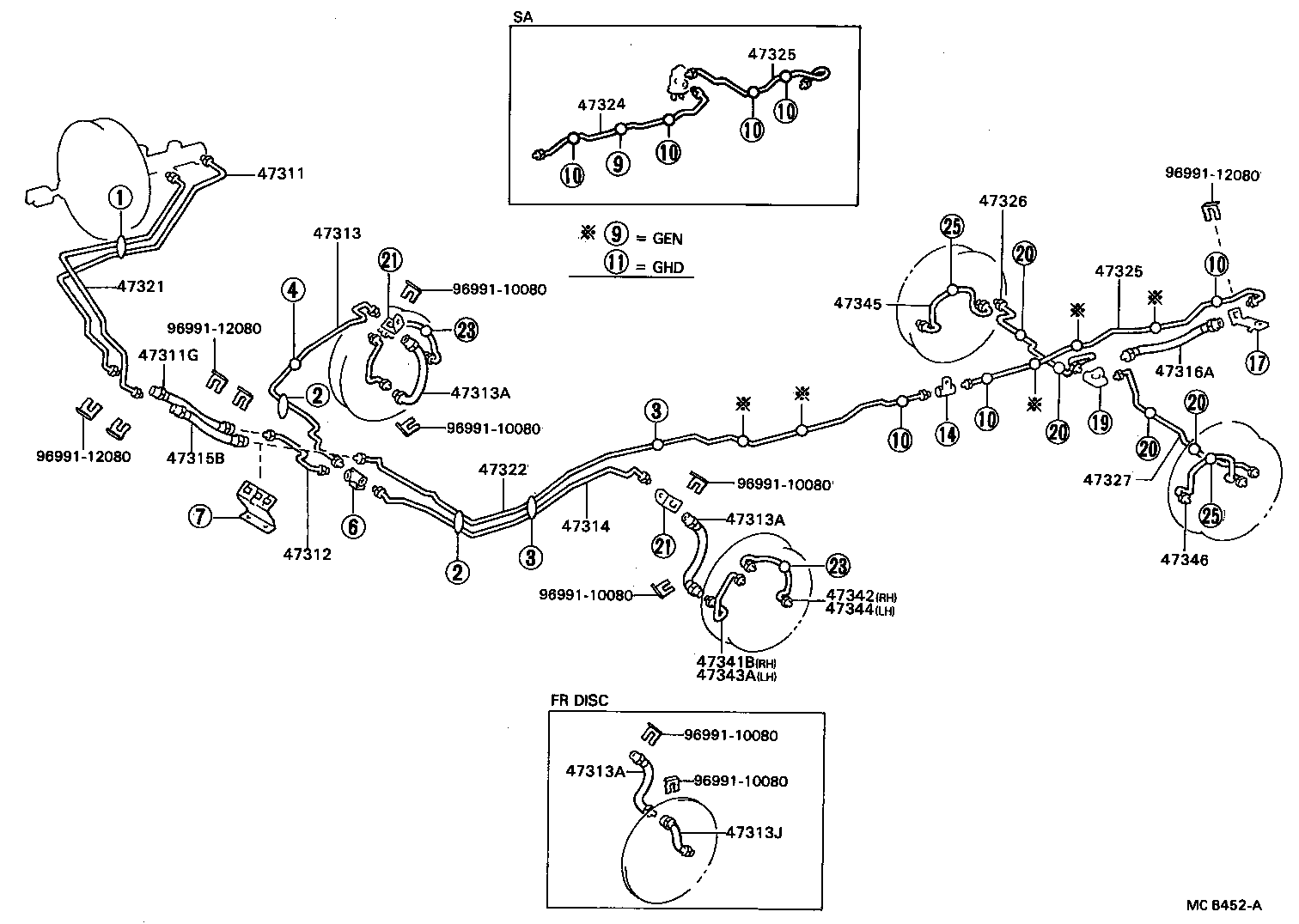

(8409- )YU8#..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36320 |
YU60,62,8#..RHD |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
YU6#,7#,8# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36250 |
YU6#,7#,8# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36160 |
YU60,62,7#,8# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02470 |
YU6#,8#..WT |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02470 |
YU6#,8#..WT |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02470 |
YU6#,8#..WT |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36230 |
YU60,62,7#,8# |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
YU6#,7#,8# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
YU60,62,7#,8# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36220 |
YU60,62,8#..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36240 |
YU60,62,8#..RHD |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36240 |
YU8#..GEN |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36240 |
YU8#..GEN |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36140 |
RU75,YU60,62,8#..WT |
1 | ||
| 47326-36150 |
RU85,YU60,62,8#..WT..GEN W/12 IN DIFF |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36180 |
RU85,YU60,62,8#..WT..GEN W/12 IN DIFF |
1 | ||
| 47327-36140 |
RU75,YU60,62,8#..WT |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36090 |
RU75,85,YU6#,8#..WT |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36030 |
RU75,85,YU6#,8#..WT |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36090 |
RU75,85,YU6#,8#..WT |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36030 |
RU75,85,YU6#,8#..WT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36040 |
RU75,85,YU6#,8#..WT |
2 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36040 |
RU75,85,YU6#,8#..WT |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
YU6#,7#,8# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
YU6#,7#,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10100 |
YU60,61,80..WT..GEN HEAVY DUTY SPEC |
1 | ||
| 90413-10125 |
RU75,YU60,62,7#,8# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
YU60,61,70,80 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
YU60,61,70,80 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-36130 |
YU60,61,70,80 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-36130 |
YU60,61,70,80 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36150 |
YU60,62,7#,8# |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-36070 |
YU60,62,8#..RHD |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-36070 |
YU60,62,8#..RHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
YU60,62,7#,8# |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
YU60,62,7#,8# |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
YU60,62,7#,8# |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-08146 | ||||
| 90201-10282 | ||||
| 90461-06112 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90462-06017 | ||||
| 90480-08343 | ||||
| 90949-01005 | ||||
| 90949-01006 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 90949-01157 | ||||
| 90949-01159 | ||||
| 90949-01160 | ||||
| 90949-01164 | ||||
| 90949-01165 | ||||
| 90949-01188 | ||||
| 90949-01190 | ||||
| 91112-71030 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60835 | ||||
| 91615-40814 | ||||
| 91615-60825 | ||||
| 91615-61040 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
| 94110-40820 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 91651-40820 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 90461-08602 | ||||
| 90461-10629 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
