YU80L-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88444 88595 88595 8889920090 8889920090 9009904312 9009904313 9009904315 9009904316 9009904316 9009904317 9009904914 9009904993 9011908200 9011910079 9161160850
Part # Description Qty Price

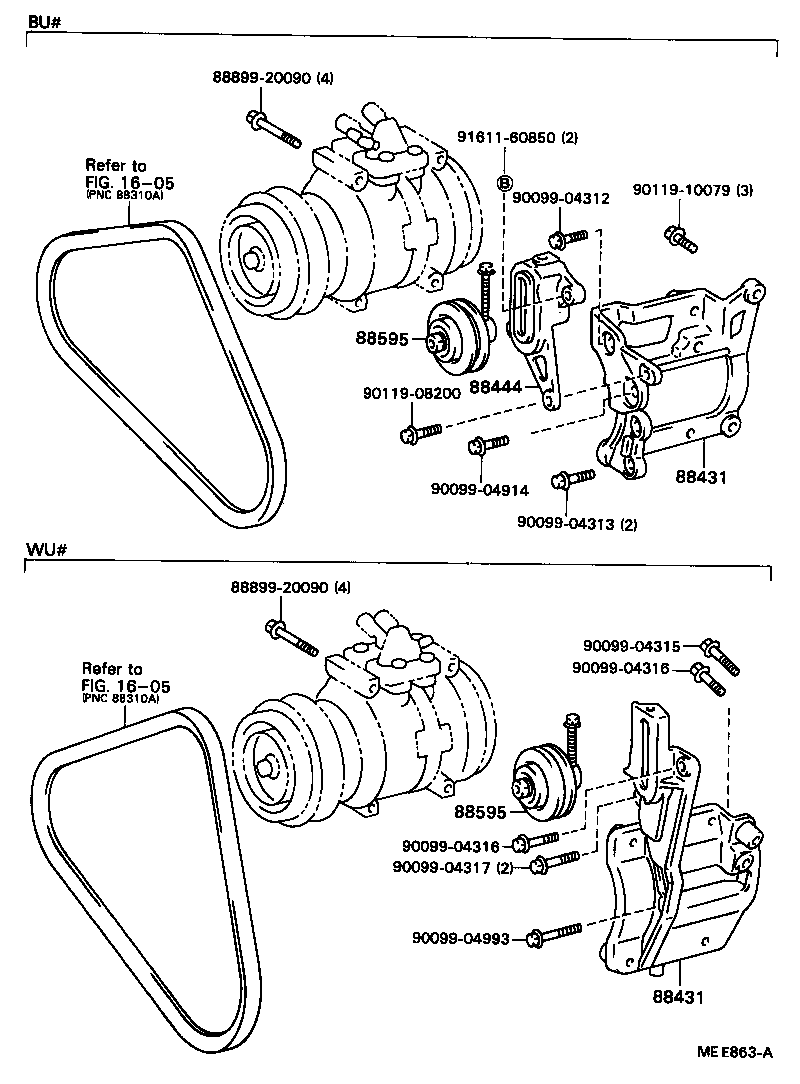

88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28050

YU6#,70,80..ARL,GEN,SA

 1
88431-28070

YU6#,70,80..ARL,GEN,SA

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28050

YU6#,70,80..ARL,GEN,SA

 1
88431-28070

YU6#,70,80..ARL,GEN,SA

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

YU6#,70,80..ARL,GEN,SA

 1
88440-28050

YU6#,70,80..ARL,GEN,SA

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

YU6#,70,80..ARL,GEN,SA

 1
88440-28050

YU6#,70,80..ARL,GEN,SA

 1
Common parts
88899-20090
90099-04312
90099-04313
90099-04315
90099-04316
90099-04317
90099-04914
90099-04993
90119-08200
90119-10079
91611-60850
Linked diagrams
1605

(8409- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330A 88330B 88403 9009907087 9009907114 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

YU6#,7#,8#..ARL,GEN,SA

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 1
88320 - COMPRESSOR ASSY, COOLER
88320-36160

YU6#,7#,8#..ARL,GEN,SA

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

YU6#,7#,8#..ARL,GEN,SA

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 1
Common parts
90099-07087
90099-07114
94110-40800
94511-00800

(8409- )RU75,85,YU6#,7#,8#

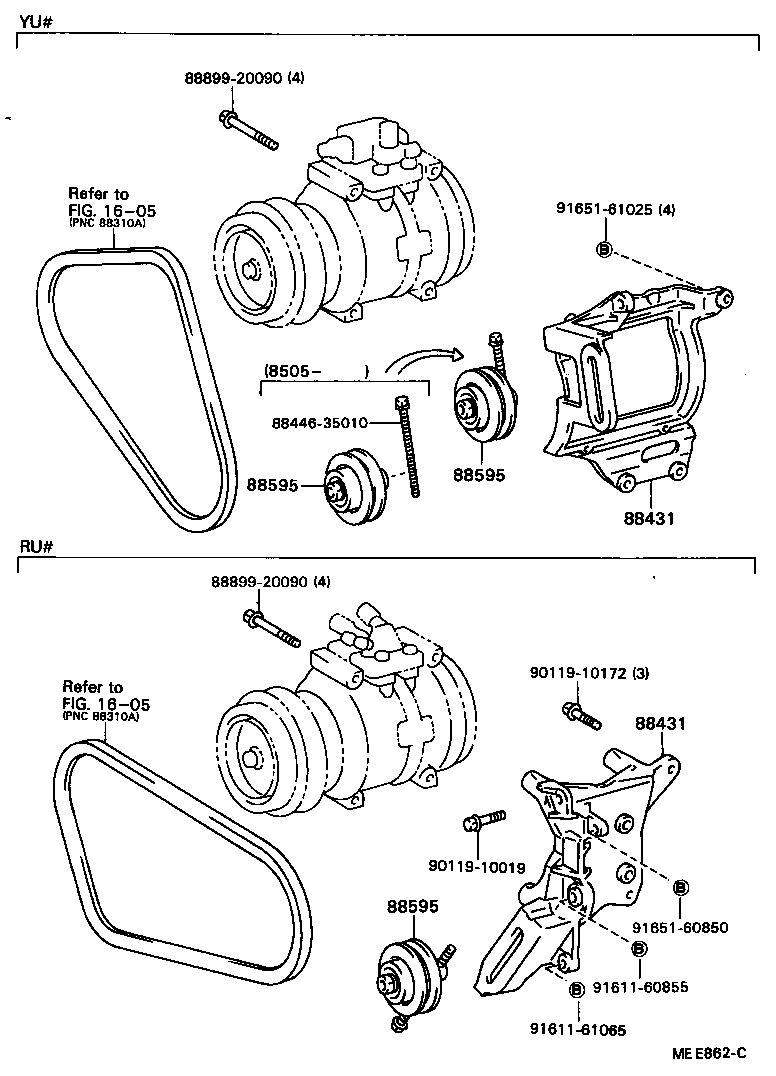

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 8844635010 88595 88595 88595 8889920090 8889920090 9011910019 9011910172 9161160855 9161161065 9165160850 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28050

YU6#,70,80..ARL,GEN,SA

 1
88431-28070

YU6#,70,80..ARL,GEN,SA

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28050

YU6#,70,80..ARL,GEN,SA

 1
88431-28070

YU6#,70,80..ARL,GEN,SA

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

YU6#,70,80..ARL,GEN,SA

 1
88440-28050

YU6#,70,80..ARL,GEN,SA

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

YU6#,70,80..ARL,GEN,SA

 1
88440-28050

YU6#,70,80..ARL,GEN,SA

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

YU6#,70,80..ARL,GEN,SA

 1
88440-28050

YU6#,70,80..ARL,GEN,SA

 1
Common parts
88446-35010
88899-20090
90119-10019
90119-10172
91611-60855
91611-61065
91651-60850
91651-61025
Linked diagrams
1605

(8409- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330A 88330B 88403 9009907087 9009907114 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

YU6#,7#,8#..ARL,GEN,SA

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 1
88320 - COMPRESSOR ASSY, COOLER
88320-36160

YU6#,7#,8#..ARL,GEN,SA

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

YU6#,7#,8#..ARL,GEN,SA

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 1
Common parts
90099-07087
90099-07114
94110-40800
94511-00800

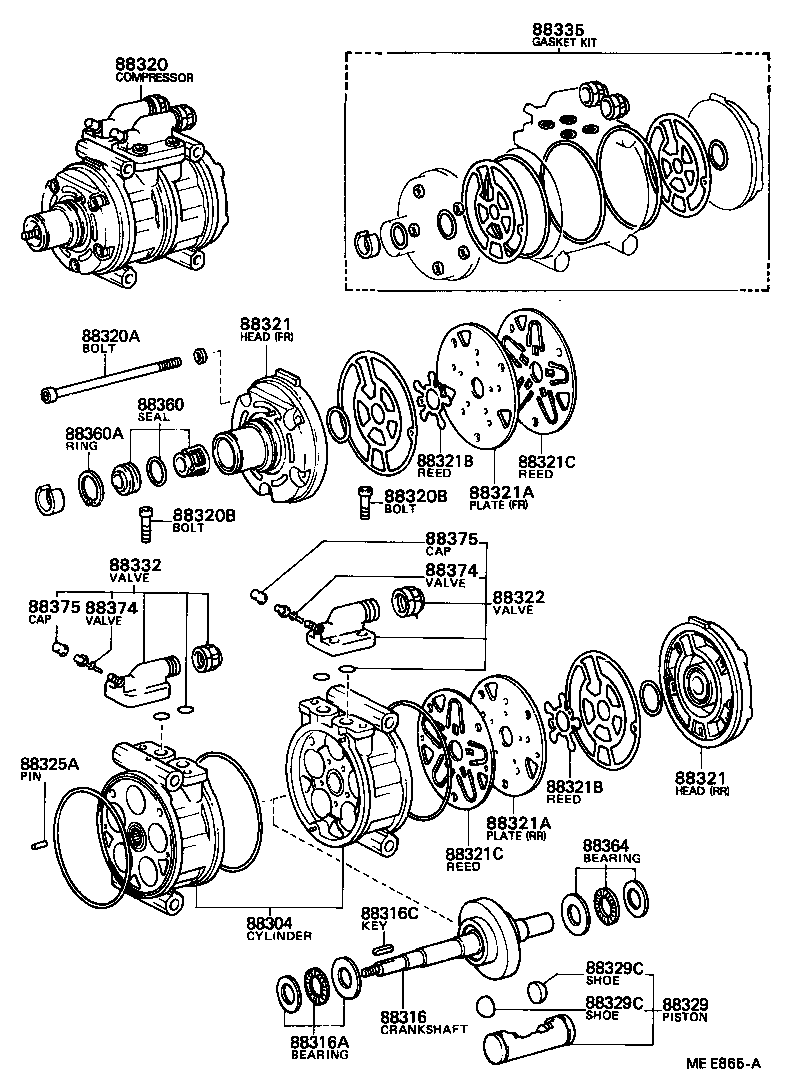

(8409-8608)RU75,85,WU9#..ARL,GEN ; (8409- )YU6#,7#,8#..ARL,GEN,SA

Click highlighted areas on diagram

diagram 88304 88316 88316A 88316C 88320 88320A 88320B 88320B 88321 88321 88321A 88321A 88321B 88321B 88321C 88321C 88322 88325A 88329 88329C 88329C 88332 88335 88360 88360A 88364 88374 88374 88375 88375
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-14021

RU75,85,YU6#,70,80..ARL,GEN,SA

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-14011

RU75,85,YU6#,70,80..ARL,GEN,SA

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-14010

RU75,85,YU6#,70,80..ARL,GEN,SA

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13012

RU75,85,YU6#,70,80..ARL,GEN,SA

 1
88320 - COMPRESSOR ASSY, COOLER
88320-36160

YU6#,7#,8#..ARL,GEN,SA

 1
88320A - BOLT, THROUGH
90099-04958

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 5
88320B - BOLT, SERVICE VALVE
90099-04255

YU6#,7#,8#..ARL,GEN,SA

 4
88320B - BOLT, SERVICE VALVE
90099-04255

YU6#,7#,8#..ARL,GEN,SA

 4
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-14011

RU75,85,YU6#,7#,8#..ARL,GEN,SA

RR

 1
88321-14011

RU75,85,YU6#,7#,8#..ARL,GEN,SA

FR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-14011

RU75,85,YU6#,7#,8#..ARL,GEN,SA

RR

 1
88321-14011

RU75,85,YU6#,7#,8#..ARL,GEN,SA

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

RU75,85,YU6#,7#,8#..ARL,GEN,SA

FR

 1
88342-14010

RU75,85,YU6#,7#,8#..ARL,GEN,SA

RR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

RU75,85,YU6#,7#,8#..ARL,GEN,SA

FR

 1
88342-14010

RU75,85,YU6#,7#,8#..ARL,GEN,SA

RR

 1
88321B - REED SUB-ASSY, VALVE
88344-14011

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 2
88321B - REED SUB-ASSY, VALVE
88344-14011

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 2
88321C - REED, SUCTION VALVE
88343-14011

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 2
88321C - REED, SUCTION VALVE
88343-14011

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-36110

YU6#,7#,8#..ARL,GEN,SA

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-14020

RU75,85,YU6#,70,80..ARL,GEN,SA

 5
88329C - SHOE, PISTON
88313-14010

RU75,85,YU6#,70,80..ARL,GEN,SA

 10
88329C - SHOE, PISTON
88313-14010

RU75,85,YU6#,70,80..ARL,GEN,SA

 10
88335 - GASKET KIT, OVERHAUL
04881-10010

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-14020

RU75,85,YU6#,70,80..ARL,GEN,SA

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-14010

RU75,85,YU6#,70,80..ARL,GEN,SA

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 2
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

RU75,85,YU6#,7#,8#..ARL,GEN,SA

 2
