YU70LV-MD (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1986
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )YU7#

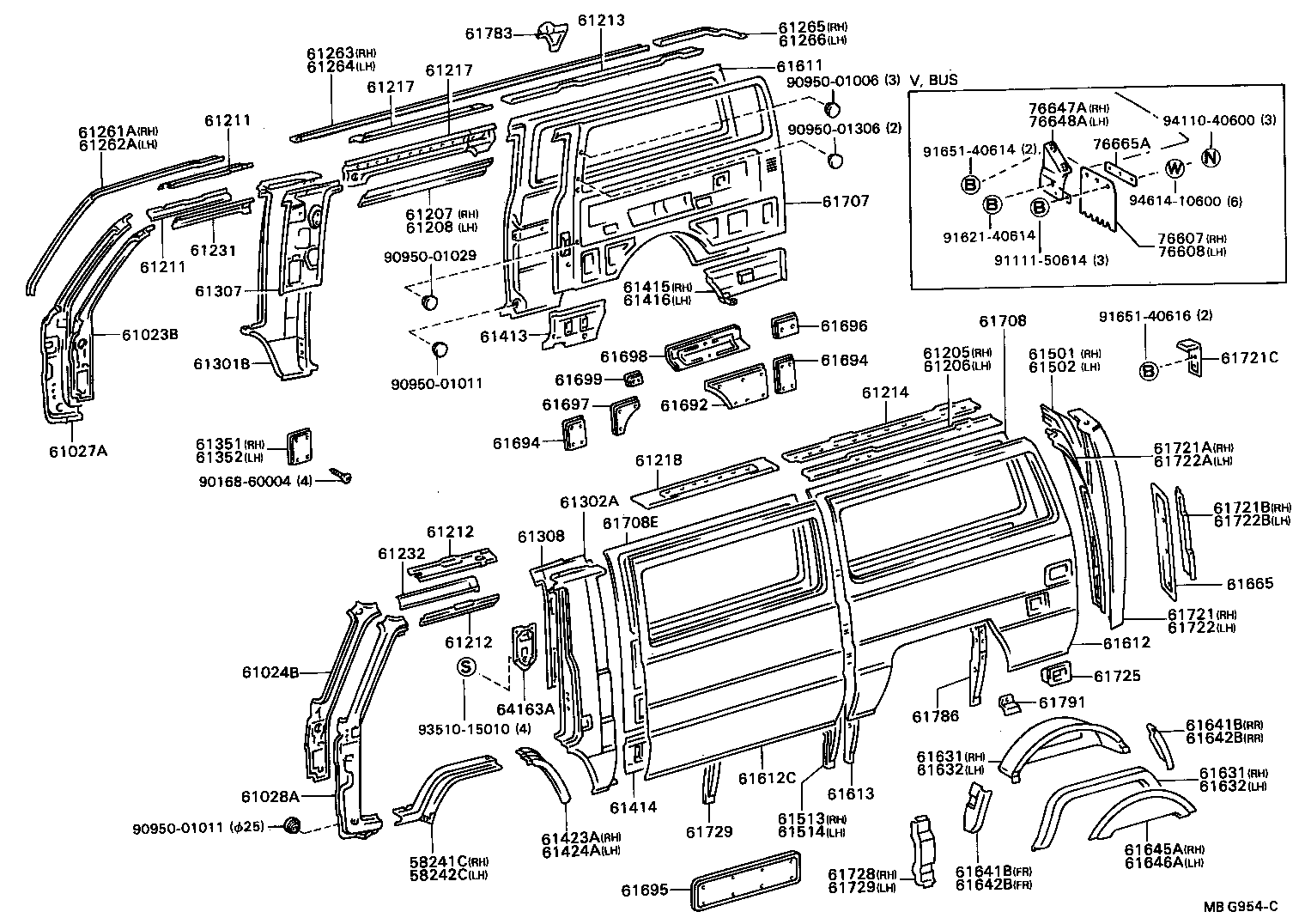

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58241C - PANEL, FLOOR SIDE, RH | ||||
| 58241-92603 |
YU7#;YU60,62..TW1 |
1 | ||
| 58242C - PANEL, FLOOR SIDE, LH | ||||
| 58242-92603 |
YU7#;YU60,62..TW1 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95401 |
RU75,85,WU9#,YU6#,7#,8#..LHD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95401 |
RU75,85,WU9#,YU6#,7#,8#..LHD |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95401 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95401 |
RU75,85,WU9#,YU6#,7#,8#..LHD W/RADIO |
1 | ||
| 61028-95400 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61207-92615 |
YU7# |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61208-92615 |
YU7# |
1 | ||
| 61207 - RAIL SUB-ASSY, ROOF SIDE, INNER CENTER RH | ||||
| 61203-92615 |
YU7# |
1 | ||
| 61208 - RAIL SUB-ASSY, ROOF SIDE, INNER CENTER LH | ||||
| 61204-92615 |
YU7# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95403 |
YU7# LWR |
1 | ||
| 61225-92601 |
YU7# UPR |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95403 |
YU7# LWR |
1 | ||
| 61225-92601 |
YU7# UPR |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95403 |
YU7# LWR |
1 | ||
| 61226-92601 |
YU7# UPR |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95403 |
YU7# LWR |
1 | ||
| 61226-92601 |
YU7# UPR |
1 | ||
| 61213 - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61218-92605 |
YU7# |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61217-92605 |
YU7# |
1 | ||
| 61217 - RAIL, ROOF SIDE, OUTER CENTER RH | ||||
| 61227-92615 |
YU7# UPR |
1 | ||
| 61213-92615 |
YU7# LWR |
1 | ||
| 61217 - RAIL, ROOF SIDE, OUTER CENTER RH | ||||
| 61227-92615 |
YU7# UPR |
1 | ||
| 61213-92615 |
YU7# LWR |
1 | ||
| 61218 - RAIL, ROOF SIDE, OUTER CENTER LH | ||||
| 61228-92615 |
YU7# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-92601 |
YU70;YU60..TW1 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95405 |
YU60..T1,T3;RU75,85,WU9#,YU61,70,80 |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61261-92600 |
YU7# |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61262-92600 |
YU7# |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61267-92601 |
YU7# |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61268-92601 |
YU7# |
1 | ||
| 61265 - CHANNEL, QUARTER WINDOW OPENING DRIP, RH | ||||
| 61265-92605 |
YU7# |
1 | ||
| 61266 - CHANNEL, QUARTER WINDOW OPENING DRIP, LH | ||||
| 61266-92605 |
YU7# |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-92612 |
YU7# |
1 | ||
| 61302A - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-92613 |
YU7# |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-92607 |
YU7# |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-92611 |
YU7# |
1 | ||
| 61351 - COVER, CENTER BODY, INNER RH | ||||
| 61351-95A00 |
YU7# |
1 | ||
| 61352 - COVER, CENTER BODY, INNER, LH | ||||
| 61351-95A00 |
YU7# |
1 | ||
| 61413 - PANEL, ROCKER, CENTER RH | ||||
| 57405-92602 |
YU7# |
1 | ||
| 61414 - PANEL, ROCKER, CENTER LH | ||||
| 57406-92602 |
YU7# |
1 | ||
| 61415 - PANEL, ROCKER, REAR RH | ||||
| 57047-92601 |
YU7# |
1 | ||
| 61416 - PANEL, ROCKER, REAR LH | ||||
| 57048-92601 |
YU7# |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-92602 |
YU7# |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-92602 |
YU7# |
1 | ||
| 61501 - FRAME SUB-ASSY, BACK SIDE, RH | ||||
| 61605-92605 |
YU7# |
1 | ||
| 61502 - FRAME SUB-ASSY, BACK SIDE, LH | ||||
| 61606-92605 |
YU7# |
1 | ||
| 61513 - PILLAR, QUARTER LOCK INNER, RH | ||||
| 61607-92615 |
YU7# |
1 | ||
| 61514 - PILLAR, QUARTER LOCK, INNER LH | ||||
| 61608-92615 |
YU7# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-92602 |
YU7# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-92615 |
YU7# |
1 | ||
| 61612C - EXTENSION, QUARTER PANEL, LH | ||||
| 61614-92615 |
YU7# |
1 | ||
| 61613 - PATCH, QUARTER PANEL | ||||
| 61604-92605 |
YU7# |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61633-92601 |
YU7# INNER |
1 | ||
| 61631-92605 |
YU7# OUTER |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61633-92601 |
YU7# INNER |
1 | ||
| 61631-92605 |
YU7# OUTER |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61632-92605 |
YU7# OUTER |
1 | ||
| 61633-92601 |
YU7# INNER |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61632-92605 |
YU7# OUTER |
1 | ||
| 61633-92601 |
YU7# INNER |
1 | ||
| 61641B - GUSSET, QUARTER WHEEL HOUSE, RH | ||||
| 61064-92602 |
YU7# FR |
1 | ||
| 61063-92602 |
YU7# RR |
1 | ||
| 61641B - GUSSET, QUARTER WHEEL HOUSE, RH | ||||
| 61064-92602 |
YU7# FR |
1 | ||
| 61063-92602 |
YU7# RR |
1 | ||
| 61642B - GUSSET, QUARTER WHEEL HOUSE, LH | ||||
| 61061-92602 |
YU7# FR |
1 | ||
| 61062-92602 |
YU7# RR |
1 | ||
| 61642B - GUSSET, QUARTER WHEEL HOUSE, LH | ||||
| 61061-92602 |
YU7# FR |
1 | ||
| 61062-92602 |
YU7# RR |
1 | ||
| 61645A - PANEL, QUARTER FENDER INNER, RH | ||||
| 61645-92605 |
YU7# |
1 | ||
| 61646A - PANEL, QUARTER FENDER INNER, LH | ||||
| 61646-92605 |
YU7# |
1 | ||
| 61665 - COVER, QUARTER CORNER INNER | ||||
| 61665-92605 |
YU7# RH |
1 | ||
| 61666-92605 |
YU7# LH |
1 | ||
| 61692 - COVER, QUARTER INNER, REAR | ||||
| 61678-95A00 |
YU7# LH |
1 | ||
| 61677-95A00 |
YU7# RH |
1 | ||
| 61694 - COVER, QUARTER INNER, NO.1 | ||||
| 61351-95A00 |
YU7# |
4 | ||
| 61694 - COVER, QUARTER INNER, NO.1 | ||||
| 61351-95A00 |
YU7# |
4 | ||
| 61695 - COVER, QUARTER INNER, NO.2 | ||||
| 61673-95A00 |
YU7# |
1 | ||
| 61696 - COVER, QUARTER INNER, NO.3 | ||||
| 61681-95A00 |
YU7# |
4 | ||
| 61697 - COVER, QUARTER INNER, NO.4 | ||||
| 61671-95A00 |
YU7# |
2 | ||
| 61698 - COVER, QUARTER INNER, NO.5 | ||||
| 61675-95A00 |
YU7# |
2 | ||
| 61699 - COVER, QUARTER INNER, NO.6 | ||||
| 61679-95A00 |
YU70 |
4 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61613-92601 |
YU7# |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61732-92615 |
YU7# |
1 | ||
| 61708E - EXTENSION, QUARTER INNER PANEL, LH | ||||
| 61736-92615 |
YU7# |
1 | ||
| 61721 - PANEL, REAR BODY OUTSIDE CORNER, RH | ||||
| 61705-92605 |
YU7# |
1 | ||
| 61721A - PANEL, QUARTER INNER CORNER, RH | ||||
| 64015-92605 |
YU7#..V |
1 | ||
| 61721B - BRACE, QUARTER PANEL CORNER, RH | ||||
| 61725-92605 |
YU7# |
1 | ||
| 61721C - RETAINER, QUARTER CONNER OPEN STOPPER CUSHION | ||||
| 67172-92605 |
YU7# |
2 | ||
| 61722 - PANEL, REAR BODY OUTSIDE CORNER, LH | ||||
| 61706-92605 |
YU7# |
1 | ||
| 61722A - PANEL, QUARTER INNER CORNER, LH | ||||
| 64016-92603 |
YU7#..V |
1 | ||
| 61722B - BRACE, QUARTER PANEL CORNER, LH | ||||
| 61726-92605 |
YU7# |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61702-92605 |
YU7# |
1 | ||
| 61728 - REINFORCEMENT, QUARTER PANEL, FRONT RH | ||||
| 61704-92605 |
YU7# |
1 | ||
| 61729 - REINFORCEMENT, QUARTER PANEL, FRONT LH | ||||
| 61704-92605 |
YU7# OUTER |
1 | ||
| 61703-92605 |
YU7# INNER |
1 | ||
| 61729 - REINFORCEMENT, QUARTER PANEL, FRONT LH | ||||
| 61704-92605 |
YU7# OUTER |
1 | ||
| 61703-92605 |
YU7# INNER |
1 | ||
| 61783 - PATCH, QUARTER PANEL INNER | ||||
| 61783-95A00 |
YU7# |
1 | ||
| 61786 - STRENGTH, QUARTER PANEL VERTICAL | ||||
| 61703-92606 |
YU7# |
2 | ||
| 61791 - BRACE, QUARTER INNER PANEL | ||||
| 61781-95A01 |
YU7# |
1 | ||
| 64163A - COVER, BACK CORNER, INNER | ||||
| 64163-95403 |
RU75,85,WU9#,YU6#,70,80..GEN,SA |
2 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 66241-92310 |
YU7# |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 66241-92310 |
YU7# |
1 | ||
| 76647A - SUPPORT, REAR BODY MUDGUARD, RH | ||||
| 66240-92602 |
YU7# |
1 | ||
| 76648A - SUPPORT, REAR BODY MUDGUARD, LH | ||||
| 66250-92602 |
YU7# |
1 | ||
| 76665A - BRACE, REAR MOUDGUARD | ||||
| 66224-92605 |
YU7# |
2 | ||
| Common parts | ||||
| 90168-60004 | ||||
| 90950-01006 | ||||
| 90950-01011 | ||||
| 90950-01029 | ||||
| 90950-01306 | ||||
| 91111-50614 | ||||
| 91621-40614 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93510-15010 | ||||
| 94110-40600 | ||||
| 94614-10600 | ||||
