YU70LV-MD (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1986
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )ST

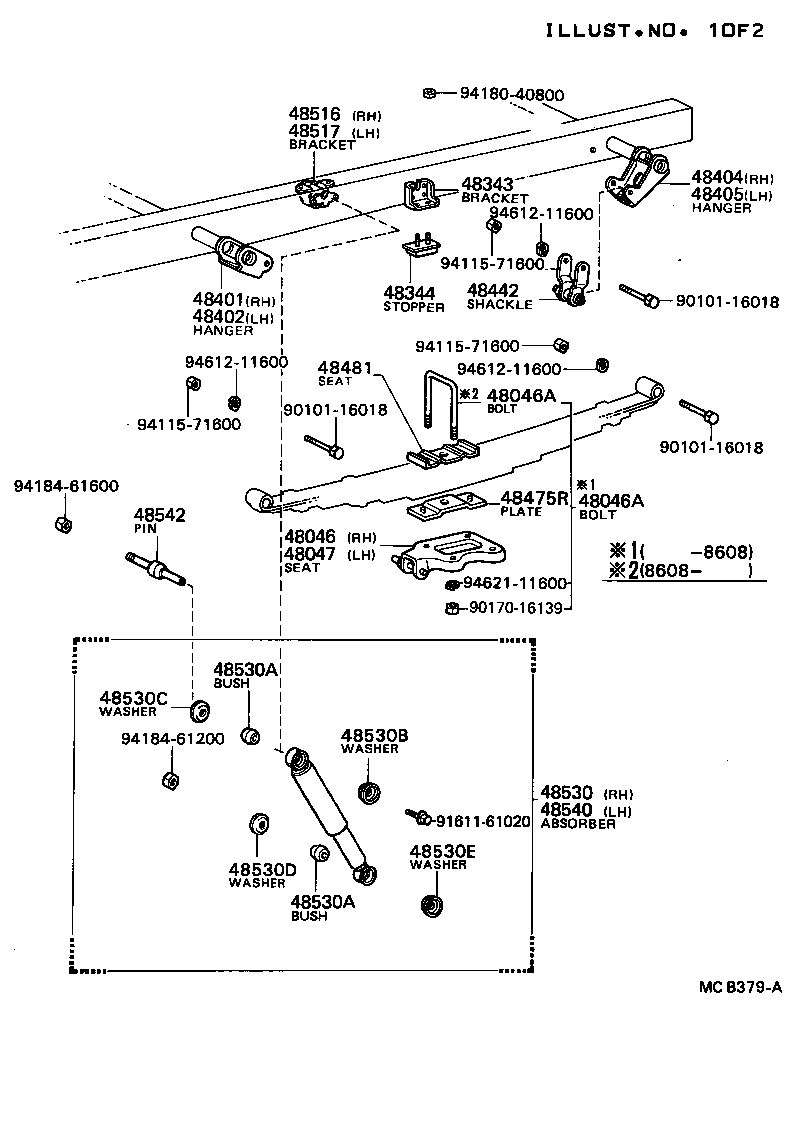

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36090 |
YU60,62,7#..ST |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-36090 |
YU60,62,7#..ST |
1 | ||
| 48343 - BRACKET, REAR AXLE CUSHION | ||||
| 48343-36040 |
YU60,70..ST |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36140 |
YU7# |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36160 |
YU60,70..ST |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36160 |
YU60,70..ST |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48414-36080 |
YU60,70..ST |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-36080 |
YU60,70..ST |
1 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36021 |
RU75,85,YU6#,7#,8# |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
RU75,85,YU6#,7#,8# W/10.5IN DIFF |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36040 |
YU60,70,80 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-36050 |
YU60,70..ST |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48516-36050 |
YU60,70..ST |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39715 |
YU60,62,7#..ST |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
RU75,85,WU9#,YU6#,7#,8# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
RU75,85,WU9#,YU6#,7#,8# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
YU60,62,7#..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
YU60,62,7#..ST |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
YU60,62,7#..ST |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RU75,85,WU9#,YU6#,7#,8# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39715 |
YU60,62,7#..ST |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-36020 |
YU60,62,7#..ST |
2 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||
| 94115-71600 | ||||
| 94180-40800 | ||||
| 94184-61200 | ||||
| 94184-61600 | ||||
| 94612-11600 | ||||
| 94621-11600 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )YU62,7#..ST
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36090 |
YU60,62,7#..ST |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-36090 |
YU60,62,7#..ST |
1 | ||
| 48343 - BRACKET, REAR AXLE CUSHION | ||||
| 48343-36040 |
YU60,70..ST |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36140 |
YU7# |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36160 |
YU60,70..ST |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36160 |
YU60,70..ST |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48414-36080 |
YU60,70..ST |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-36080 |
YU60,70..ST |
1 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36021 |
RU75,85,YU6#,7#,8# |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
RU75,85,YU6#,7#,8# W/10.5IN DIFF |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36040 |
YU60,70,80 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-36050 |
YU60,70..ST |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48516-36050 |
YU60,70..ST |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39715 |
YU60,62,7#..ST |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
RU75,85,WU9#,YU6#,7#,8# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
RU75,85,WU9#,YU6#,7#,8# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
YU60,62,7#..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
YU60,62,7#..ST |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
YU60,62,7#..ST |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RU75,85,WU9#,YU6#,7#,8# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39715 |
YU60,62,7#..ST |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-36020 |
YU60,62,7#..ST |
2 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||
| 94115-71600 | ||||
| 94180-40800 | ||||
| 94184-61200 | ||||
| 94184-61600 | ||||
| 94612-11600 | ||||
| 94621-11600 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16004 |
YU7# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36750 |
YU7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36750 |
YU7# |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
WU9#,YU7#;YU60,62..ST |
8 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60172 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
YU7# |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
